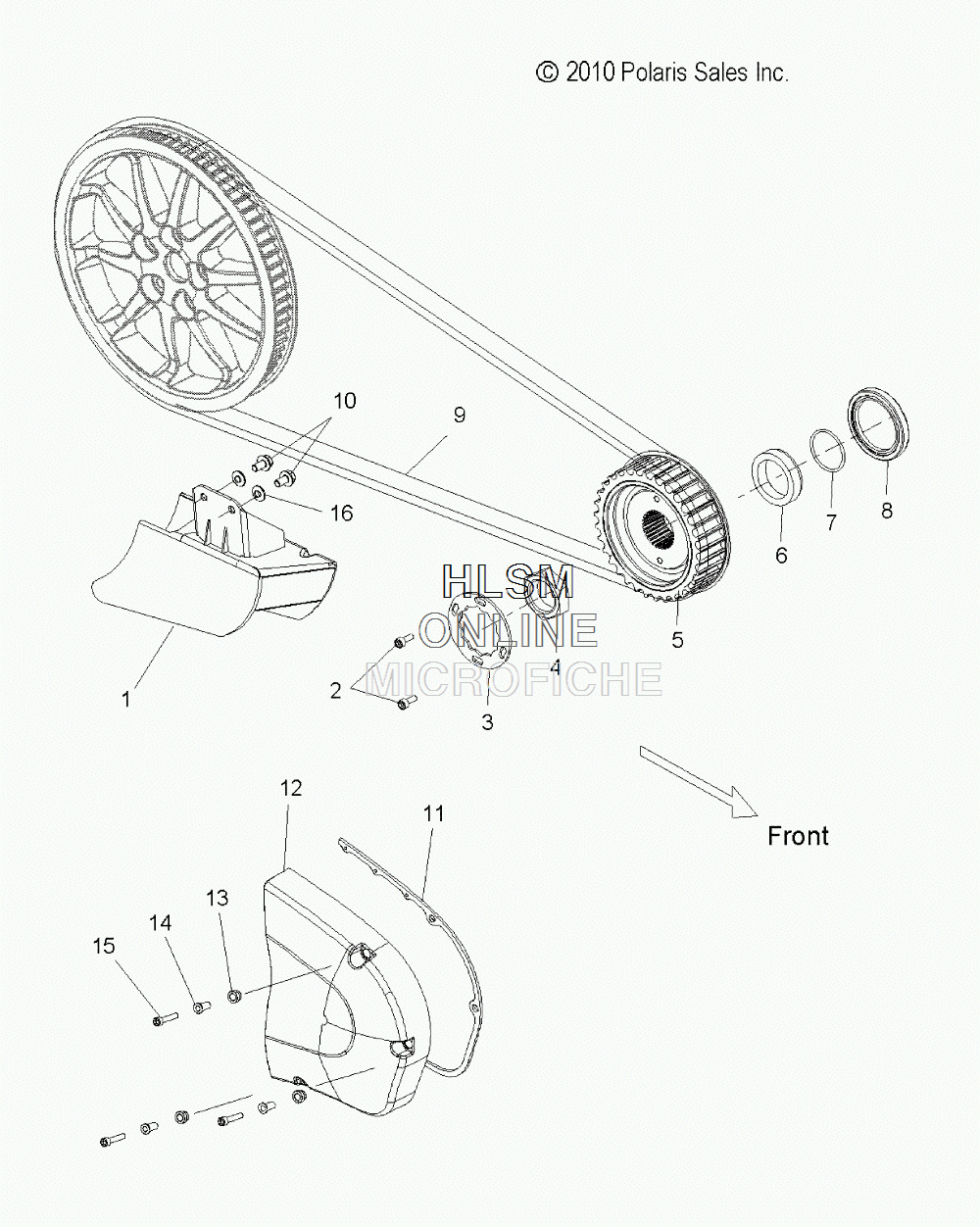

DRIVE SPROCKET W/ BELT- COVER- AND GUARD для Polaris VISION TOUR - 2012 года выпуска
-
№АртикулНазвание
-
15438716 GUARD, BELT, LOWERGUARD, BELT, LOWER
-
27517272 SCREWSCREW
-
35244114 WASHER, LOCKWASHER, LOCK
-
47547311 NUT, HEX, THINNUT, HEX, THIN
-
53234580 SPROCKET, DRIVE, 33TSPROCKET, DRIVE, 33T
-
65137737 SPACER, DRIVE SPROCKETSPACER, DRIVE SPROCKET
-
75413767 O-RINGO-RING
-
83610118 SEAL, LIPSEAL, LIP
-
93211107 BELT, DRIVE, 154T, 28MMBELT, DRIVE, 154T, 28MM
-
107518773 SCREWSCREW
-
115413347 GASKET, COVER, SPROCKETGASKET, COVER, SPROCKET
-
125632406-156 COVER, OUTPUT SPROCKET, 180, CHROMECOVER, OUTPUT SPROCKET, 180, CHROME
-
121203727 ASM., SPROCKET, COVER, RDM, INTL (SEE DRIVE TRAIN, REVERSE)ASM., SPROCKET, COVER, RDM, INTL (SEE DRIVE TRAIN, REVERSE)
-
135412070 ISOLATOR, COVERISOLATOR, COVER
-
147661185 SPACERSPACER
-
157518348 SCREWSCREW
-
165134083 SLEEVE, TURN SIGNAL MOUNTSLEEVE, TURN SIGNAL MOUNT
