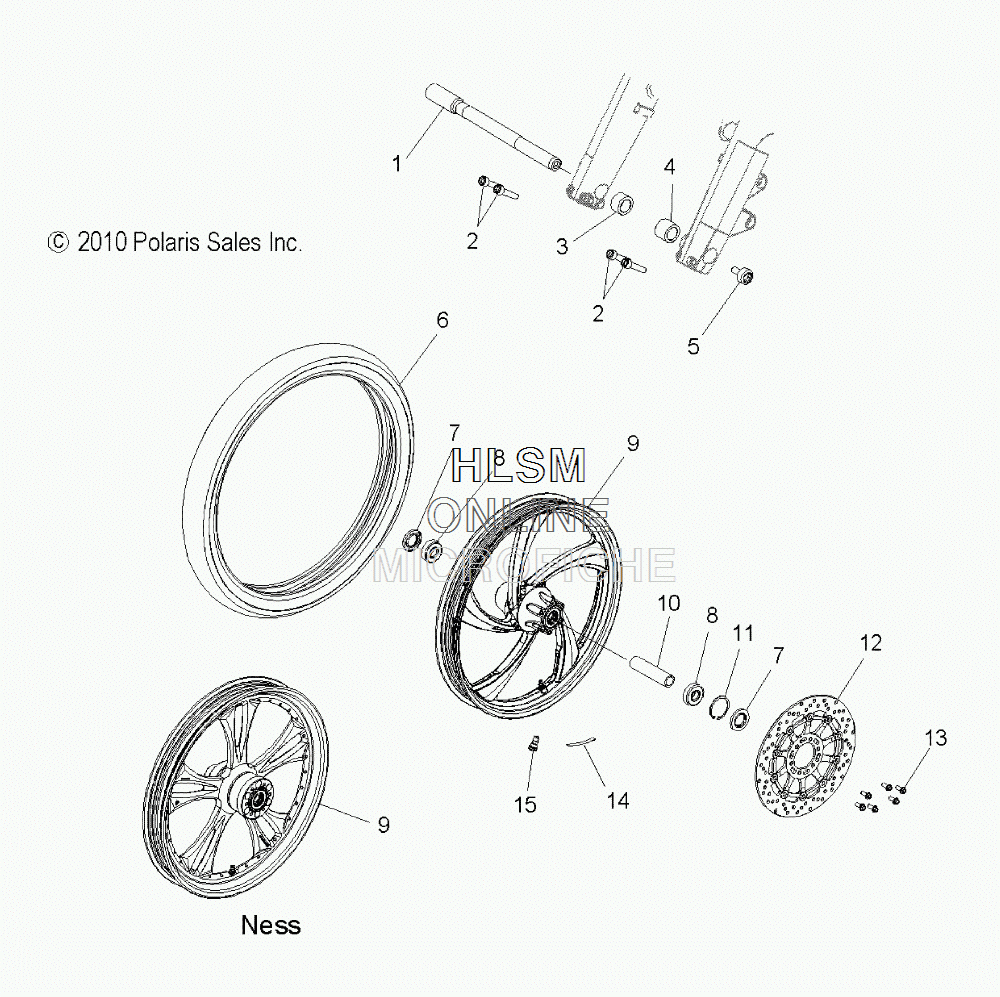

WHEELS- FRONT для Polaris VEGAS NESS [V11GC36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5137438 AXLE, FRONT
    AXLE, FRONT
  • 2
    7517517 SCREW
    SCREW
  • 3
    5631479 SPACER, BEARING (LEFT)
    SPACER, BEARING (LEFT)
  • 4
    5631481 SPACER, BEARING (LEFT)
    SPACER, BEARING (LEFT)
  • 5
    7517936 SCREW-M10 X 1.5 X 20, SHCP
    SCREW-M10 X 1.5 X 20, SHCP
  • 6
    5413925 TIRE-90/90-21, E3 BIAS PLY
    TIRE-90/90-21, E3 BIAS PLY
  • 7
    3610094 SEAL-30X52X7
    SEAL-30X52X7
  • 8
    3514405 BEARING-BALL, 20MMX52MMX15MM
    BEARING-BALL, 20MMX52MMX15MM
  • 9
    1521151-385 ASM., WHEEL, FRONT, CAST 21X2.15 (CLOUD SILVER) (INCL. 7, 8, 10, 11, 15)
    ASM., WHEEL, FRONT, CAST 21X2.15 (CLOUD SILVER) (INCL. 7, 8, 10, 11, 15)
  • 9
    1521578 ASM., WHEEL, FRONT
    ASM., WHEEL, FRONT
  • 10
    5334135 SPACER, BEARING, FRONT WHEEL, MID
    SPACER, BEARING, FRONT WHEEL, MID
  • 11
    7710526 RING, RETAINING, INT, 52X2.0
    RING, RETAINING, INT, 52X2.0
  • 12
    1911624-266 ROTOR, BRAKE, 5MM (CRUISER BLACK)
    ROTOR, BRAKE, 5MM (CRUISER BLACK)
  • 13
    7518661 SCREW-HXFLGHD, M8X25, ROTOR BOLT
    SCREW-HXFLGHD, M8X25, ROTOR BOLT
  • 14
    1521681 WEIGHT, STEEL, BALANCE, SILVER 5G
    WEIGHT, STEEL, BALANCE, SILVER 5G
  • 14
    1521682 WEIGHT, STEEL, BALANCE, BLACK 5G
    WEIGHT, STEEL, BALANCE, BLACK 5G
  • 15
    1521144 VALVE, RIM, NESS
    VALVE, RIM, NESS
