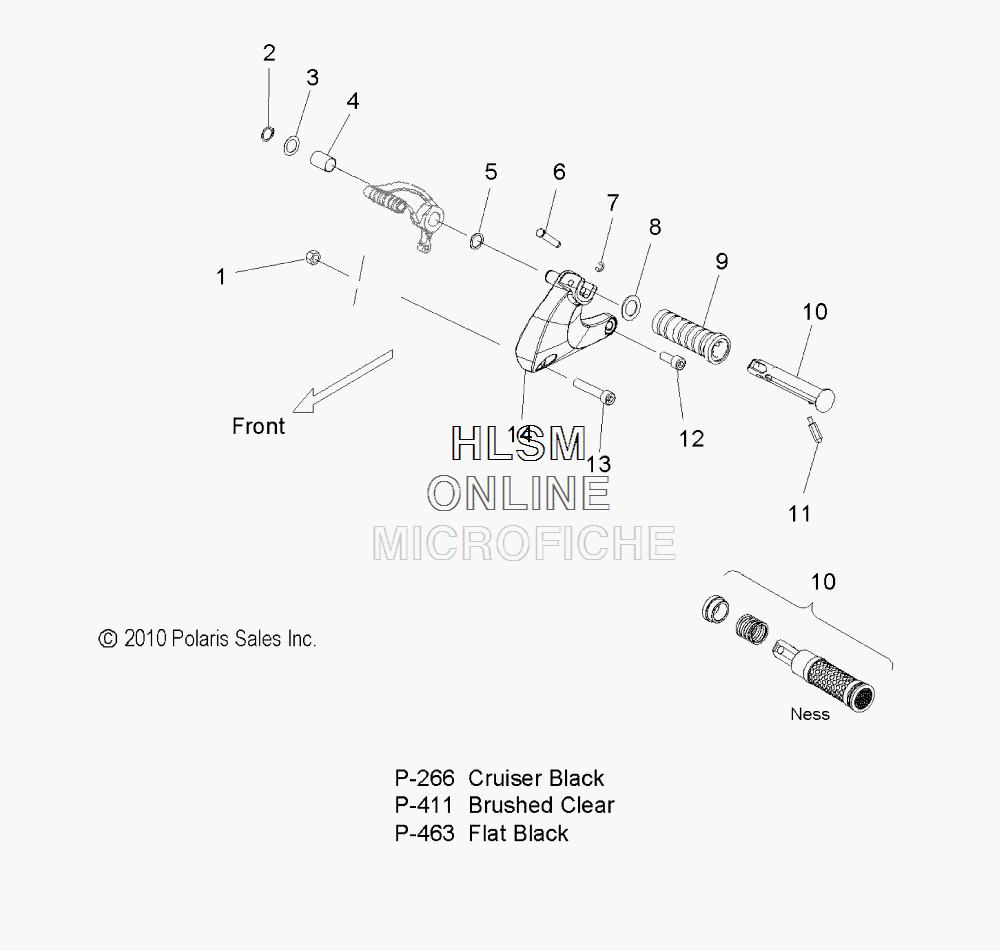

FOOTPEG AND FLOORBOARD (LEFT) для Polaris VEGAS NESS [V11GC36] - 2011 года выпуска`
-
№АртикулНазвание
-
17547039 NUTNUT
-
27710499 RING, RETAINING, EXTERNAL, 14.7X1 (FOOT PEG)RING, RETAINING, EXTERNAL, 14.7X1 (FOOT PEG)
-
37556075 WASHER, FLAT-SHIM, 25.4X.46X16.7WASHER, FLAT-SHIM, 25.4X.46X16.7
-
43514335 BEARING, SHIFT PEDALBEARING, SHIFT PEDAL
-
57556273 WASHER, WAVEWASHER, WAVE
-
67661980 PIN, PIVOTPIN, PIVOT
-
77710644 RING-RTNG, SPIRAL, EXT, SSRING-RTNG, SPIRAL, EXT, SS
-
87556274 WASHER, FOOTPEG, PIVOTWASHER, FOOTPEG, PIVOT
-
95412256 PAD, FOOTPEGPAD, FOOTPEG
-
101017685 ASM., FOOTPEG, HOLESHOT (NESS)ASM., FOOTPEG, HOLESHOT (NESS)
-
105436815 BUSHING, FOOTPEG, BILLET (NESS)BUSHING, FOOTPEG, BILLET (NESS)
-
107043249 SPRING, FOOTPEG, BILLET (NESS)SPRING, FOOTPEG, BILLET (NESS)
-
115133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
127518101 SCREW-SOCHD, M10X25SCREW-SOCHD, M10X25
-
137518146 SCREW-SOCHD, M10X55SCREW-SOCHD, M10X55
-
145136080-463 SUPPORT, FOOTPEG (FLAT BLACK) (LEFT)SUPPORT, FOOTPEG (FLAT BLACK) (LEFT)
