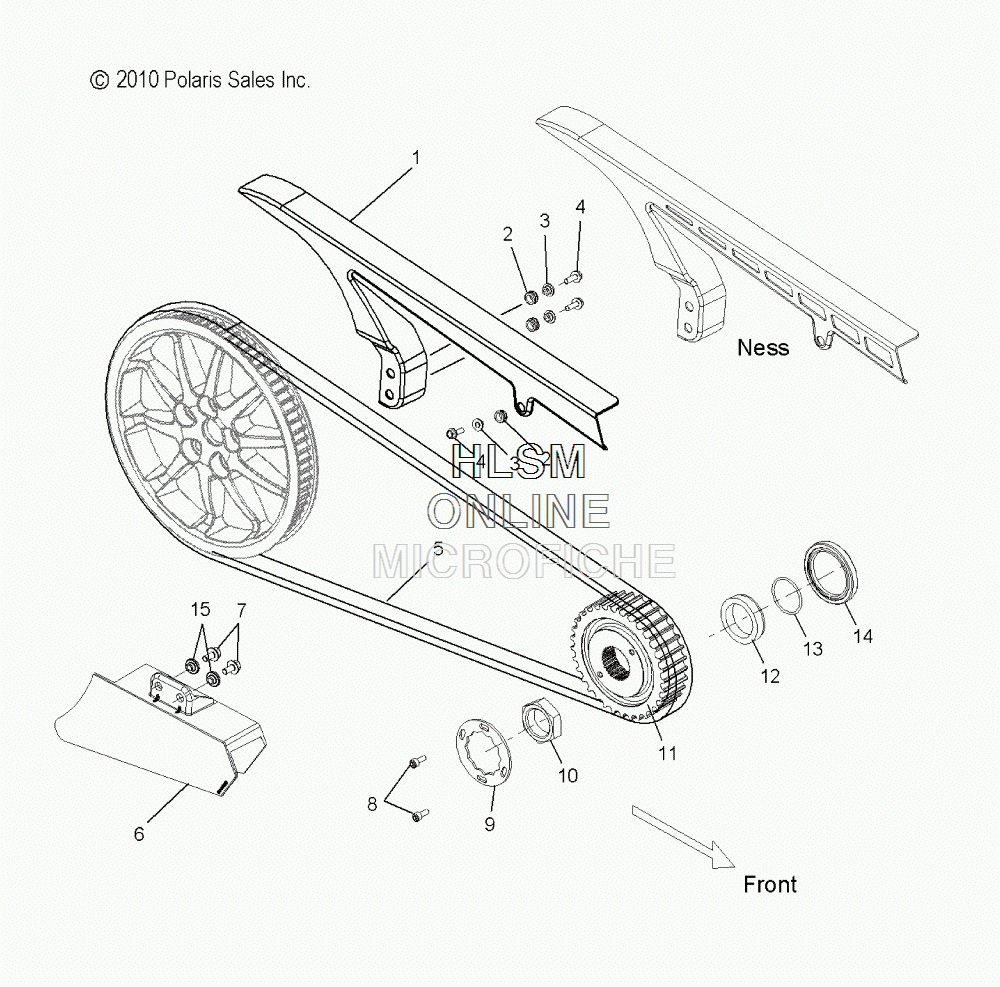

DRIVE SPROCKET AND BELT AND GUARDS для Polaris VEGAS 8-BALL [V11GB36] - 2011 года выпуска`
-
№АртикулНазвание
-
15247719-266 GUARD, BELT, UPPER (CRUISER BLACK)GUARD, BELT, UPPER (CRUISER BLACK)
-
25412265 GROMMETGROMMET
-
35134082 SLEEVE-SHOULDERED, M6SLEEVE-SHOULDERED, M6
-
47518141 SCREW-HXFLGHD, M6X20, ZPCSCREW-HXFLGHD, M6X20, ZPC
-
53211102 BELT, DRIVE, 28MM, HTDBELT, DRIVE, 28MM, HTD
-
65438684 GUARD, BELTGUARD, BELT
-
77518591 SCREW-HXFLGHD, M6X16, 0600086SCREW-HXFLGHD, M6X16, 0600086
-
87517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
95244114 WASHER, LOCKWASHER, LOCK
-
107547311 NUT, HEX, THINNUT, HEX, THIN
-
113234580 SPROCKET, DRIVE, 33TSPROCKET, DRIVE, 33T
-
125136989 SPACER, SPROCKETSPACER, SPROCKET
-
135413767 O-RING, 39.34 X 2.62, 0600083O-RING, 39.34 X 2.62, 0600083
-
143610118 SEAL, LIPSEAL, LIP
-
155134083 SLEEVESLEEVE
