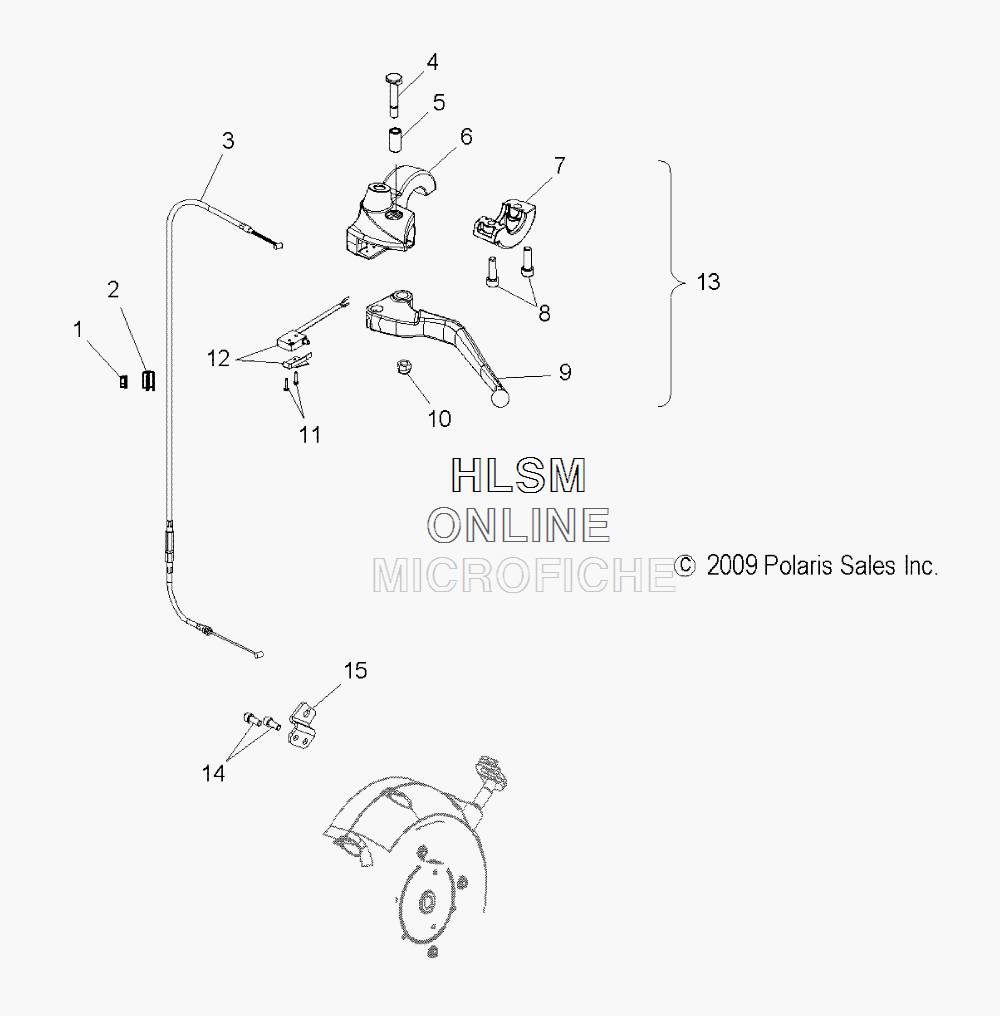

CLUTCH LEVER для Polaris VEGAS 8-BALL [V11GB36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7710495 NUT
    NUT
  • 2
    7080998 CLAMP, VINYL COATED
    CLAMP, VINYL COATED
  • 3
    7081600 CABLE-CLUTCH, MANUAL, W-CLIPS
    CABLE-CLUTCH, MANUAL, W-CLIPS
  • 4
    5135715 PIN, CLUTCH LEVER, SCREW
    PIN, CLUTCH LEVER, SCREW
  • 5
    5335070 BUSHING, CLUTCH
    BUSHING, CLUTCH
  • 6
    5135585-266 BRACKET, CLUTCH, MIRROR (CRUISER BLACK)
    BRACKET, CLUTCH, MIRROR (CRUISER BLACK)
  • 7
    5135587-266 CAP, CLUTCH, MIRROR (CRUISER BLACK)
    CAP, CLUTCH, MIRROR (CRUISER BLACK)
  • 8
    7517305 SCREW, SOCHD, M6X20
    SCREW, SOCHD, M6X20
  • 9
    5135586-410 LEVER, HAND, CLUTCH (POLISHED/CLEAR)
    LEVER, HAND, CLUTCH (POLISHED/CLEAR)
  • 10
    7547106 NUT, NYLOK M6
    NUT, NYLOK M6
  • 11
    7518783 SCREW- CLUTCH LEVER SWITCH, M2X10
    SCREW- CLUTCH LEVER SWITCH, M2X10
  • 12
    4011852 SWITCH-CLUTCH LEVER
    SWITCH-CLUTCH LEVER
  • 13
    1322603-266 ASM., CLUTCH BRACKET, LEVER (CRUISER BLACK) (INCL. 4-12)
    ASM., CLUTCH BRACKET, LEVER (CRUISER BLACK) (INCL. 4-12)
  • 13
    2203661-266 KIT, HARDWARE, CLUTCH, M/C (CRUISER BLACK) (INCL. 4, 5, 10, 11)
    KIT, HARDWARE, CLUTCH, M/C (CRUISER BLACK) (INCL. 4, 5, 10, 11)
  • 14
    7517272 SCREW, SOCHD, M6X15
    SCREW, SOCHD, M6X15
  • 15
    5251713 BRACKET, CABLE, CLUTCH
    BRACKET, CABLE, CLUTCH
