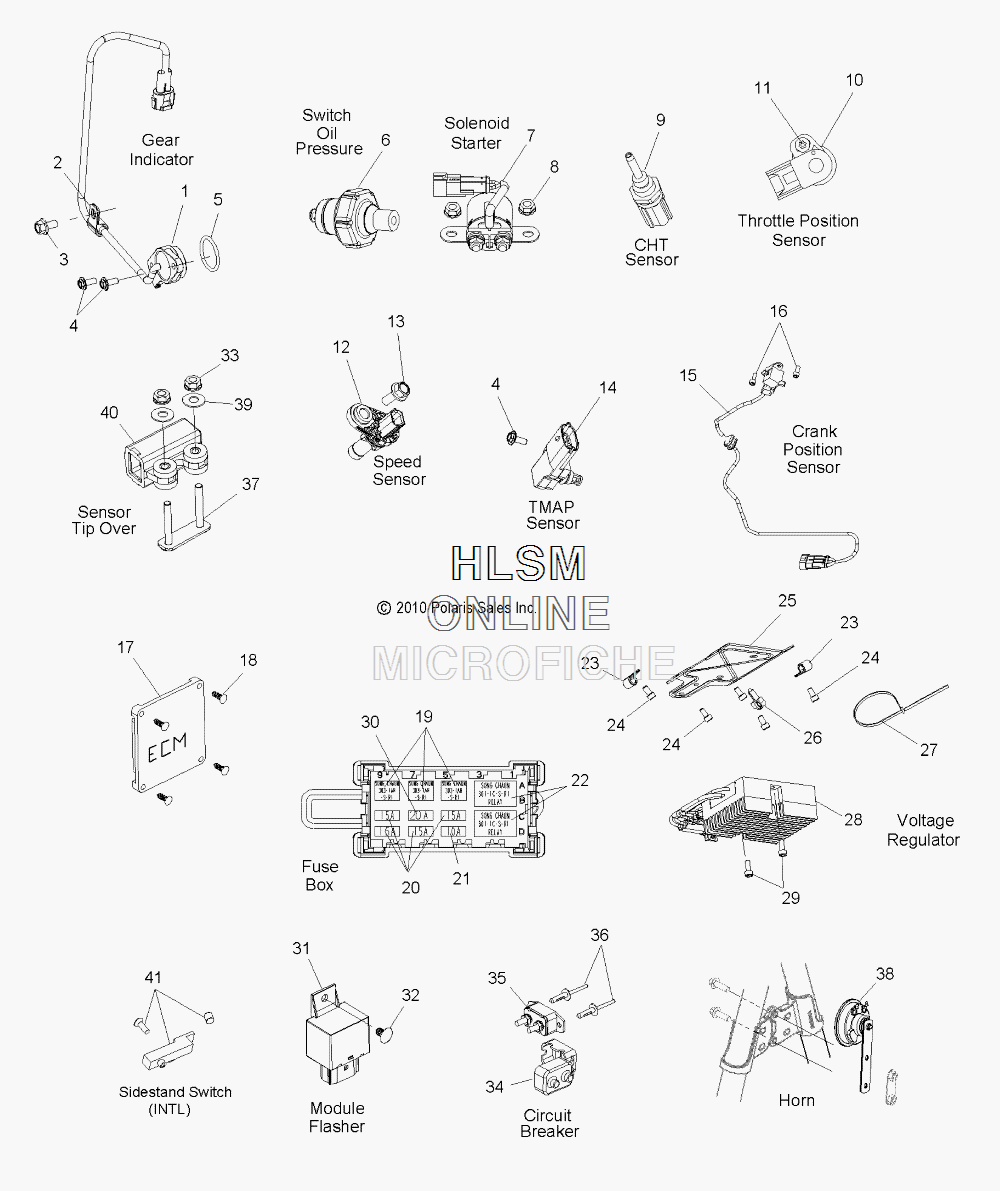

SWITCHES AND SENSORS AND COMPONENTS для Polaris HAMMER [V11HA36] - 2011 года выпуска`
-
№АртикулНазвание
-
14010976 SWITCH, GEAR INDICATORSWITCH, GEAR INDICATOR
-
27080983 CLAMPCLAMP
-
37517257 SCREW, HXFLGHD, M6X12SCREW, HXFLGHD, M6X12
-
47518338 SCREW-FLANGE, HD, M5X12, 06000086SCREW-FLANGE, HD, M5X12, 06000086
-
55412530 O-RING-26.65X2.62, 0600083O-RING-26.65X2.62, 0600083
-
64012668 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
74012001 SOLENOID, STARTERSOLENOID, STARTER
-
87710495 NUTNUT
-
94012971 SENSOR, CYLINDER HEAD TEMPSENSOR, CYLINDER HEAD TEMP
-
104012101 SENSOR, THROTTLE POSITION 45MMSENSOR, THROTTLE POSITION 45MM
-
117518901 SCREWSCREW
-
124011884 SENSOR, VEHICLE SPEEDSENSOR, VEHICLE SPEED
-
137517750 SCREW, HXFLGHD, M6X20SCREW, HXFLGHD, M6X20
-
142410422 SENSOR, T-MAPSENSOR, T-MAP
-
154012280 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
167518045 SCREW-M5X.80X8-HX/FL-Y/DSCREW-M5X.80X8-HX/FL-Y/D
-
174012388 PCM, SERVICEPCM, SERVICE
-
187670141 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
194011283 RELAY, SERIES 303RELAY, SERIES 303
-
202410280 FUSE, 15 AMP.FUSE, 15 AMP.
-
212434016 FUSE, 10 AMP.FUSE, 10 AMP.
-
224011284 RELAY, SERIES 301RELAY, SERIES 301
-
237080983 CLAMPCLAMP
-
247517739 SCREW, SOCHD, M6X12SCREW, SOCHD, M6X12
-
255248079-408 BRACKET, CONNECTOR, ZINC/BLACKBRACKET, CONNECTOR, ZINC/BLACK
-
267670102 CLIPCLIP
-
277080138 CABLE TIECABLE TIE
-
284012718 REGULATOR, VOLT (BLACK)REGULATOR, VOLT (BLACK)
-
297517272 SCREW, SOCHD, M6X15SCREW, SOCHD, M6X15
-
302434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
314012103 MODULE, FLASHER, 10WMODULE, FLASHER, 10W
-
327670078 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
337710495 NUTNUT
-
344010778 BOOT-CIRCUT BREAKER (RED)BOOT-CIRCUT BREAKER (RED)
-
352410332 BREAKER-CIRCUIT, 40ABREAKER-CIRCUIT, 40A
-
357541931 NUT, HEX, S.S.NUT, HEX, S.S.
-
367081040 RIVET-PLASTIC, R-LOCK, .197 DIARIVET-PLASTIC, R-LOCK, .197 DIA
-
371016624 PLATE, STUD, M4PLATE, STUD, M4
-
384012448 HORN-SEGER, DISK, 335HZ, 77MM DIAHORN-SEGER, DISK, 335HZ, 77MM DIA
-
397556477 WASHER, FLAT, 4.3X14X0.8, 0600090WASHER, FLAT, 4.3X14X0.8, 0600090
-
404011296 SENSOR-TIP OVER, 45 DEGREESENSOR-TIP OVER, 45 DEGREE
-
411017988 ASM., SIDE STAND SENSORASM., SIDE STAND SENSOR
-
414013130 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
414013131 MAGNET, SIDE STANDMAGNET, SIDE STAND
-
417519276 SCREW-FLHD-M4X0.7X12MM, TORXSCREW-FLHD-M4X0.7X12MM, TORX
