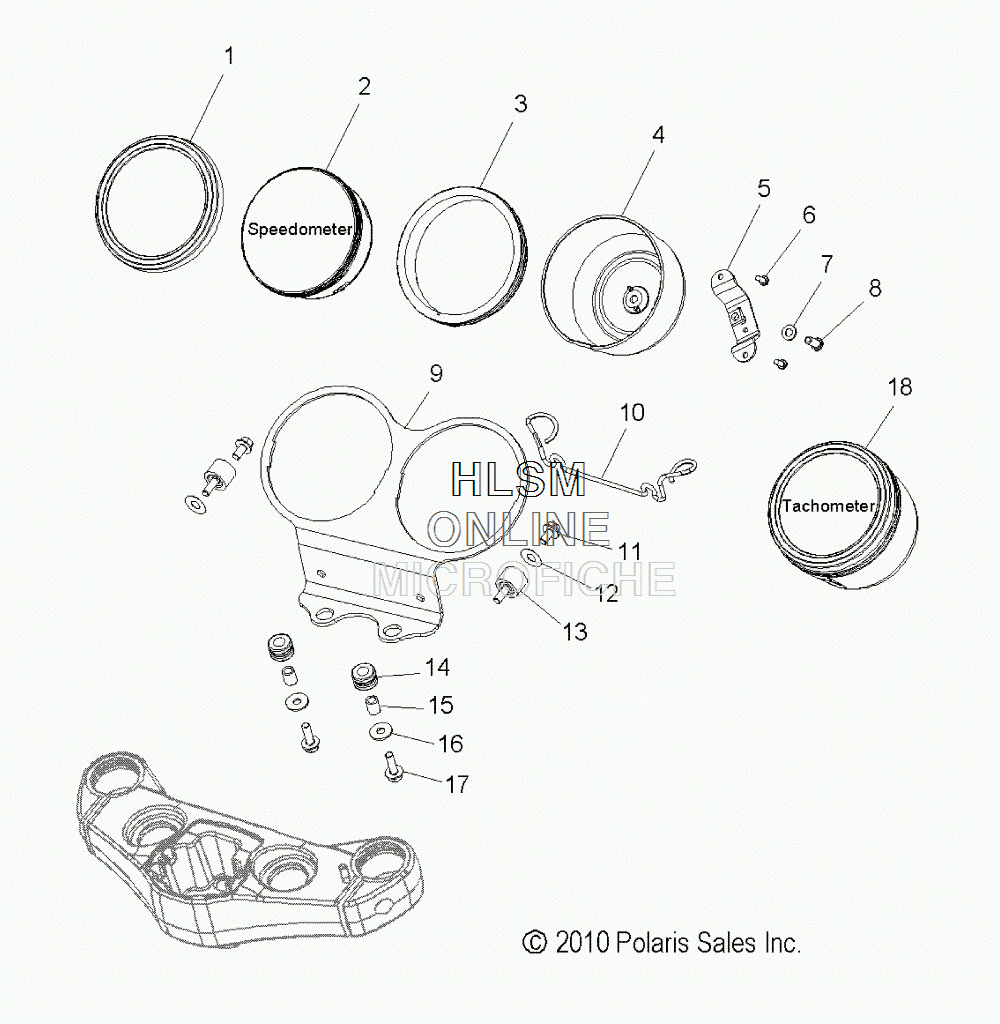

GAUGES AND INDICATORS для Polaris HAMMER [V11HA36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    5438428-156 COVER, SPEEDOMETER BEVEL (CHROME)
    COVER, SPEEDOMETER BEVEL (CHROME)
  • 2
    3280541 SPEEDOMETER
    SPEEDOMETER
  • 3
    5438389 GROMMET, GAUGE
    GROMMET, GAUGE
  • 4
    5438621-156 COVER, SPEEDOMETER (CHROME)
    COVER, SPEEDOMETER (CHROME)
  • 5
    1016677 BRACKET, GAUGE CUP
    BRACKET, GAUGE CUP
  • 6
    7518864 SCREW-TXPH-M4X1.79X10 8.8 ZY3
    SCREW-TXPH-M4X1.79X10 8.8 ZY3
  • 7
    7556088 WASHER, FLAT
    WASHER, FLAT
  • 8
    7519025 SCREW-SH-M6X1.0X16 A2 EP D204
    SCREW-SH-M6X1.0X16 A2 EP D204
  • 9
    5254044-156 BRACKET, SPEEDOMETER MOUNT (CHROME)
    BRACKET, SPEEDOMETER MOUNT (CHROME)
  • 10
    5336359-266 LOOM, WIRE, BAR CABLE, DUEL, XL (BLACK)
    LOOM, WIRE, BAR CABLE, DUEL, XL (BLACK)
  • 11
    7517704 SCREW
    SCREW
  • 12
    7556379 WASHER-M8X19X5, 600 GRIT, ADHESIV
    WASHER-M8X19X5, 600 GRIT, ADHESIV
  • 13
    5412297 MOUNT-ISOLATOR, 60 DURO, M6
    MOUNT-ISOLATOR, 60 DURO, M6
  • 14
    5412201 GROMMET-.38"IDX.75"ODX.5"THK
    GROMMET-.38"IDX.75"ODX.5"THK
  • 15
    5133550 SLEEVE-.38"ODX.25"IDX.48"L
    SLEEVE-.38"ODX.25"IDX.48"L
  • 16
    7556064 WASHER
    WASHER
  • 17
    7518141 SCREW-HXFLGHD, M6X20, ZPC
    SCREW-HXFLGHD, M6X20, ZPC
  • 18
    3280542 ASM., CLUSTER, TACH, CPI
    ASM., CLUSTER, TACH, CPI
