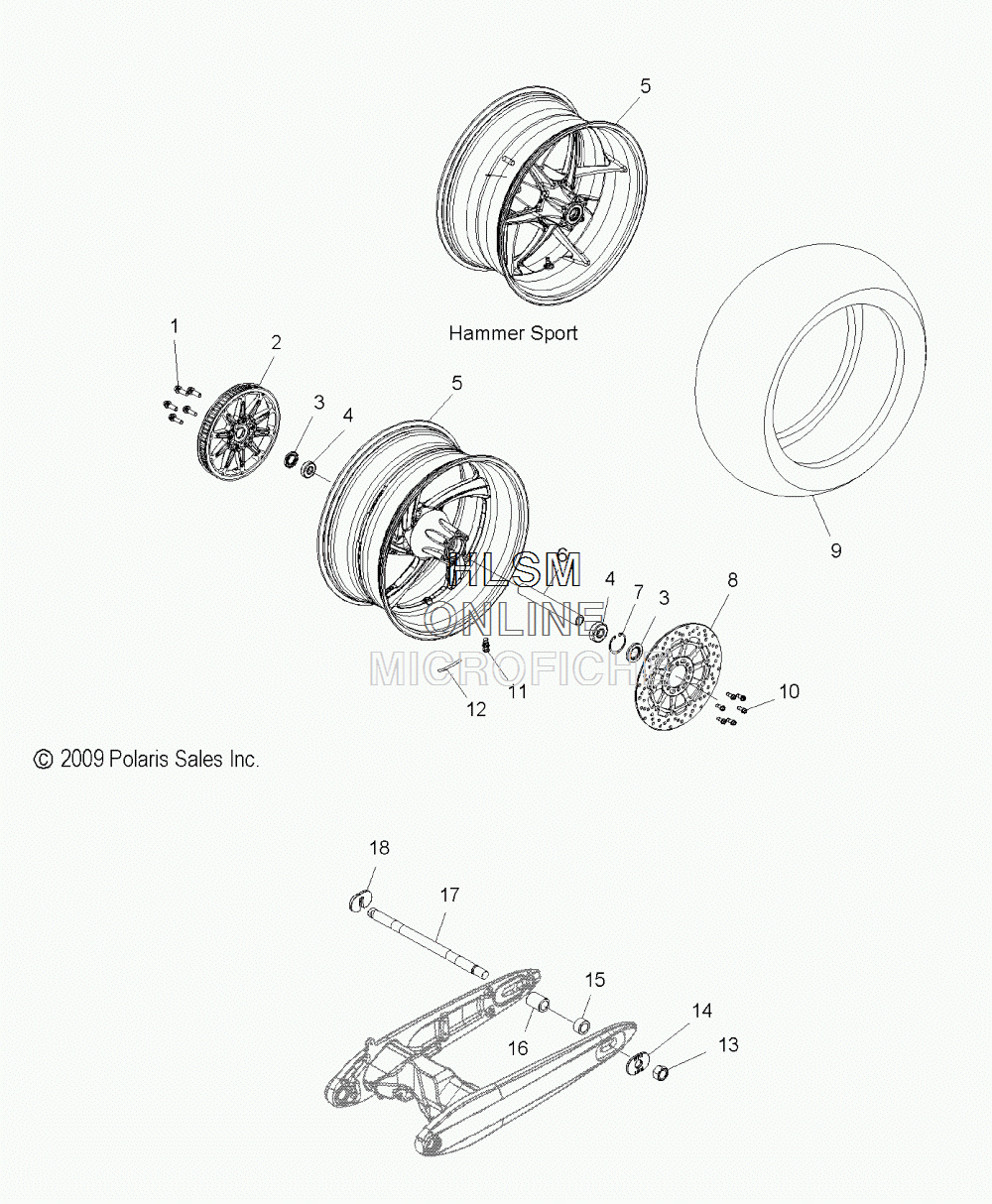

WHEELS- REAR для Polaris HAMMER S [V11HS36] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7518878 SCREW-HXFLGHD, M12X40, SPRKT BOLT
    SCREW-HXFLGHD, M12X40, SPRKT BOLT
  • 2
    1332399-521 ASM., SPROCKET, DRIVEN, 70T (BLACK ENGINE WRINKLE)
    ASM., SPROCKET, DRIVEN, 70T (BLACK ENGINE WRINKLE)
  • 3
    3610094 SEAL-30X52X7
    SEAL-30X52X7
  • 4
    3514405 BEARING-BALL, 20MMX52MMX15MM
    BEARING-BALL, 20MMX52MMX15MM
  • 5
    1521319-266 ASM., WHEEL, REAR, CAST (BLACK) (INCL. 3-8, 11, 12) (SPORT)
    ASM., WHEEL, REAR, CAST (BLACK) (INCL. 3-8, 11, 12) (SPORT)
  • 6
    5335683 SPACER, BEARING
    SPACER, BEARING
  • 7
    7710526 RING, RETAINING, INT, 52X2.0
    RING, RETAINING, INT, 52X2.0
  • 8
    1911624-266 ROTOR, BRAKE (BLACK)
    ROTOR, BRAKE (BLACK)
  • 9
    5412522 TIRE-REAR 250/40R18__DA0
    TIRE-REAR 250/40R18__DA0
  • 10
    7518661 SCREW-HXFLGHD, M8X25, ROTOR BOLT
    SCREW-HXFLGHD, M8X25, ROTOR BOLT
  • 11
    1521312 VALVE, RIM
    VALVE, RIM
  • 12
    1521682 WEIGHT, BALANCE 5G (BLACK)
    WEIGHT, BALANCE 5G (BLACK)
  • 13
    7547226 NUT, HEX, FUJILOK, M18X1.5
    NUT, HEX, FUJILOK, M18X1.5
  • 14
    5248452-236 WASHER, INDICATOR, AXLE, ZNC
    WASHER, INDICATOR, AXLE, ZNC
  • 15
    5631479 SPACER (LEFT)
    SPACER (LEFT)
  • 16
    5631581 SPACER (RIGHT)
    SPACER (RIGHT)
  • 17
    5137445 AXLE, REAR, 250
    AXLE, REAR, 250
  • 18
    5248599 RETAINER, AXLE, REAR
    RETAINER, AXLE, REAR
