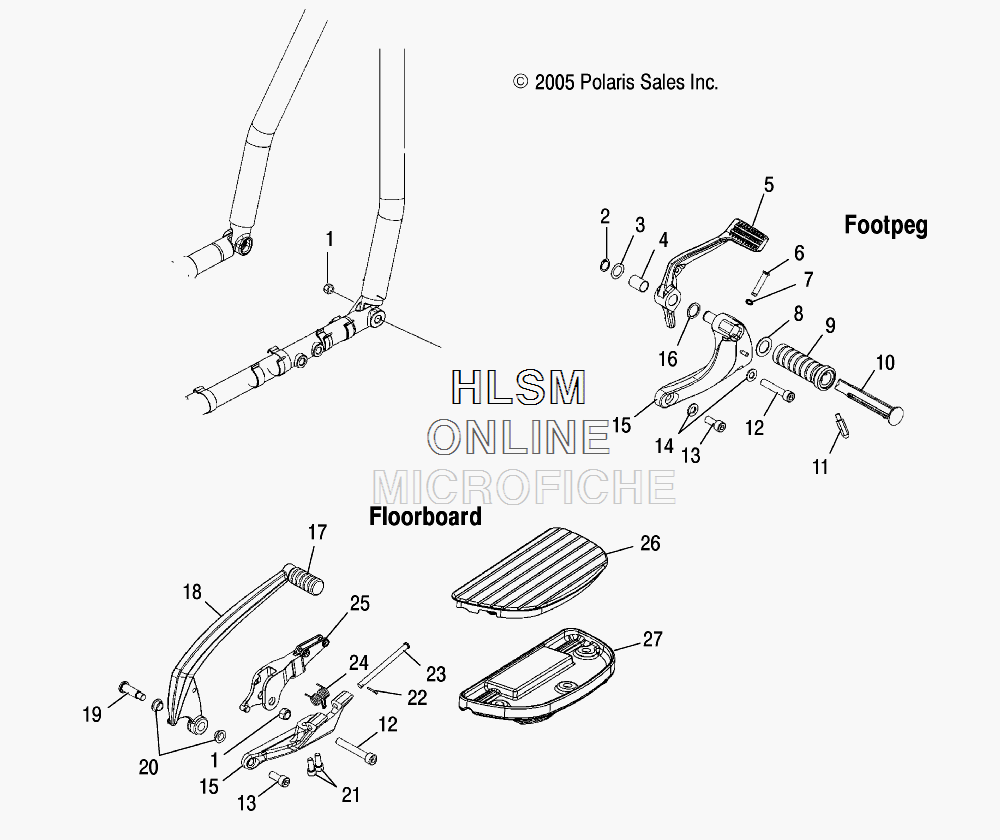

FOOTPEG- R.H./FLOORBOARD/BRAKE для Polaris VICTORY VEGAS (49 STATE) [V06GB26DA] - 2006 года выпуска`
-
№АртикулНазвание
-
17547039 NUT (QTY. 2 ON FLOORBOARD)NUT (QTY. 2 ON FLOORBOARD)
-
27710499 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
37556075 WASHER, FLATWASHER, FLAT
-
43514490 BUSHING, SHIFT PEDALBUSHING, SHIFT PEDAL
-
55134683-385 PEDAL, BRAKE LEVER, SILVERPEDAL, BRAKE LEVER, SILVER
-
67661167 PIN, PIVOTPIN, PIVOT
-
77710545 RING, RETAININGRING, RETAINING
-
87556241 WASHER, FLATWASHER, FLAT
-
95412256 PAD, FOOTPEGPAD, FOOTPEG
-
105133526-411 FOOTPEG, CC, RIGHT HANDFOOTPEG, CC, RIGHT HAND
-
115133539 FEELER, FOOTPEGFEELER, FOOTPEG
-
127518146 SCREWSCREW
-
137518101 SCREWSCREW
-
147556234 WASHER, FLATWASHER, FLAT
-
155134681-385 SUPPORT, FOOTPEG, SILVER, RIGHT HANDSUPPORT, FOOTPEG, SILVER, RIGHT HAND
-
155134623-385 SUPPORT, FLOORBOARD, RIGHT HANDSUPPORT, FLOORBOARD, RIGHT HAND
-
167556273 WASHER, WAVEWASHER, WAVE
-
175412256 PAD, FOOTPEGPAD, FOOTPEG
-
185134178-410 PEDAL, BRAKE LEVERPEDAL, BRAKE LEVER
-
197517715 SCREW, BRAKE PIVOTSCREW, BRAKE PIVOT
-
205020904 BUSHING, PEDALBUSHING, PEDAL
-
217517410 SCREWSCREW
-
227661094 PIN, COTTERPIN, COTTER
-
237661095 PIN, FLOORBOARD SUPPORTPIN, FLOORBOARD SUPPORT
-
247041623 SPRING, FLOORBOARD SUPPORTSPRING, FLOORBOARD SUPPORT
-
255134199-385 SUPPORT, BRAKE PEDALSUPPORT, BRAKE PEDAL
-
265412456 PAD, FLOORBOARDPAD, FLOORBOARD
-
275134061-425 FLOORBOARD, DRIVER, BURFLOORBOARD, DRIVER, BUR
