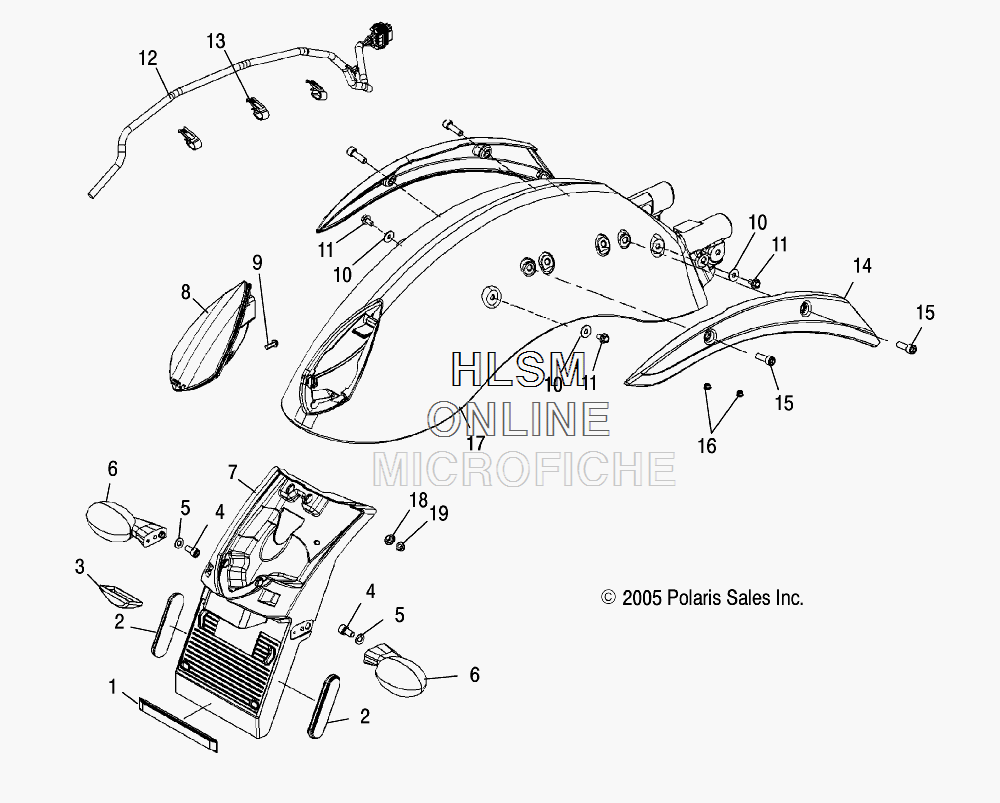

FENDER- REAR AND TAILLIGHT для Polaris VICTORY VEGAS (49 STATE) [V06GB26DA] - 2006 года выпуска
-
№АртикулНазвание
-
12670070 ASM., REFLECTOR, REDASM., REFLECTOR, RED
-
25434624 REFLECTOR, REDREFLECTOR, RED
-
35132233 HOUSING, LICENSE PLATE LIGHTHOUSING, LICENSE PLATE LIGHT
-
47517405 SCREWSCREW
-
57556121 WASHER, FLATWASHER, FLAT
-
62410439 SIGNAL, INC, REAR, LEFT HANDSIGNAL, INC, REAR, LEFT HAND
-
62410440 SIGNAL, INC, REAR, RIGHT HANDSIGNAL, INC, REAR, RIGHT HAND
-
64010742 BULB, SINGLE FILAMENT, 10WBULB, SINGLE FILAMENT, 10W
-
75435514 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
82410470 TAILLIGHT, LEDTAILLIGHT, LED
-
97518275 SCREWSCREW
-
107556064 WASHER, FLATWASHER, FLAT
-
117517704 SCREWSCREW
-
122410473 HARNESS, REARHARNESS, REAR
-
137080737 CLIP, ELECTRICALCLIP, ELECTRICAL
-
145631635-156 COVER, FRAME, RAIL, LEFT HAND, CHROMECOVER, FRAME, RAIL, LEFT HAND, CHROME
-
145631636-156 COVER, FRAME, RAIL, RIGHT HAND, CHROMECOVER, FRAME, RAIL, RIGHT HAND, CHROME
-
145631635-266 COVER, FRAME, RAIL, LEFT HAND, BLACKCOVER, FRAME, RAIL, LEFT HAND, BLACK
-
145631636-266 COVER, FRAME, RAIL, RIGHT HAND, BLACKCOVER, FRAME, RAIL, RIGHT HAND, BLACK
-
157518084 SCREWSCREW
-
167671178 PLUG, FENDER, REARPLUG, FENDER, REAR
-
171014064-266 FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
171014064-293 FENDER, REAR (INDY RED)FENDER, REAR (INDY RED)
-
171014064-1220 FENDER, REAR (GRAPHITE/T. SILVER)FENDER, REAR (GRAPHITE/T. SILVER)
-
171014064-1221 FENDER, REAR (YELLOW/T. SILVER)FENDER, REAR (YELLOW/T. SILVER)
-
171014064-1222 FENDER, REAR (NUC/FLM)FENDER, REAR (NUC/FLM)
-
171014064-1231 FENDER, REAR (SS BLUE)FENDER, REAR (SS BLUE)
-
171014064-1199 FENDER, REAR (BLACK/STP)FENDER, REAR (BLACK/STP)
-
185134082 SLEEVE, SHOULDERED, M6SLEEVE, SHOULDERED, M6
-
197710495 NUTNUT
