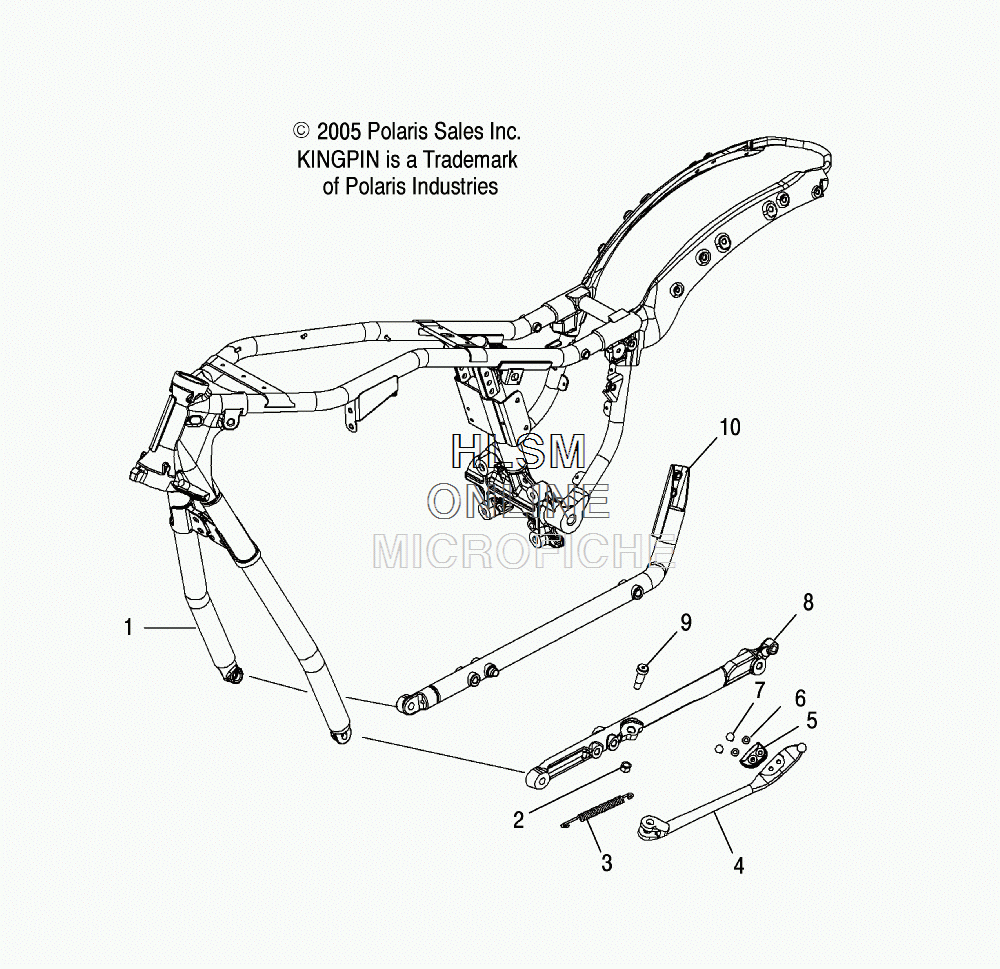

FRAME- MAIN для Polaris KINGPIN (CALIFORNIA) [V06CB26LA] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1014852-266 FRAME, MAIN (BLACK)
    FRAME, MAIN (BLACK)
  • 1
    1014852-385 FRAME, MAIN (SILVER)
    FRAME, MAIN (SILVER)
  • 2
    7547039 NUT
    NUT
  • 3
    7043056 SPRING, SIDE STAND
    SPRING, SIDE STAND
  • 4
    5134544-067 STAND, SIDE (BLACK) (INCL. 2,5-7,9)
    STAND, SIDE (BLACK) (INCL. 2,5-7,9)
  • 4
    5134544-385 STAND, SIDE (SILVER) (INCL. 2,5-7,9)
    STAND, SIDE (SILVER) (INCL. 2,5-7,9)
  • 5
    5412662 PAD, SIDE STAND
    PAD, SIDE STAND
  • 6
    7556121 WASHER, FLAT
    WASHER, FLAT
  • 7
    7661064 RIVET
    RIVET
  • 8
    5134365-266 SUPPORT, CRADLE (BLACK)
    SUPPORT, CRADLE (BLACK)
  • 8
    5134365-385 SUPPORT, CRADLE (SILVER)
    SUPPORT, CRADLE (SILVER)
  • 9
    7517404 SCREW
    SCREW
  • 10
    1014851-266 CRADLE, RIGHT HAND (BLACK)
    CRADLE, RIGHT HAND (BLACK)
  • 10
    1014851-385 CRADLE, RIGHT HAND (SILVER)
    CRADLE, RIGHT HAND (SILVER)
