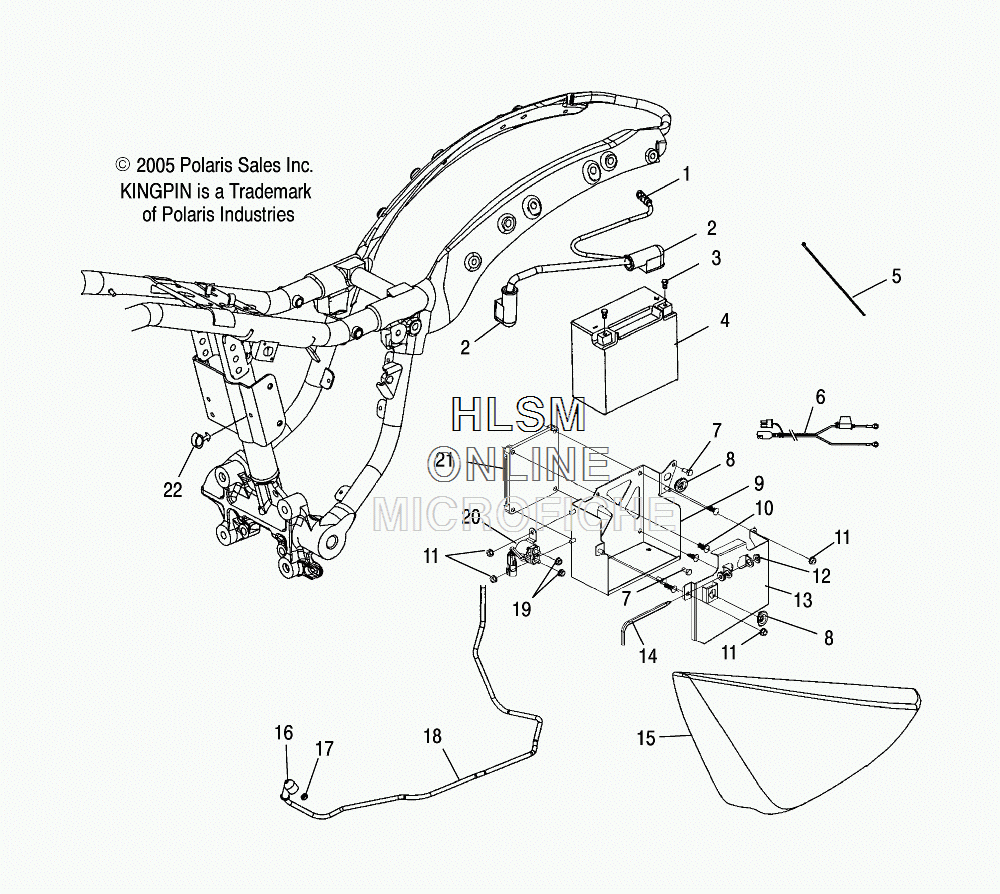

ECM/BATTERY BOX/SIDE COVER- LH для Polaris KINGPIN (CALIFORNIA) [V06CB26LA] - 2006 года выпуска
-
№АртикулНазвание
-
12461214 CABLE, BATTERY, POSITIVECABLE, BATTERY, POSITIVE
-
25411570 BOOT, BATTERY CABLE, RED POSITIVEBOOT, BATTERY CABLE, RED POSITIVE
-
32201357 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
44011374 BATTERYBATTERY
-
57080138 STRAP (8 INCH)STRAP (8 INCH)
-
62461006 HARNESS, CHARGINGHARNESS, CHARGING
-
77517438 SCREWSCREW
-
85433833 GROMMET, SIDE COVERGROMMET, SIDE COVER
-
91014477-067 BOX, BATTERYBOX, BATTERY
-
95810290 PAD, BATTERYPAD, BATTERY
-
107670141 CLIP, PLASTICCLIP, PLASTIC
-
117710495 NUTNUT
-
125412322 GROMMETGROMMET
-
131014512 COVER, BATTERYCOVER, BATTERY
-
145334438 WRENCH, CRUISER, PHILLIPSWRENCH, CRUISER, PHILLIPS
-
155434595-266 COVER, SIDE, LEFT HAND (BLACK)COVER, SIDE, LEFT HAND (BLACK)
-
155434595-293 COVER, SIDE, LEFT HAND (INDY RED)COVER, SIDE, LEFT HAND (INDY RED)
-
155434595-505 COVER, SIDE, LEFT HAND (S BEIGE)COVER, SIDE, LEFT HAND (S BEIGE)
-
155434595-445 COVER, SIDE, LEFT HAND (TSLV)COVER, SIDE, LEFT HAND (TSLV)
-
155434595-1231 COVER, SIDE, LEFT HAND (SS BLUE)COVER, SIDE, LEFT HAND (SS BLUE)
-
165412343 BOOT, TERMINAL INSULATOR, BLACKBOOT, TERMINAL INSULATOR, BLACK
-
177547091 NUT, FLEXLOCNUT, FLEXLOC
-
182461106 CABLE, STARTERCABLE, STARTER
-
197547270 NUTNUT
-
214010916 ECM, PROGRAMMED (SEE NOTE)ECM, PROGRAMMED (SEE NOTE)
-
227080756 CLIP, SNAP-INCLIP, SNAP-IN
