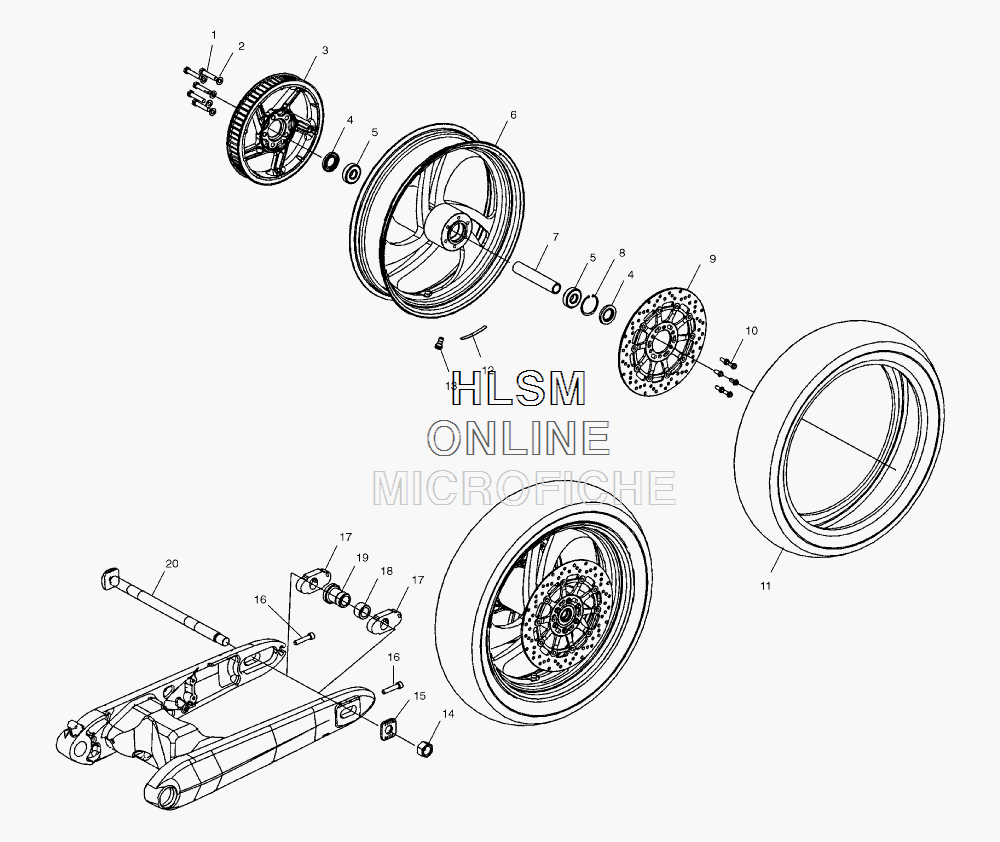

REAR WHEEL (BILLET) для Polaris VICTORY VEGAS (49 STATE) [V03GB16DA] - 2003 года выпуска`
-
№АртикулНазвание
-
17518044 SCREWSCREW
-
27556234 WASHER, FLATWASHER, FLAT
-
31341448 ASM., SPROCKET, 64TASM., SPROCKET, 64T
-
43610094 SEALSEAL
-
53514405 BEARING, BALLBEARING, BALL
-
61520560 ASM., WHEEL, BILLET, REAR (INCL. 4-8,12,13)ASM., WHEEL, BILLET, REAR (INCL. 4-8,12,13)
-
75334138 SPACERSPACER
-
87710526 RING, RETAININGRING, RETAINING
-
91910623 ROTOR, BRAKE, FLOATINGROTOR, BRAKE, FLOATING
-
107518071 SCREWSCREW
-
115412264 TIRE, REARTIRE, REAR
-
121520507 WEIGHT, BALANCEWEIGHT, BALANCE
-
131520232 VALVE, RIMVALVE, RIM
-
147547226 NUTNUT
-
155245087-236 WASHER, INDICATOR, AXLEWASHER, INDICATOR, AXLE
-
167518178 SCREWSCREW
-
175133481 MOUNT, AXLE, ADJUSTMENTMOUNT, AXLE, ADJUSTMENT
-
185334139 SPACER, BEARINGSPACER, BEARING
-
195133503 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
201013926 SHAFT, SPINDLESHAFT, SPINDLE
