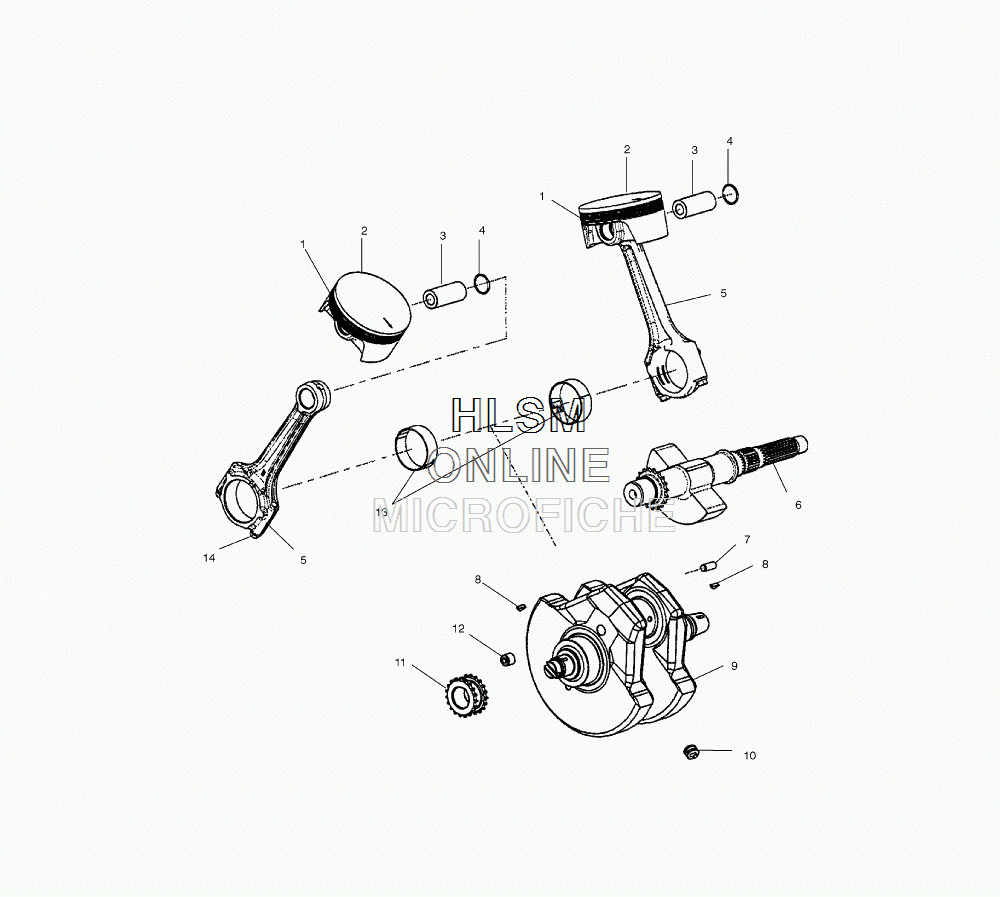

CRANKSHAFT для Polaris VICTORY VEGAS (49 STATE) [V03GB16DA] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2201862 KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)
    KIT, PISTON RING (INCL. TOP, MIDDLE, BOTTOM RINGS)
  • 2
    3021147 ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)
    ASM., PISTON (INCL. PISTON, RINGS, CLIPS, PIN)
  • 3
    5131860 PIN, WRIST
    PIN, WRIST
  • 4
    7710479 RING, RETAINING
    RING, RETAINING
  • 5
    3021196 ASM., CONNECTING ROD (INCL. 14)
    ASM., CONNECTING ROD (INCL. 14)
  • 6
    5133674 SHAFT, BALANCE
    SHAFT, BALANCE
  • 7
    7661045 PIN, SOLID
    PIN, SOLID
  • 8
    7721122 KEY
    KEY
  • 9
    3021274 ASM., CRANKSHAFT (INCL. 8,10,11,12)
    ASM., CRANKSHAFT (INCL. 8,10,11,12)
  • 10
    7051538 PLUG
    PLUG
  • 11
    3221143 SPROCKET, 19T, 4W, DUAL
    SPROCKET, 19T, 4W, DUAL
  • 12
    7052320 PLUG
    PLUG
  • 13
    3514390-067 BEARING, ROD, BLACK
    BEARING, ROD, BLACK
  • 13
    3514390-159 BEARING, ROD, ORANGE
    BEARING, ROD, ORANGE
  • 13
    3514390-027 BEARING, ROD, BLUE
    BEARING, ROD, BLUE
  • 14
    7517937 SCREW
    SCREW
