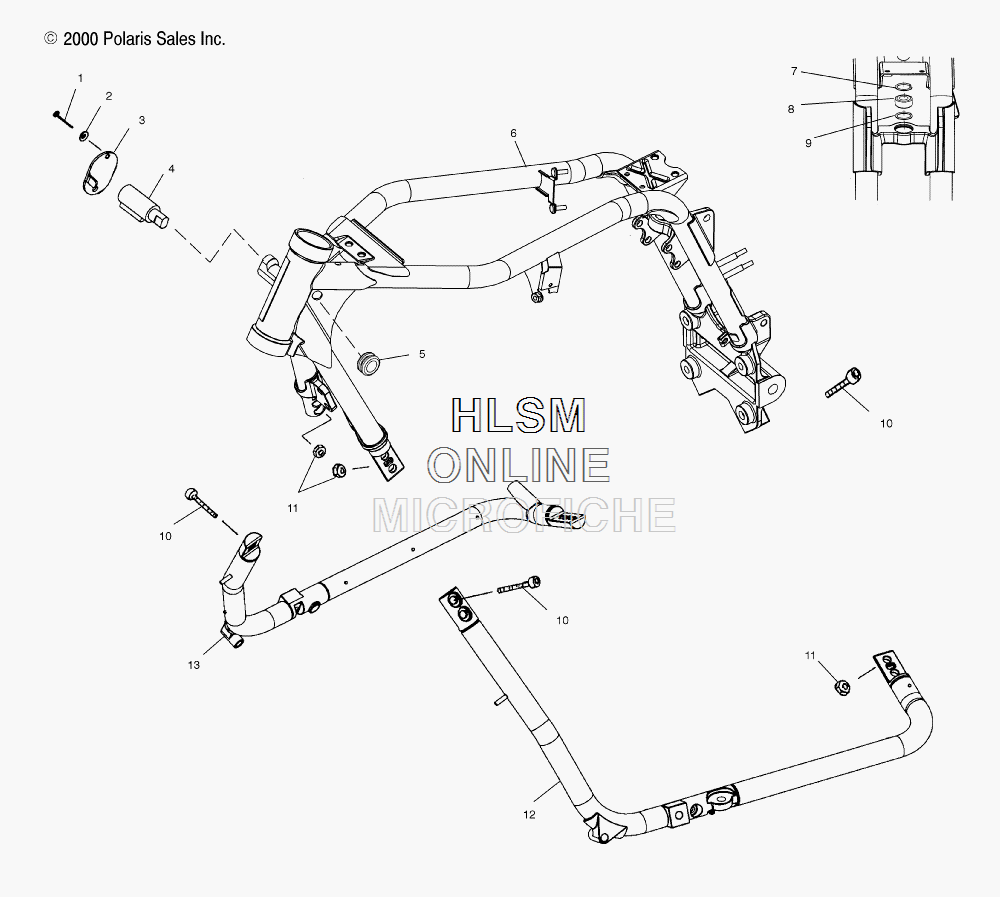

MAIN FRAME для Polaris DELUXE CRUISER (49 STATE) [V01CD15DA] - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7661027 PIN,KNURLED,SS.
    PIN,KNURLED,SS.
  • 2
    7571637 WASHER,WAVE,SS
    WASHER,WAVE,SS
  • 3
    5242202 CAP,FORK LOCK
    CAP,FORK LOCK
  • 4
    7010085 LOCK,FR.FORK S
    LOCK,FR.FORK S
  • 5
    5411472 GROMMET,HEAD CASTING
    GROMMET,HEAD CASTING
  • 6
    1013233-067 FRAME,MAIN, BLACK
    FRAME,MAIN, BLACK
  • 7
    7710446 RING-RET, INT,1'
    RING-RET, INT,1'
  • 8
    3513506 BEARING-SPHERICAL
    BEARING-SPHERICAL
  • 9
    7556185 SPACER-BEARING,SPHERICAL
    SPACER-BEARING,SPHERICAL
  • 10
    7517358 SCREW
    SCREW
  • 11
    7547039 NUT
    NUT
  • 12
    1013273-067 WELD-TUBE,LWR FR,CRADLE, LEFT HAND, BLACK
    WELD-TUBE,LWR FR,CRADLE, LEFT HAND, BLACK
  • 13
    1013288-067 WELD-TUBE,LWR FR,CRADLE, RIGHT HAND, BLACK
    WELD-TUBE,LWR FR,CRADLE, RIGHT HAND, BLACK
