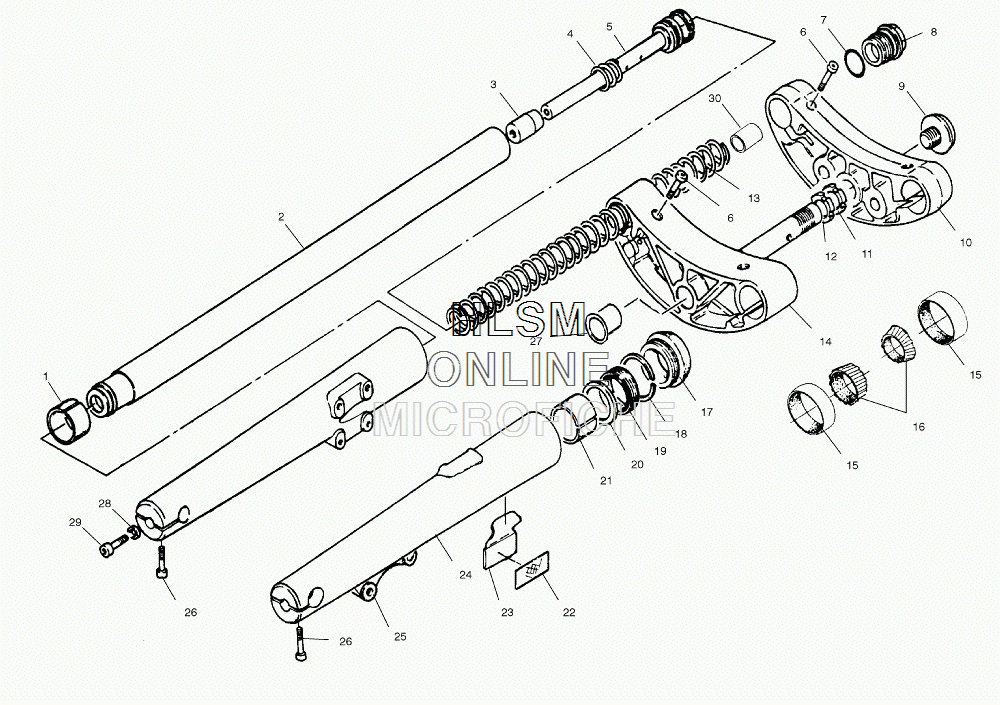

FRONT FORKS для Polaris DELUXE CRUISER (49 STATE) [V01CD15DA] - 2001 года выпуска

  • №
    Артикул
    Название
  • 32
    1820998 FORK LEG-ASM,45MM, LEFT HAND W/BRK MNT (INCL. 1-5,7-8,13,17-21,24,26,28-30)
    FORK LEG-ASM,45MM, LEFT HAND W/BRK MNT (INCL. 1-5,7-8,13,17-21,24,26,28-30)
  • 32
    1820999 FORK LEG-ASM,45MM, RIGHT HAND W/O BRK (INCL. 1-5,7-8,13,17-21,25,26,28-30)
    FORK LEG-ASM,45MM, RIGHT HAND W/O BRK (INCL. 1-5,7-8,13,17-21,25,26,28-30)
  • 32
    2872184 OIL,FORK,QT.(6)
    OIL,FORK,QT.(6)
  • 1
    3585714 BUSHING,LOWER
    BUSHING,LOWER
  • 2
    5131505 TUBE,STANCHION,45MM
    TUBE,STANCHION,45MM
  • 3
    5131498 FOOT,BUFFER
    FOOT,BUFFER
  • 4
    7041624 SPRING,REBOUND
    SPRING,REBOUND
  • 5
    2201888 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 5
    5434228 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 5
    5334037 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 6
    1500170 CLAMP,STAN.TUBE FASTENER
    CLAMP,STAN.TUBE FASTENER
  • 7
    5411330 O-RING,FORK
    O-RING,FORK
  • 8
    5131502 PLUG,FORK
    PLUG,FORK
  • 9
    5131497 BOLT,STEERING POST,CAP
    BOLT,STEERING POST,CAP
  • 10
    1820952 ASM-TRIPLE CLAMP,UPPER,SLVR (INCL. 6)
    ASM-TRIPLE CLAMP,UPPER,SLVR (INCL. 6)
  • 11
    5131953 NUT-STEERING POST,UPPER
    NUT-STEERING POST,UPPER
  • 12
    5131496 NUT,STEERING POST
    NUT,STEERING POST
  • 13
    7042026 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 14
    1820927 ASM-TRIPLE CLAMP,LOWER,SLVR (INCL. 6,9,11,12)
    ASM-TRIPLE CLAMP,LOWER,SLVR (INCL. 6,9,11,12)
  • 15
    3554507 BRG,TAPER,ROLL CUP
    BRG,TAPER,ROLL CUP
  • 16
    3554510 BEARING,TPR.RLR,SEALED
    BEARING,TPR.RLR,SEALED
  • 17
    5133061 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 17
    3610082 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 17
    5412073 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 18
    5211827 RING,STOP
    RING,STOP
  • 19
    3610068 SEAL,OIL
    SEAL,OIL
  • 20
    5131504 CAP,OILSEAL
    CAP,OILSEAL
  • 21
    3585715 BUSHING,UPPER
    BUSHING,UPPER
  • 22
    5433878 REFLECTOR-RECT,AMBER W/BLACK FRM
    REFLECTOR-RECT,AMBER W/BLACK FRM
  • 23
    5433864 DESC NOT_AVAILABLE
    DESC NOT_AVAILABLE
  • 23
    5433748 BASE-REFLECTOR,FRONT, RIGHT HAND
    BASE-REFLECTOR,FRONT, RIGHT HAND
  • 24
    2201892 DESC NOT_AVAILABLE (INCL. 18-21)
    DESC NOT_AVAILABLE (INCL. 18-21)
  • 25
    2201893 DESC NOT_AVAILABLE (INCL. 18-21)
    DESC NOT_AVAILABLE (INCL. 18-21)
  • 26
    1500168 CLAMP,AXLE FASTENER
    CLAMP,AXLE FASTENER
  • 27
    5433581 PLUG-PVC
    PLUG-PVC
  • 28
    3610069 WASHER,OILSEAL
    WASHER,OILSEAL
  • 29
    1500169 RETAINER,DAMP.TUBE FASTENER
    RETAINER,DAMP.TUBE FASTENER
  • 30
    5521585 SPACER-FORK SPRING,45MM,22MM
    SPACER-FORK SPRING,45MM,22MM
