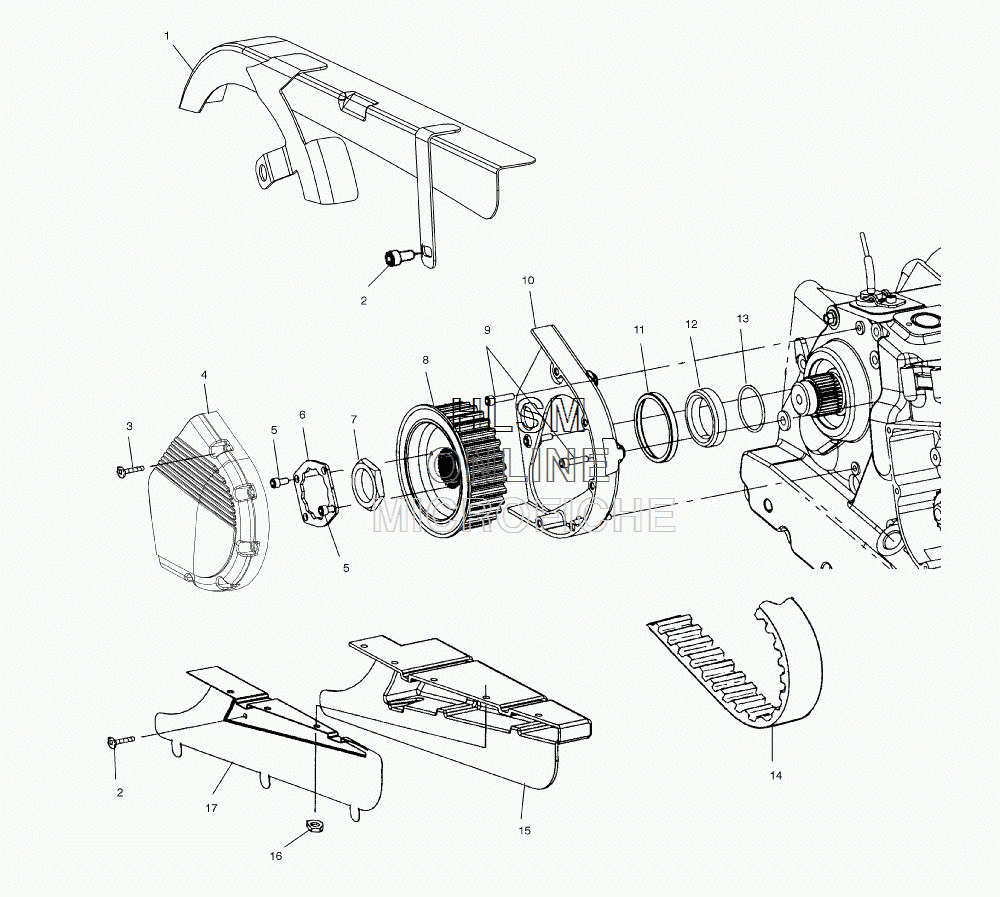

FRONT DRIVE SPROCKET для Polaris STANDARD CRUISER (49 STATE) [V99CB15DA] - 1999 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1080010 GUARD,UPPER BELT S
    GUARD,UPPER BELT S
  • 2
    7517359 SCREW
    SCREW
  • 3
    7517259 SCREW,SOCHD,
    SCREW,SOCHD,
  • 4
    5131486 COVER,SPKT,OUTER,MACH S
    COVER,SPKT,OUTER,MACH S
  • 5
    7547020 NUT,HEX S
    NUT,HEX S
  • 6
    7517272 SCREW,SOCHD,M6X15
    SCREW,SOCHD,M6X15
  • 7
    5211876 WASHER,LOCK,
    WASHER,LOCK,
  • 8
    5131859 SPROCKET,DRIVE,30T
    SPROCKET,DRIVE,30T
  • 9
    7517384 SCREW,SOCHD,M6X20
    SCREW,SOCHD,M6X20
  • 10
    5131487 COVER,INNER SPKT,MACH.
    COVER,INNER SPKT,MACH.
  • 11
    3610057 SEAL
    SEAL
  • 12
    5131559 SLEEVE,SEAL S
    SLEEVE,SEAL S
  • 13
    3610056 O-RING
    O-RING
  • 14
    3211068 BELT,DRIVE,135T
    BELT,DRIVE,135T
  • 15
    5242244 GUARD,BELT,BOTTOM
    GUARD,BELT,BOTTOM
  • 16
    7547041 NUT S
    NUT S
  • 17
    5241892 COVER,LOW.BELT GUARD
    COVER,LOW.BELT GUARD
  • 5
    7517272 SCREW,SOCHD,M6X15
    SCREW,SOCHD,M6X15
  • 6
    5211876 WASHER,LOCK,
    WASHER,LOCK,
  • 7
    7547020 NUT,HEX S
    NUT,HEX S
