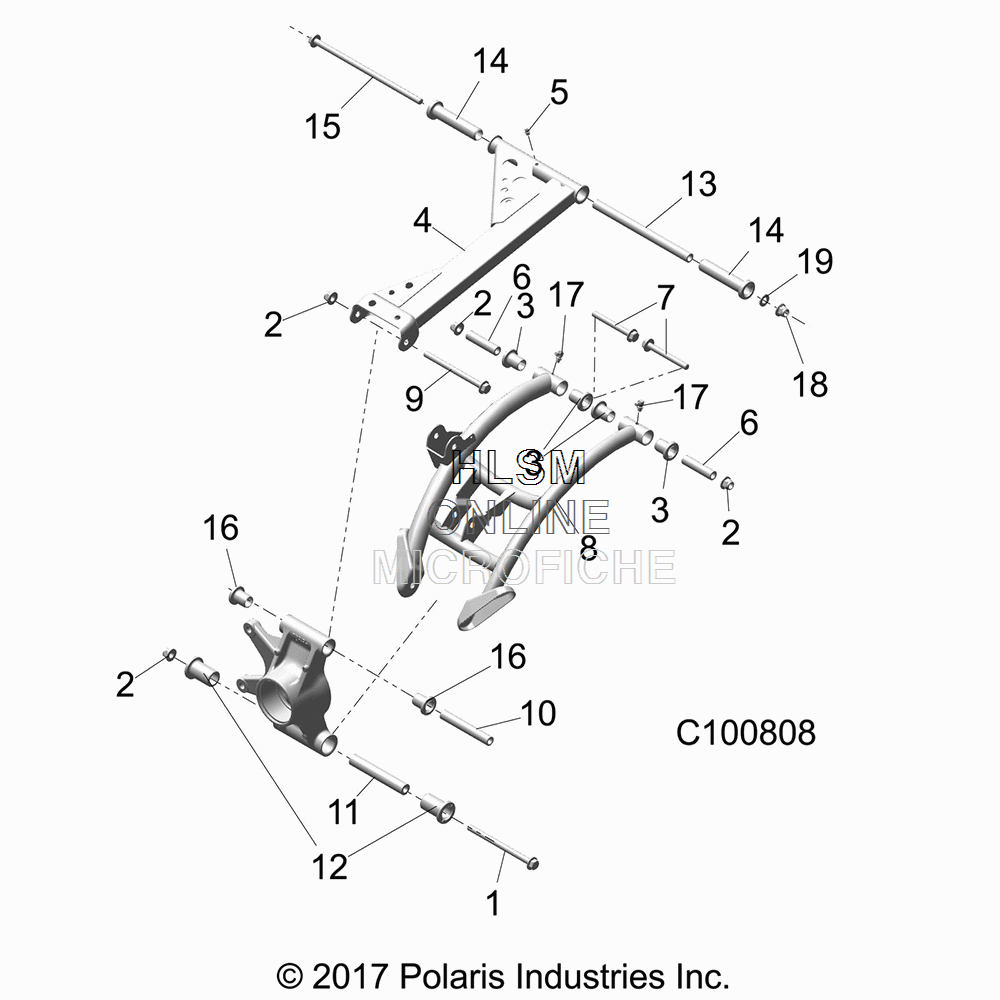

SUSPENSION - REAR для Polaris SPORTSMAN 850 SP (INDY RED) [A18SXA85B7] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7518467 BOLT, FLANGE
    BOLT, FLANGE
  • 2
    7547313 NUT, FLANGE
    NUT, FLANGE
  • 3
    5439874 BUSHING
    BUSHING
  • 4
    1017216-067 ARM, CONTROL, UPPER, REAR, LEFT HAND, BLACK
    ARM, CONTROL, UPPER, REAR, LEFT HAND, BLACK
  • 4
    1017217-067 ARM, CONTROL, UPPER, REAR, RIGHT HAND, BLACK
    ARM, CONTROL, UPPER, REAR, RIGHT HAND, BLACK
  • 5
    7080433 FITTING, LUBRICATING
    FITTING, LUBRICATING
  • 6
    5137346 SHAFT, A-ARM,63.5MM
    SHAFT, A-ARM,63.5MM
  • 7
    7518466 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    1022011-067 WELD-LCA,REAR,LEFT HAND BRKT,BLACK
    WELD-LCA,REAR,LEFT HAND BRKT,BLACK
  • 8
    1022012-067 WELD-LCA,REAR,RIGHT HAND BRKT,BLACK
    WELD-LCA,REAR,RIGHT HAND BRKT,BLACK
  • 9
    7518675 BOLT, FLANGE
    BOLT, FLANGE
  • 10
    5137590 SHAFT, PIVOT,104.9MM,ZINC YEL
    SHAFT, PIVOT,104.9MM,ZINC YEL
  • 11
    5136473 SHAFT, A-ARM, LOWER CONTROL ARM,0.75 IN OD
    SHAFT, A-ARM, LOWER CONTROL ARM,0.75 IN OD
  • 12
    5437651 BUSHING, LOWER CONTROL ARM,0.75 IN ID
    BUSHING, LOWER CONTROL ARM,0.75 IN ID
  • 13
    5137594 SHAFT, PIVOT,210.27MM,ZINC YEL
    SHAFT, PIVOT,210.27MM,ZINC YEL
  • 14
    5436973 BUSHING, A-ARM, LONG,102.36MM
    BUSHING, A-ARM, LONG,102.36MM
  • 15
    7519086 SCREW
    SCREW
  • 16
    5439874 BUSHING
    BUSHING
  • 17
    7080510 FITTING, ZERK,90 DEG
    FITTING, ZERK,90 DEG
  • 18
    7547333 NUT, NYLOC
    NUT, NYLOC
  • 19
    7556153 WASHER
    WASHER
