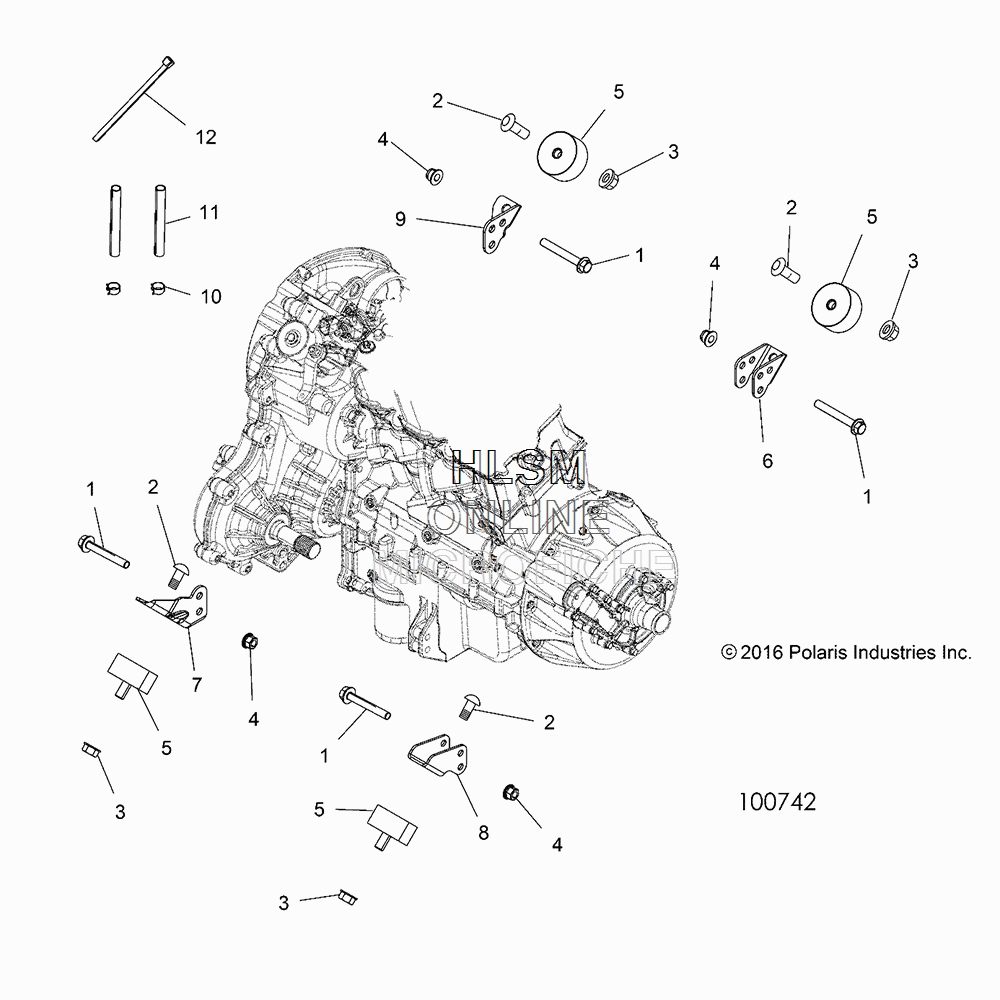

MOUNTING - ENGINE W/ TRANSMISSION для Polaris SPORTSMAN 850 SP (INDY RED) [A18SXA85B7] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    7516732 SCREW, FLANGE
    SCREW, FLANGE
  • 2
    7519032 SCREW
    SCREW
  • 3
    7547313 NUT, FLANGE
    NUT, FLANGE
  • 4
    7547317 NUT, FLANGE
    NUT, FLANGE
  • 5
    3022154 ISOLATOR
    ISOLATOR
  • 6
    5251716 BRACKET, TRANSMISSION MOUNT, LEFT HAND
    BRACKET, TRANSMISSION MOUNT, LEFT HAND
  • 7
    5252091 BRACKET, TRANSMISSION, RIGHT HAND
    BRACKET, TRANSMISSION, RIGHT HAND
  • 8
    5251717 BRACKET, ENGINE, MOUNT, RIGHT HAND
    BRACKET, ENGINE, MOUNT, RIGHT HAND
  • 9
    5253340 BRACKET, TRANSMISSION, LEFT HAND
    BRACKET, TRANSMISSION, LEFT HAND
  • 10
    7081432 CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]
    CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]
  • 11
    8450040-600 LINE, FUEL,1/4 ID(600 CM.) [TRANSMISSION VENTING]
    LINE, FUEL,1/4 ID(600 CM.) [TRANSMISSION VENTING]
  • 12
    7080761 STRAP-PANDUIT,14 IN
    STRAP-PANDUIT,14 IN
