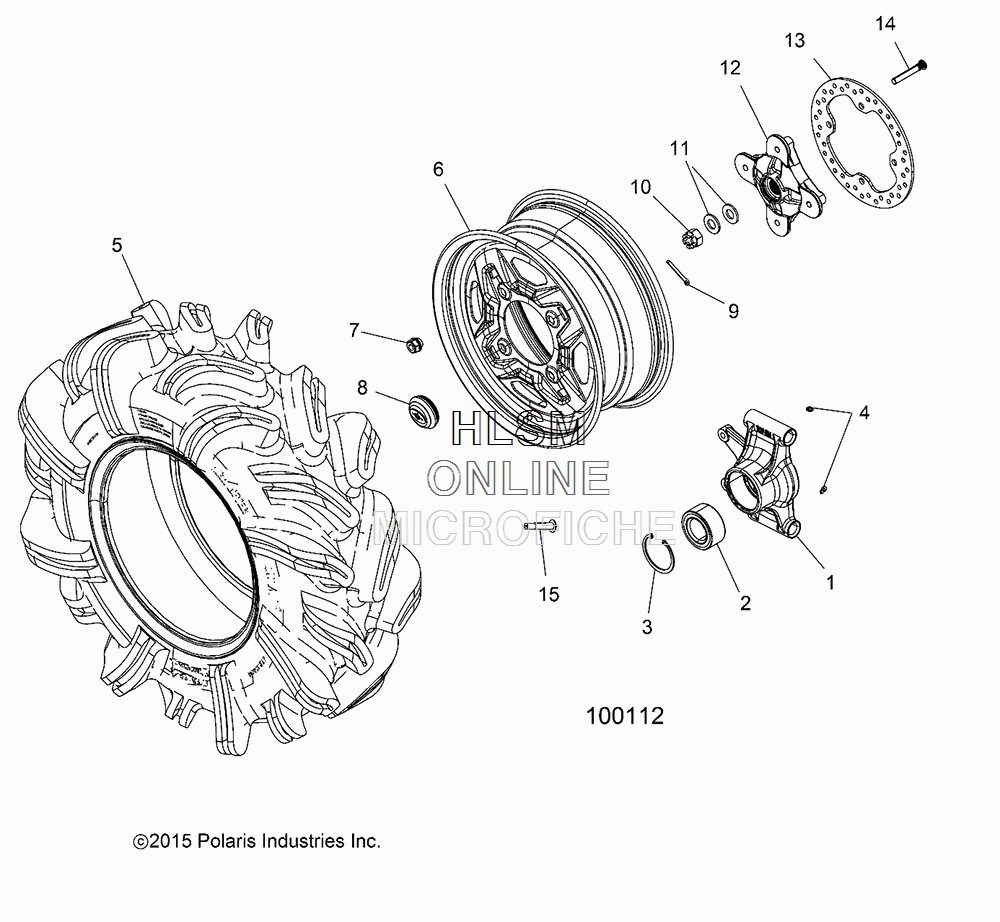

WHEEL - REAR W/ HUB для Polaris SPORTSMAN 850 HIGH LIFTER (CRUISER BLACK) [A18SXN85A8] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5136105 CARRIER, BEARING, LEFT HAND
    CARRIER, BEARING, LEFT HAND
  • 1
    5136106 CARRIER, BEARING, RIGHT HAND
    CARRIER, BEARING, RIGHT HAND
  • 2
    3514699 BEARING, BALL, SEALED
    BEARING, BALL, SEALED
  • 3
    7710440 RING, RETAINING
    RING, RETAINING
  • 4
    7080424 FITTING, LUBRICATING
    FITTING, LUBRICATING
  • 5
    5415759 TIRE-HL
    TIRE-HL
  • 6
    1522664-067 WELD-RIM,FRONT,14 IN X 6 IN,BLACK
    WELD-RIM,FRONT,14 IN X 6 IN,BLACK
  • 7
    7547363 NUT, WHEEL
    NUT, WHEEL
  • 8
    5413792 CAP, DUST
    CAP, DUST
  • 9
    7661404 PIN, COTTER
    PIN, COTTER
  • 10
    7547406 NUT, CASTLE
    NUT, CASTLE
  • 11
    7555796 WASHER, CONE
    WASHER, CONE
  • 12
    5136946 HUB, WHEEL
    HUB, WHEEL
  • 13
    5250205 DISC, BRAKE,246MM OD,4.75
    DISC, BRAKE,246MM OD,4.75
  • 14
    7518671 STUD, WHEEL
    STUD, WHEEL
  • 15
    1525017 VALVE, RIM
    VALVE, RIM
