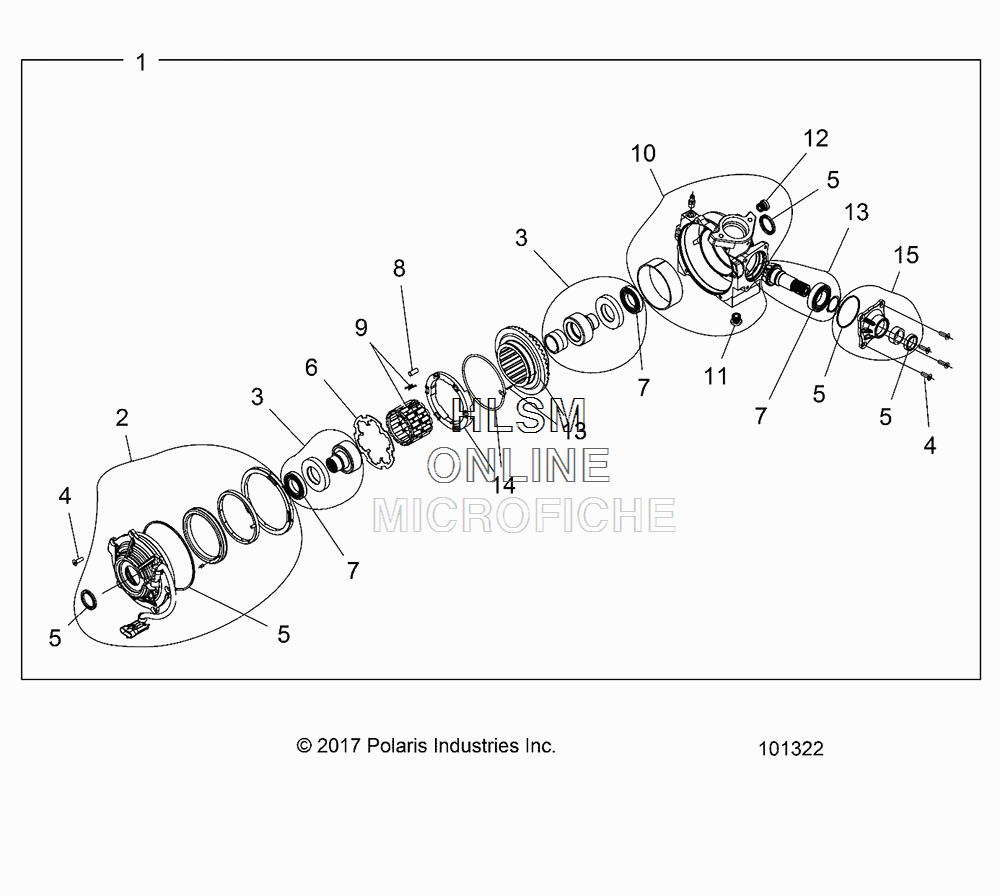

GEARCASE - INTERNAL COMPONENTS - FRONT (BUILT UP TO 8/7/2017) для Polaris SPORTSMAN 850 HIGH LIFTER (CRUISER BLACK) [A18SXN85A8] - 2018 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    1333920 ASM-GEARCASE,FRONT [INCL. ALL]
    ASM-GEARCASE,FRONT [INCL. ALL]
  • 2
    3235634 ASM-COVER,OUTPUT [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
    ASM-COVER,OUTPUT [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
  • 3
    3235911 ASM-OUTPUT HUB [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
    ASM-OUTPUT HUB [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
  • 4
    3235433 KIT-FASTNERS [INCL. QTY 10 SCREWS]
    KIT-FASTNERS [INCL. QTY 10 SCREWS]
  • 5
    3235434 KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
    KIT-SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
  • 6
    3236048 PLATE, 4WD ARMATURE
    PLATE, 4WD ARMATURE
  • 7
    3235435 BEARING
    BEARING
  • 8
    3235624 ROLLERS [INCL. SET OF 24]
    ROLLERS [INCL. SET OF 24]
  • 9
    3235625 ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
    ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
  • 10
    3235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
    ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
  • 11
    2203738 DRAIN PLUG
    DRAIN PLUG
  • 12
    2203739 FILL PLUG
    FILL PLUG
  • 13
    3235636 ASM-GEARCASE HOUSING,PNN GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
    ASM-GEARCASE HOUSING,PNN GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
  • 14
    3235712 K-TORSION SPRING & RETAINER
    K-TORSION SPRING & RETAINER
  • 15
    3236143 ASM-INPUT COVER [INCL. O-RING, COVER, SEAL]
    ASM-INPUT COVER [INCL. O-RING, COVER, SEAL]
