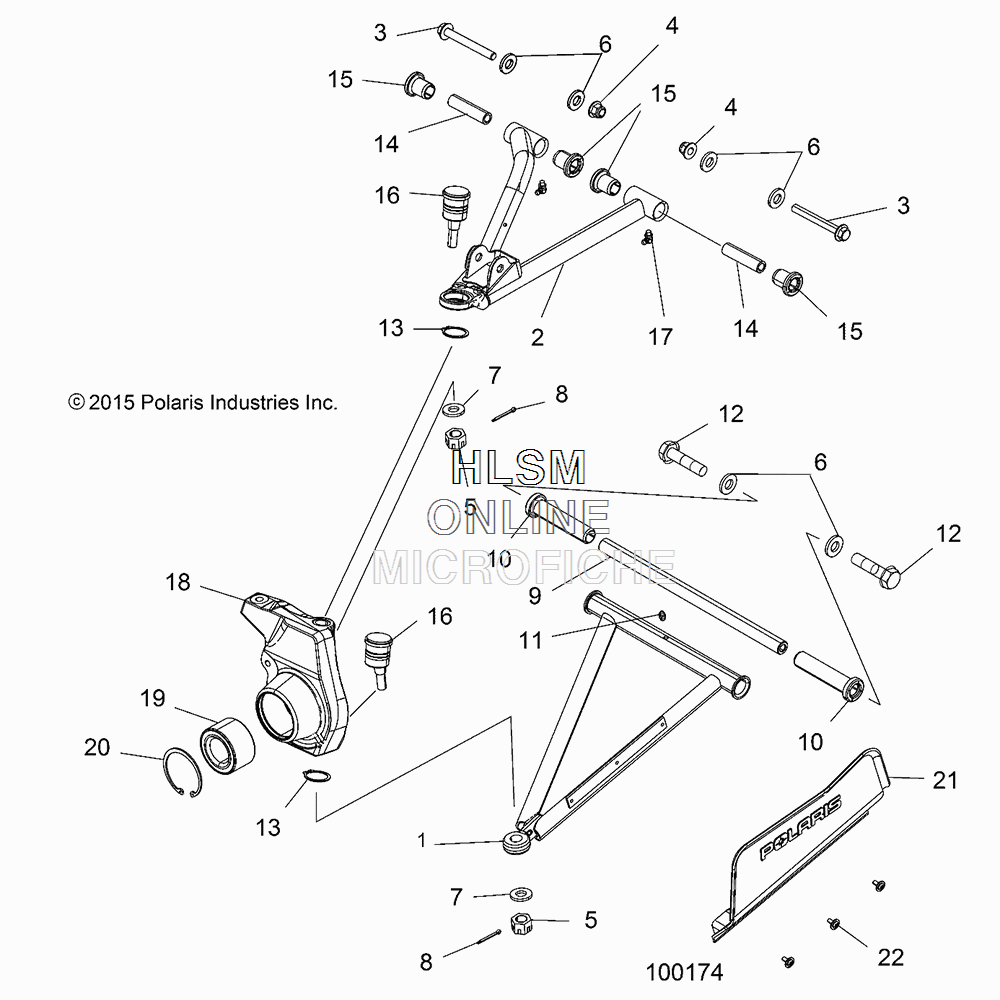

SUSPENSION- FRONT для Polaris SPORTSMAN 570 SP TR (TURBO SILVER) [A18SJE57BU] - 2018 года выпуска

№

Артикул

Название
1

1020987-067 CONTROL, ARM, LOWER, FRONT, LEFT HAND, BLACK

CONTROL, ARM, LOWER, FRONT, LEFT HAND, BLACK
1

1020988-067 CONTROL, ARM, LOWER, FRONT, RIGHT HAND, BLACK

CONTROL, ARM, LOWER, FRONT, RIGHT HAND, BLACK
2

1020527-067 CONTROL, ARM, UPPER, FRONT, LEFT HAND, BLACK

CONTROL, ARM, UPPER, FRONT, LEFT HAND, BLACK
2

1020528-067 CONTROL, ARM, UPPER, FRONT, RIGHT HAND, BLACK

CONTROL, ARM, UPPER, FRONT, RIGHT HAND, BLACK
3

7515472 SCREW

SCREW
4

7542439 NUT

NUT
5

7547336 NUT, CASTLE

NUT, CASTLE
6

7556153 WASHER

WASHER
7

7556212 WASHER

WASHER
8

7661203 PIN, COTTER

PIN, COTTER
9

5139929 SHAFT-A-ARM, C-BORE

SHAFT-A-ARM, C-BORE
10

5436973 BUSHING, LONG, 102.36MM

BUSHING, LONG, 102.36MM
11

7080433 FITTING, LUB

FITTING, LUB
12

7520340 SCR-3/8-24X1 3/4, HX, GR5, P30, Y

SCR-3/8-24X1 3/4, HX, GR5, P30, Y
13

7710533 RING, RETAINER, EXTERNAL

RING, RETAINER, EXTERNAL
14

5137346 SHAFT, A-ARM, 63.5MM

SHAFT, A-ARM, 63.5MM
15

5439874 BUSHING

BUSHING
16

7061230 BALL, JOINT

BALL, JOINT
17

7080510 FITTING, ZERK, 90 DEG

FITTING, ZERK, 90 DEG
18

1824434 ASM., STEERING, KNUCKLE, LEFT HAND (INCL., KNUCKLE, 19, 20)

ASM., STEERING, KNUCKLE, LEFT HAND (INCL., KNUCKLE, 19, 20)
18

5139686 KNUCKLE, STEERING, MACH, LEFT HAND

KNUCKLE, STEERING, MACH, LEFT HAND
18

1824435 ASM., STEERING, KNUCKLE, RIGHT HAND (INCL., KNUCKLE, 19, 20)

ASM., STEERING, KNUCKLE, RIGHT HAND (INCL., KNUCKLE, 19, 20)
18

5139687 KNUCKLE, STEERING, MACH, RIGHT HAND

KNUCKLE, STEERING, MACH, RIGHT HAND
19

3514634 BEARING, WHEEL, 35X64X37MM

BEARING, WHEEL, 35X64X37MM
20

7710507 RING, RETAINING, INTERNAL

RING, RETAINING, INTERNAL
21

5435028-070 SHIELD, CV, FRONT, LEFT HAND, BLACK

SHIELD, CV, FRONT, LEFT HAND, BLACK
21

5435029-070 SHIELD, CV, FRONT, RIGHT HAND, BLACK

SHIELD, CV, FRONT, RIGHT HAND, BLACK
22

7512084 SCREW

SCREW
