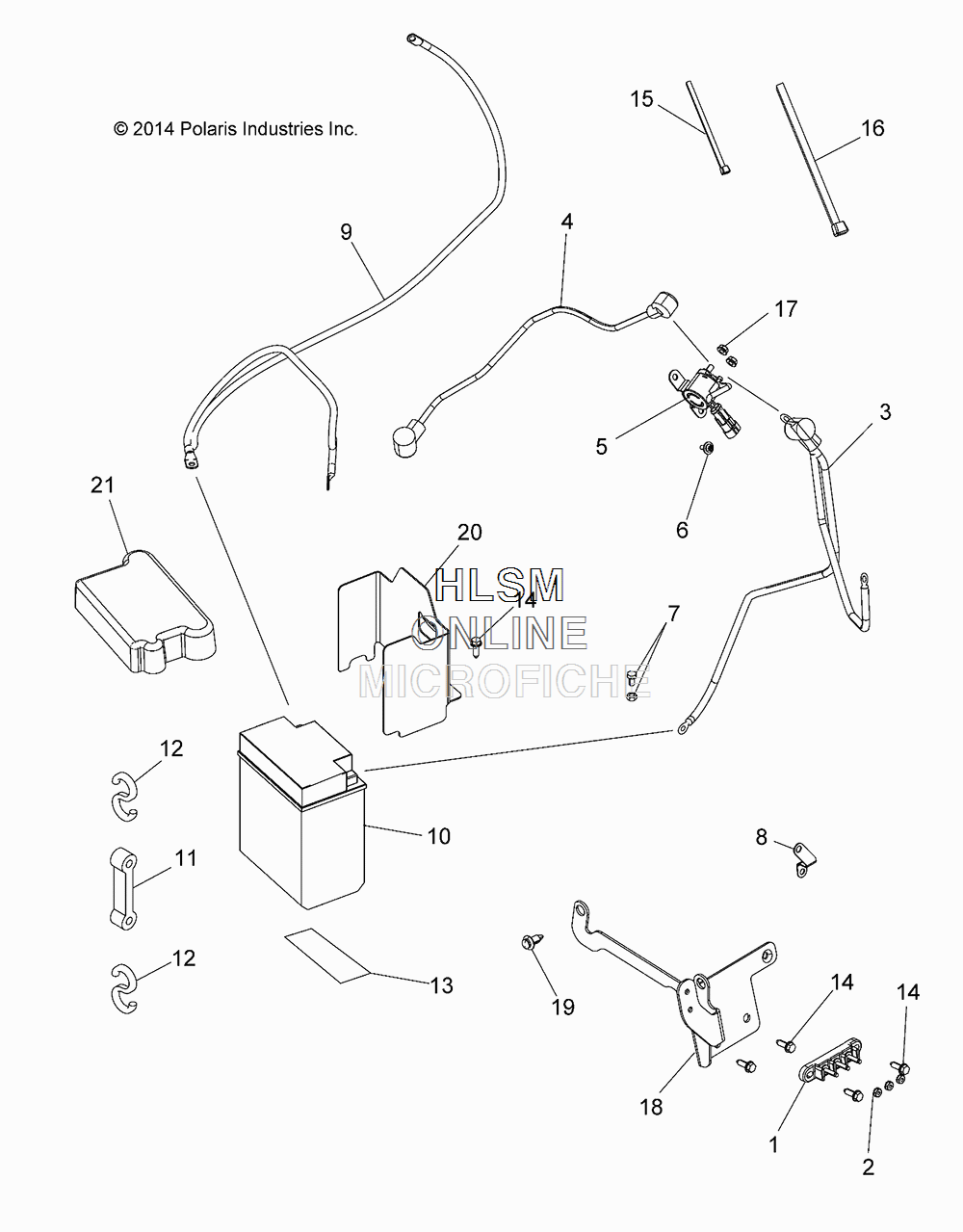

BATTERY для Polaris SPORTSMAN 570 SP TR (TURBO SILVER) [A18SJE57BU] - 2018 года выпуска`
-
№АртикулНазвание
-
14011892 BLOCK, TERMINAL, 3 POSTBLOCK, TERMINAL, 3 POST
-
27547341 NUTNUT
-
34014935 CABLE, BATTERY, 6 GAUGECABLE, BATTERY, 6 GAUGE
-
44014424-845 CABLE, BATTERY, 6 GAUGE, FLATCABLE, BATTERY, 6 GAUGE, FLAT
-
45410346 INSULATOR, CABLE (USE WITH 4014424-845)INSULATOR, CABLE (USE WITH 4014424-845)
-
54012001 SOLENOID, STARTERSOLENOID, STARTER
-
67512084 SCREWSCREW
-
72202213 KIT, BATTERY BOLTKIT, BATTERY BOLT
-
85260167 STRAP, GROUNDSTRAP, GROUND
-
94014937 CABLE, BATTERY, 6 GAUGECABLE, BATTERY, 6 GAUGE
-
104140006 BATTERY, 14AH (STANDARD)BATTERY, 14AH (STANDARD)
-
105432077 TUBE-BATTERY VENT, 650 MM (STANDARD)TUBE-BATTERY VENT, 650 MM (STANDARD)
-
104011138 BATTERY-SEALED, 14AH, ETX15 (OPTION)BATTERY-SEALED, 14AH, ETX15 (OPTION)
-
115412499 STRAP, BATTERY HOLD DOWNSTRAP, BATTERY HOLD DOWN
-
127010032 HOOK, BATTERY STRAPHOOK, BATTERY STRAP
-
135813265 FOAM, COVERFOAM, COVER
-
147517386 SCREWSCREW
-
157080138 CABLE TIECABLE TIE
-
167080761 STRAP-PANDUIT, 14 INSTRAP-PANDUIT, 14 IN
-
177546703 NUT, NYLOKNUT, NYLOK
-
185259734 BRACKET, FUSE BLOCKBRACKET, FUSE BLOCK
-
197661855 RIVETRIVET
-
205259571 BRACKET, BATTERY, GUARDBRACKET, BATTERY, GUARD
-
215431769 BATTERY, COVERBATTERY, COVER
