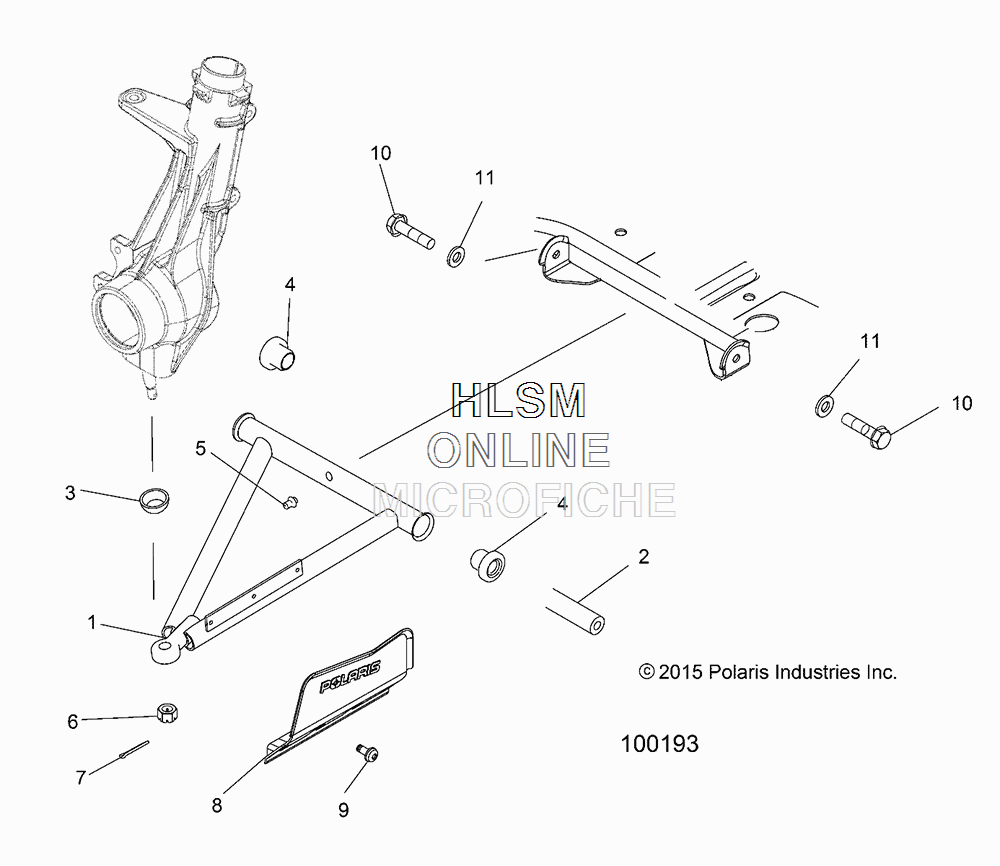

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN 570 HD EPS (VELOCITY BLUE) [A18SEF57N5] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1542161-067 WELD-A-FRAME, FLARED, LEFT HAND, BLACK
    WELD-A-FRAME, FLARED, LEFT HAND, BLACK
  • 1
    1542162-067 WELD-A-FRAME, FLARED, RIGHT HAND, BLACK
    WELD-A-FRAME, FLARED, RIGHT HAND, BLACK
  • 2
    5139929 SHAFT-A-ARM, C-BORE
    SHAFT-A-ARM, C-BORE
  • 3
    5414893 BOOT-BALLJOINT, GREASELESS, STRT
    BOOT-BALLJOINT, GREASELESS, STRT
  • 4
    1543326 ASM-BUSHING, HD, W/SEAL, 6.75 FLG
    ASM-BUSHING, HD, W/SEAL, 6.75 FLG
  • 5
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    7661203 PIN, COTTER
    PIN, COTTER
  • 8
    5435028-070 SHIELD, CV FRONT, BLACK, LEFT HAND
    SHIELD, CV FRONT, BLACK, LEFT HAND
  • 8
    5435029-070 SHIELD, CV FRONT, BLACK, RIGHT HAND
    SHIELD, CV FRONT, BLACK, RIGHT HAND
  • 9
    7512084 SCREW
    SCREW
  • 10
    7520340 SCREW
    SCREW
  • 11
    7556153 WASHER-3/8 FW SAE STL THRU-HRD
    WASHER-3/8 FW SAE STL THRU-HRD
