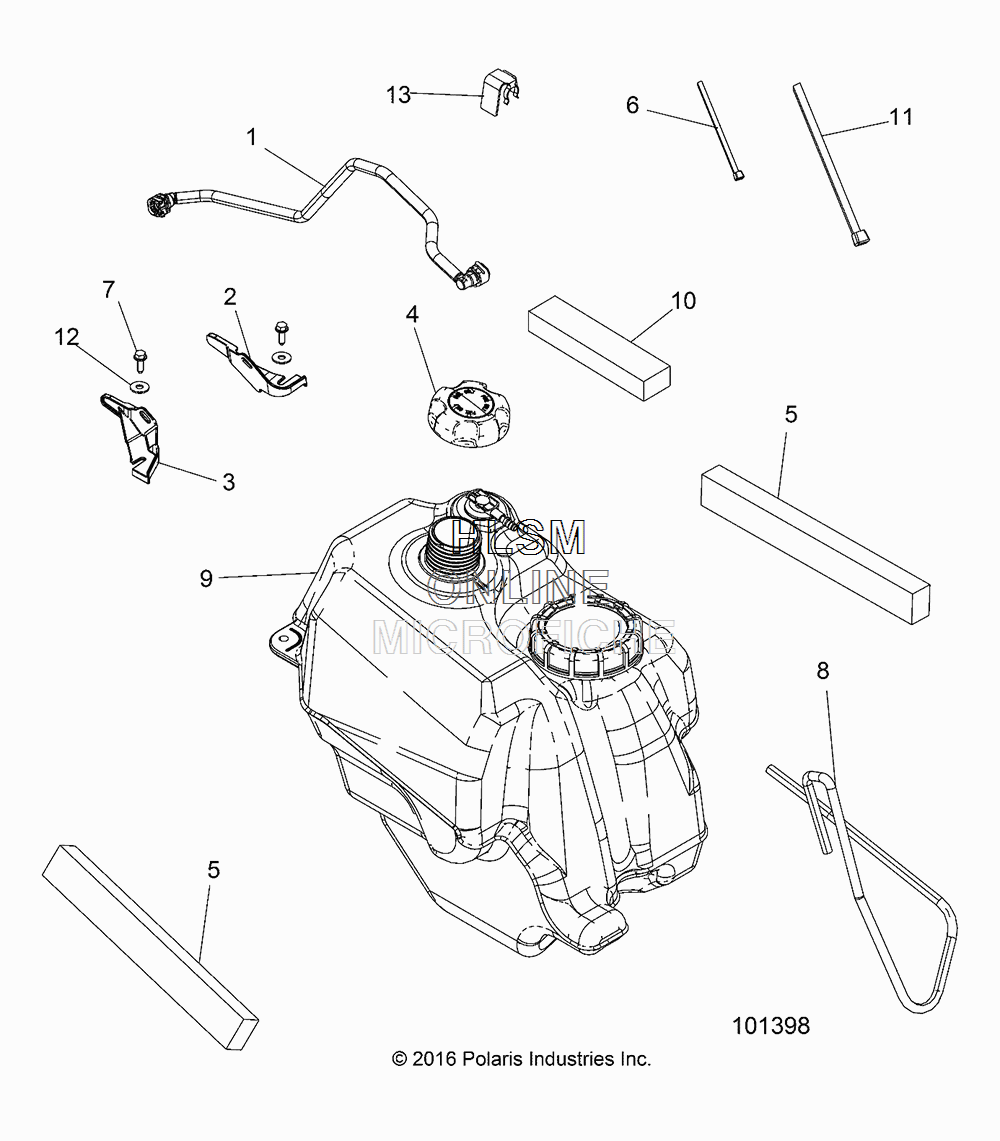

FUEL TANK для Polaris SPORTSMAN 570 HD EPS (VELOCITY BLUE) [A18SEF57N5] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2521664 ASM-FUEL LINE, HARD
    ASM-FUEL LINE, HARD
  • 2
    5452276 BRACKET, SEAT BASE, CAB MOUNT, LEFT HAND
    BRACKET, SEAT BASE, CAB MOUNT, LEFT HAND
  • 3
    5452277 BRACKET, SEAT BASE, CAB MOUNT, RIGHT HAND
    BRACKET, SEAT BASE, CAB MOUNT, RIGHT HAND
  • 4
    5439075 CAP, GAS TANK
    CAP, GAS TANK
  • 5
    5813255 FOAM, SEAL
    FOAM, SEAL
  • 6
    7080138 PANDUIT STRAP
    PANDUIT STRAP
  • 7
    7515179 SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
    SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
  • 8
    8450040-86 LINE, FUEL-86 CM
    LINE, FUEL-86 CM
  • 9
    2207671 FUEL PUMP, SERVICE KIT, ATV, 1UP (INCL. PUMP, GASKET, NUT, INSTRUCTIOINS)
    FUEL PUMP, SERVICE KIT, ATV, 1UP (INCL. PUMP, GASKET, NUT, INSTRUCTIOINS)
  • 9
    2521713 ASM-FUEL TANK, 570 EFI
    ASM-FUEL TANK, 570 EFI
  • 10
    5813265 FOAM, COVER
    FOAM, COVER
  • 11
    7080761 STRAP-PANDUIT, 14 IN
    STRAP-PANDUIT, 14 IN
  • 12
    7555960 WASHER-.327X.875X.090, FL-Y
    WASHER-.327X.875X.090, FL-Y
  • 13
    5454451 COVER-FUEL LINE CONNECTOR
    COVER-FUEL LINE CONNECTOR
