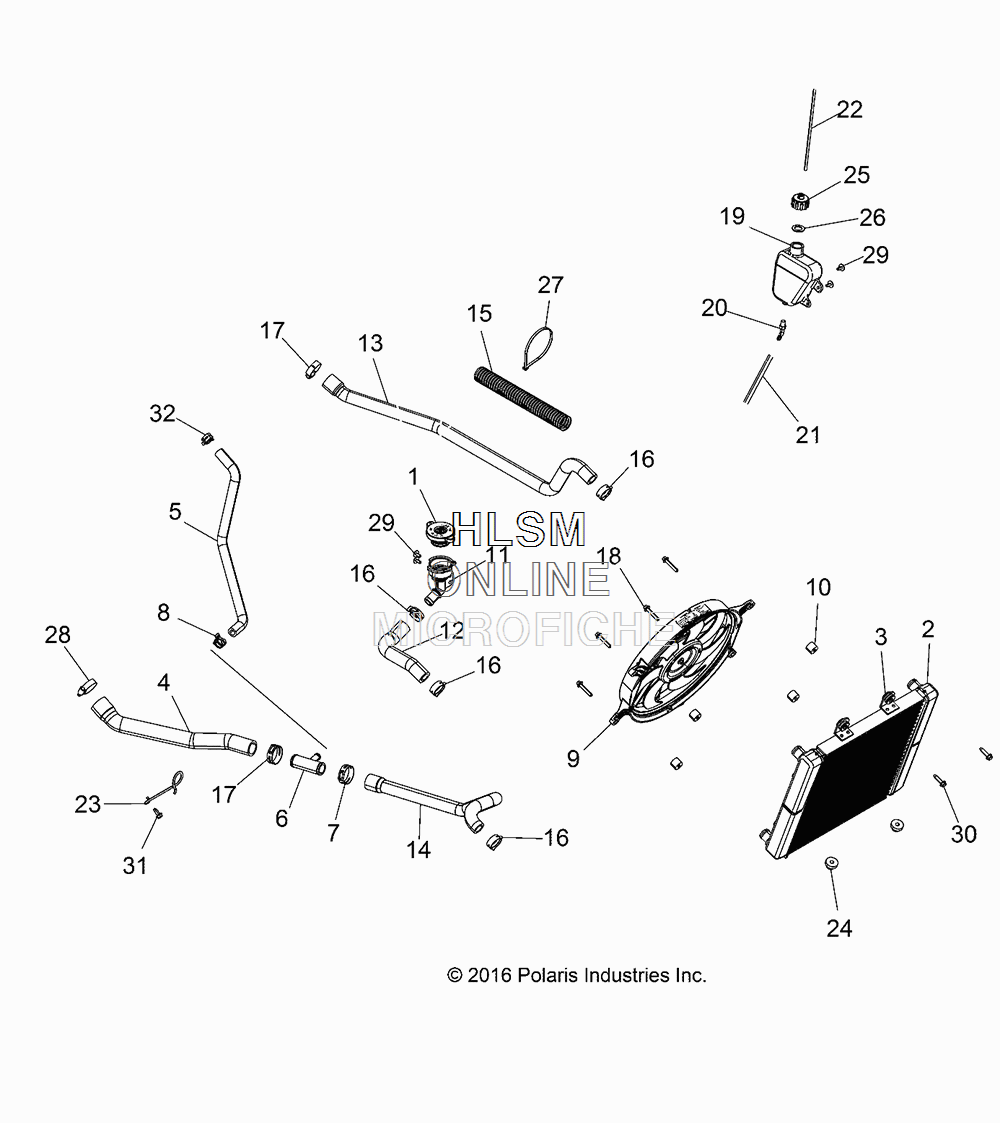

COOLING SYSTEM для Polaris SPORTSMAN 570 EU EPS (SAGE BRUSH GREEN METALLIC) [A18SEE57F1] - 2018 года выпуска`
-
№АртикулНазвание
-
11240508 CAP, PRESSURE, 13 PSICAP, PRESSURE, 13 PSI
-
21240520 ASM., RADIATORASM., RADIATOR
-
35413155 ASM., GROMMET AND INSERTASM., GROMMET AND INSERT
-
45414805 HOSE, ENGINE, LOWERHOSE, ENGINE, LOWER
-
55414806 HOSE, BYPASS, FORMED, 3/8 INHOSE, BYPASS, FORMED, 3/8 IN
-
67052530 CONNECTOR, TEECONNECTOR, TEE
-
77080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
87081719 CLAMP, HOSE, SPRING, 20MMCLAMP, HOSE, SPRING, 20MM
-
92411330 ASM., FAN AND MOTORASM., FAN AND MOTOR
-
105137361 SPACERSPACER
-
115412402 NECK, FILLERNECK, FILLER
-
125414228 HOSE, FILLER NECKHOSE, FILLER NECK
-
135415336 HOSE-RADIATOR, UPPERHOSE-RADIATOR, UPPER
-
145415229 HOSE-RADIATOR, LOWERHOSE-RADIATOR, LOWER
-
155521793-25 CONDUIT, FLEX, 51CMCONDUIT, FLEX, 51CM
-
167080841 CLAMP, SPRINGBAND, GREENCLAMP, SPRINGBAND, GREEN
-
177080843 CLAMP, SPRINGBANDCLAMP, SPRINGBAND
-
187516827 SCREWSCREW
-
195436936 TANK, SURGETANK, SURGE
-
207052065 FITTING, BARBED, 90 DEGFITTING, BARBED, 90 DEG
-
218450003-1525 HOSE, CLEAR, 1/4 ID(1525 CM.)HOSE, CLEAR, 1/4 ID(1525 CM.)
-
228360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
235338063 SPRING, COOLANT HOSE GUIDESPRING, COOLANT HOSE GUIDE
-
245410584 BUSHING, MOUNT, LOWER RADIATORBUSHING, MOUNT, LOWER RADIATOR
-
255437635 CAP, OVERFLOW BOTTLE W/FITTINGCAP, OVERFLOW BOTTLE W/FITTING
-
265810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
277080761 STRAP-PANDUIT, 14 INSTRAP-PANDUIT, 14 IN
-
287081174 CLAMP, HOSE, 13/16 IN -1 1/2 INCLAMP, HOSE, 13/16 IN -1 1/2 IN
-
297512084 SCREWSCREW
-
307515179 SCREWSCREW
-
317517386 SCREWSCREW
-
327080474 CLAMP, HOSECLAMP, HOSE
