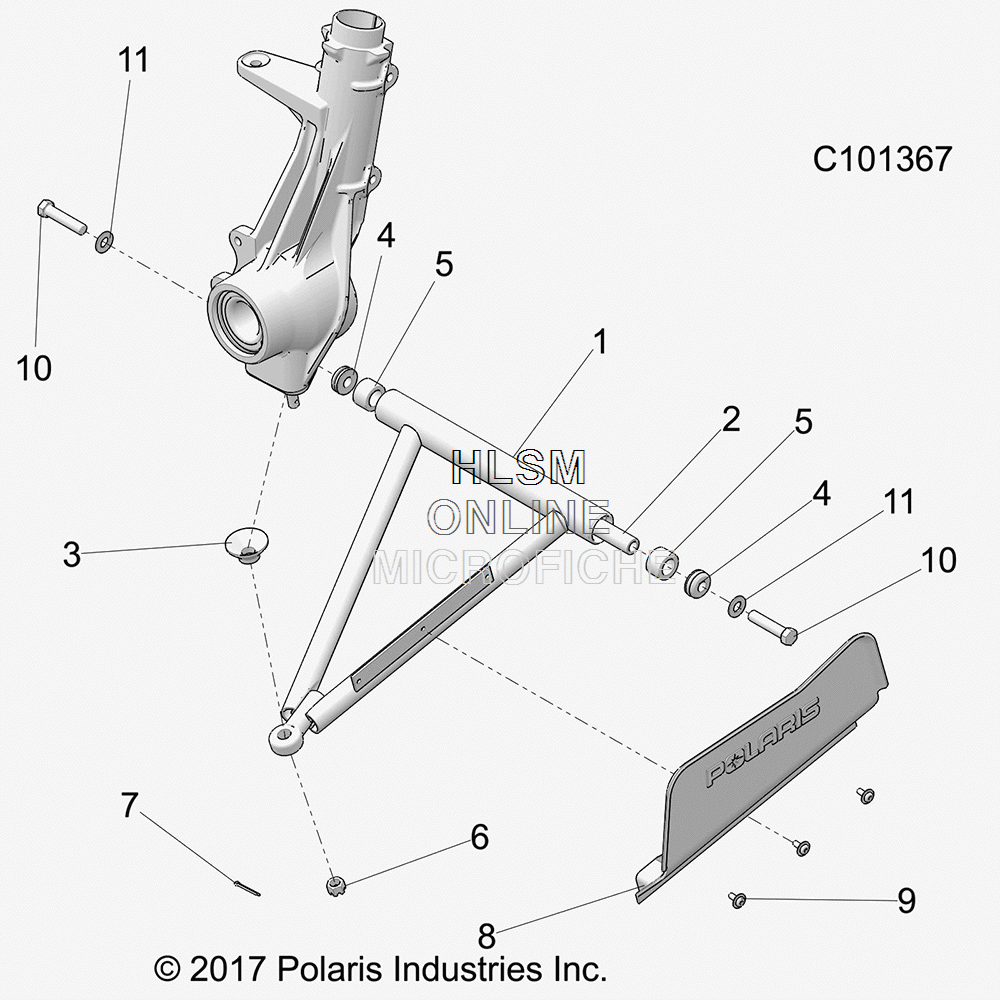

A-ARMS - FRONT W/ STRUT MOUNTING для Polaris SPORTSMAN 570 EU EPS (SAGE BRUSH GREEN METALLIC) [A18SEE57F1] - 2018 года выпуска`
-
№АртикулНазвание
-
11023758-458 WELD-LCA, S, FRONT, LEFT HAND, MATTE BLACKWELD-LCA, S, FRONT, LEFT HAND, MATTE BLACK
-
11023761-458 WELD-LCA, S, FRONT, RIGHT HAND, MATTE BLACKWELD-LCA, S, FRONT, RIGHT HAND, MATTE BLACK
-
25141329 SHAFT-A-ARM, SEALED, C-BORESHAFT-A-ARM, SEALED, C-BORE
-
35412658 BOOT-BALLJOINT, GREASELESS, STRTBOOT-BALLJOINT, GREASELESS, STRT
-
41543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
55452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD, CV FRONT, BLACK, LEFT HANDSHIELD, CV FRONT, BLACK, LEFT HAND
-
85435029-070 SHIELD, CV FRONT, BLACK, RIGHT HANDSHIELD, CV FRONT, BLACK, RIGHT HAND
-
97512084 SCREWSCREW
-
107520340 SCREWSCREW
-
117556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
