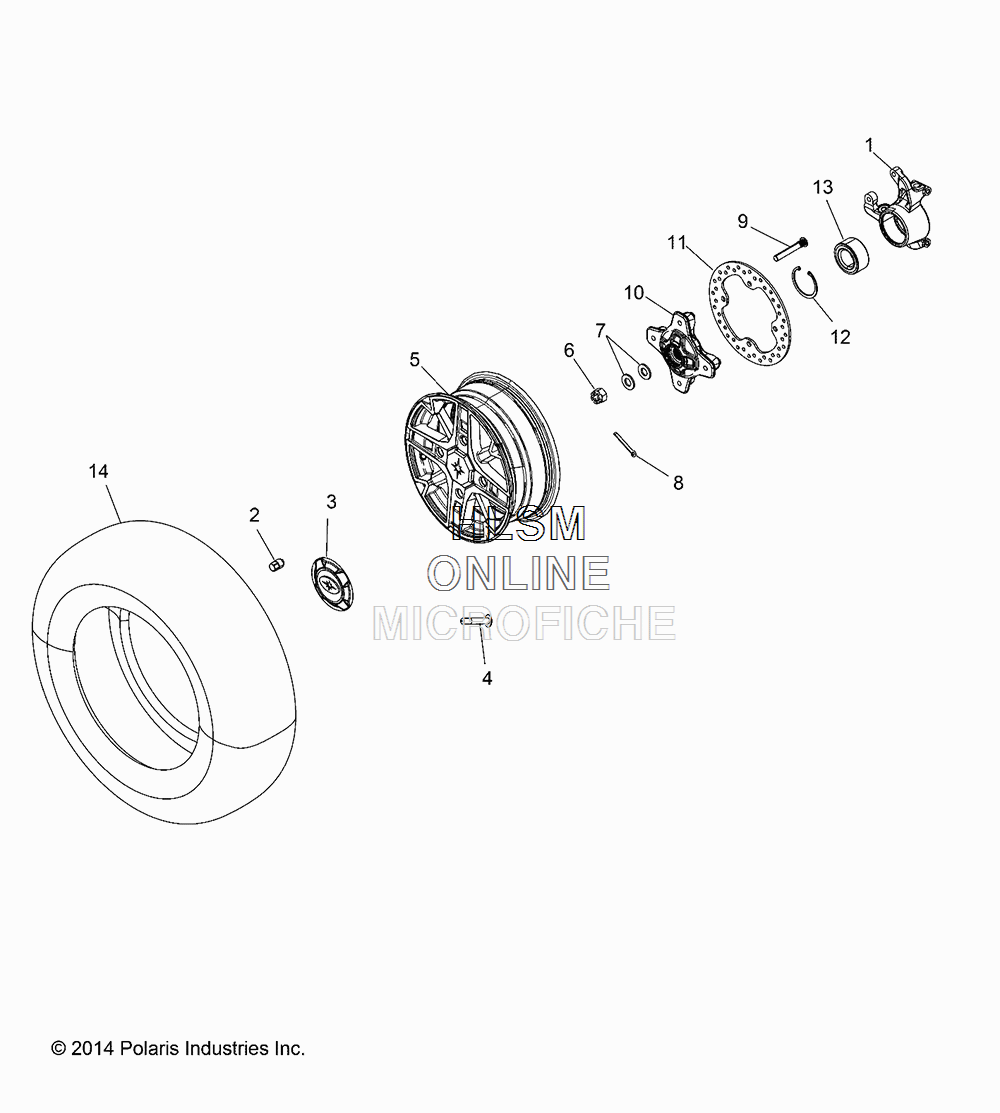

WHEEL - FRONT W/ HUB для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95EU] (EUROPE) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1822945 ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]
    ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]
  • 1
    1822946 ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]
    ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]
  • 1
    5136733 KNUCKLE, LEFT HAND
    KNUCKLE, LEFT HAND
  • 1
    5136734 KNUCKLE, RIGHT HAND
    KNUCKLE, RIGHT HAND
  • 2
    7547361 NUT, WHEEL
    NUT, WHEEL
  • 3
    1521999-067 CAP-RIM,GLOSS BLACK
    CAP-RIM,GLOSS BLACK
  • 4
    1525017 VALVE, RIM
    VALVE, RIM
  • 5
    1522100-067 RIM, FRONT, CAST [INCL. COVER]
    RIM, FRONT, CAST [INCL. COVER]
  • 6
    7547406 NUT, CASTLE
    NUT, CASTLE
  • 7
    7555796 WASHER, CONE
    WASHER, CONE
  • 8
    7661404 PIN, COTTER
    PIN, COTTER
  • 9
    7518671 STUD, WHEEL
    STUD, WHEEL
  • 10
    5135499 HUB, WHEEL
    HUB, WHEEL
  • 11
    5250205 DISC, BRAKE,246MM OD
    DISC, BRAKE,246MM OD
  • 12
    7710440 RING, RETAINING
    RING, RETAINING
  • 13
    3514699 BEARING, BALL, SEALED
    BEARING, BALL, SEALED
  • 14
    5415792 TIRE-CARL PXT,AT26X9R14,EMARK
    TIRE-CARL PXT,AT26X9R14,EMARK
