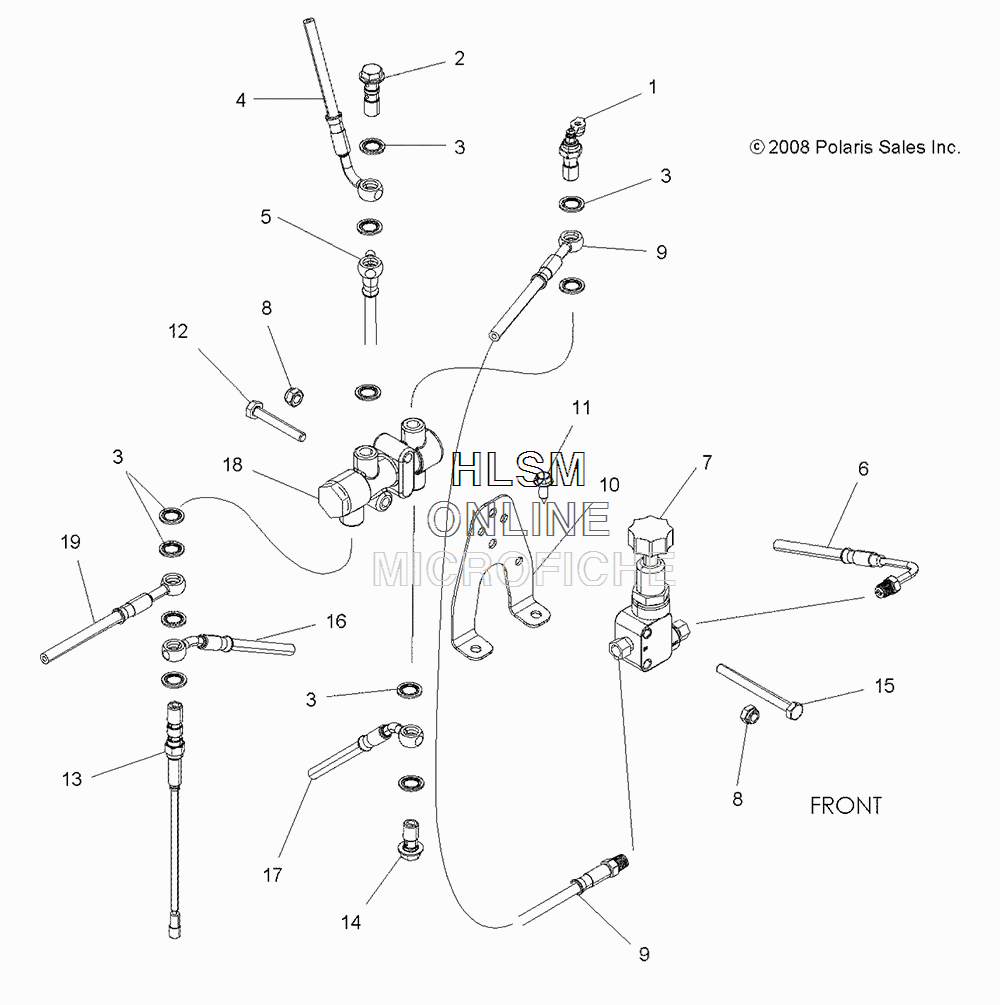

BRAKE - VALVE SYSTEM для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95EU] (EUROPE) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911112 BOLT, BANJO W/BLEEDER, 10MMX1.25
    BOLT, BANJO W/BLEEDER, 10MMX1.25
  • 2
    1911194 BOLT, BANJO, DOUBLE
    BOLT, BANJO, DOUBLE
  • 3
    5413212 SEAL
    SEAL
  • 4
    1912659 LINE-BRK, HBMC TO DIST
    LINE-BRK, HBMC TO DIST
  • 5
    1913018 LINE-BRK,REAR AUX
    LINE-BRK,REAR AUX
  • 6
    1913019 LINE-BRK,REAR SVC
    LINE-BRK,REAR SVC
  • 7
    1911109 VALVE, REDUCING
    VALVE, REDUCING
  • 8
    7542122 NUT, NYLOK
    NUT, NYLOK
  • 9
    1912658 LINE-BRK, DIST-P/VALVE
    LINE-BRK, DIST-P/VALVE
  • 10
    5252667 BRACKET, JUNCTION BLOCK
    BRACKET, JUNCTION BLOCK
  • 11
    7518513 BOLT
    BOLT
  • 12
    7519682 SCREW
    SCREW
  • 13
    4014225 SWITCH, DOUBLE BANJO
    SWITCH, DOUBLE BANJO
  • 14
    1910958 BOLT, BANJO 10MMX1.25
    BOLT, BANJO 10MMX1.25
  • 15
    7519012 SCREW
    SCREW
  • 16
    1913016 LINE, FRONT, LEFT
    LINE, FRONT, LEFT
  • 17
    1912660 LINE-BRK,M/C-DIST
    LINE-BRK,M/C-DIST
  • 18
    1911185 BLOCK, DISTRIBUTION
    BLOCK, DISTRIBUTION
  • 19
    1913017 LINE, FRONT, RIGHT
    LINE, FRONT, RIGHT
