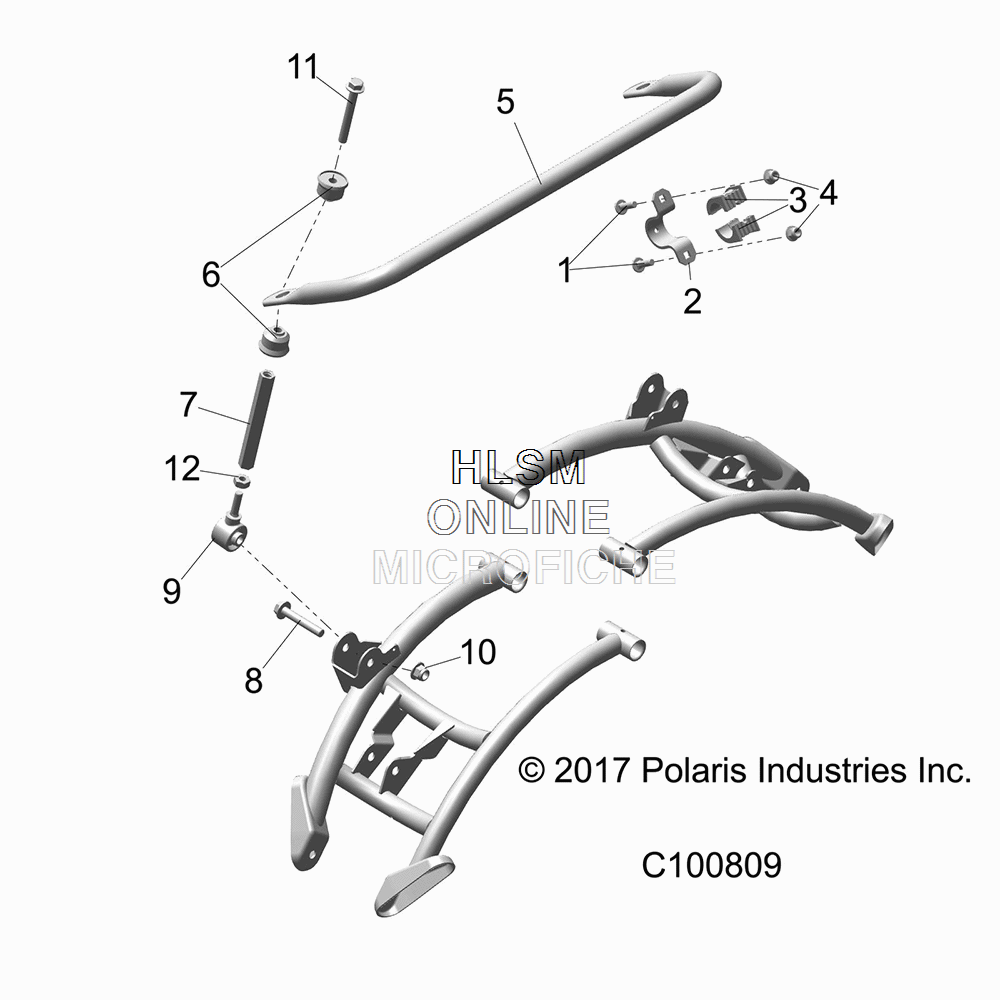

SUSPENSION - TORSION BAR для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95CU] - 2018 года выпуска`
-
№АртикулНазвание
-
17519324 BOLT, CARRIAGEBOLT, CARRIAGE
-
25257028 BRACKET, STEERING BUSHING, UPPERBRACKET, STEERING BUSHING, UPPER
-
35439731 BUSHING-UPPER STEERING,1 INBUSHING-UPPER STEERING,1 IN
-
47547317 NUT, FLANGENUT, FLANGE
-
55336853-458 TUBE-STABILIZER,FORMED,MATTE BLACKTUBE-STABILIZER,FORMED,MATTE BLACK
-
65414877 BUSHINGBUSHING
-
75138936 ROD-LINKAGE,STABILIZER,METRICROD-LINKAGE,STABILIZER,METRIC
-
87518826 SCR-HXFL-M10X1.25X60 10.9 ZODSCR-HXFL-M10X1.25X60 10.9 ZOD
-
97061241 ROD-ENDROD-END
-
107547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
-
117519896 SCR-HXFL-M10X1.5X75 8.8 ZY3 NYSCR-HXFL-M10X1.5X75 8.8 ZY3 NY
-
127547424 NUT-M10X1.5 8.8 HX ZODNUT-M10X1.5 8.8 HX ZOD
