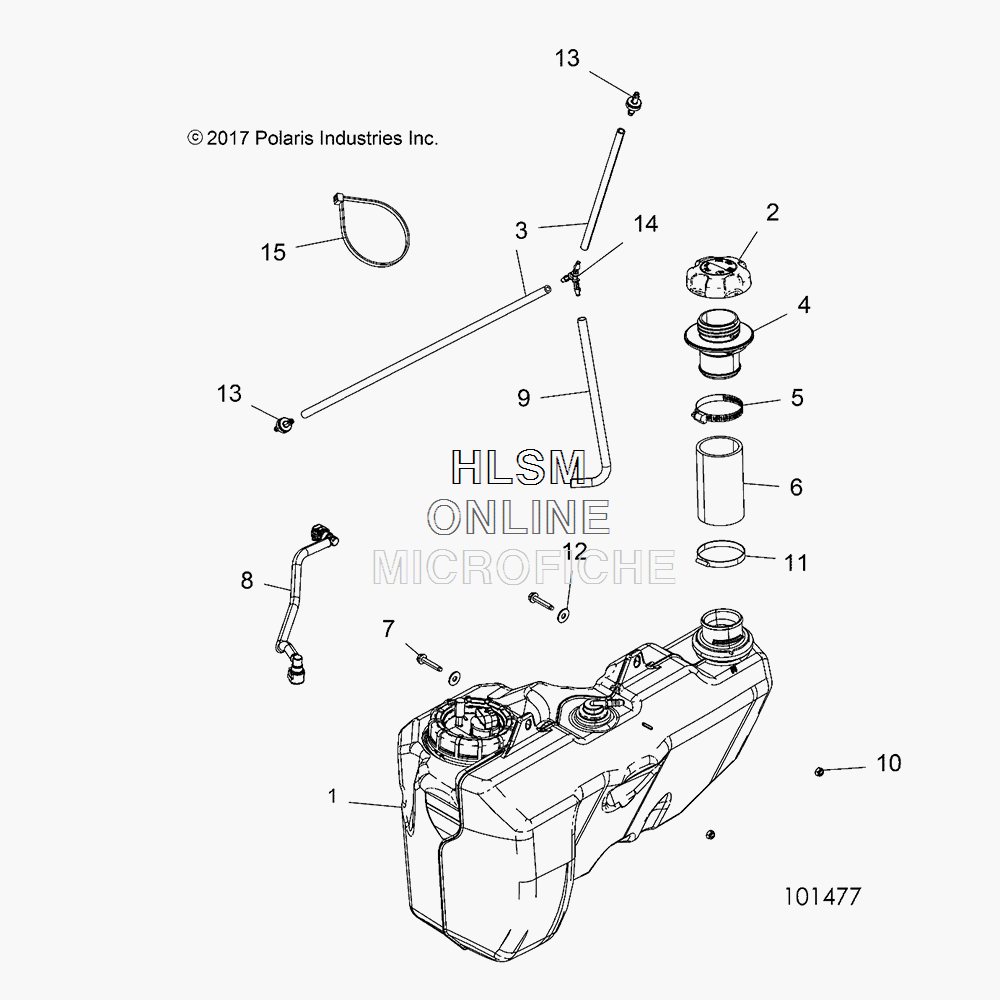

FUEL TANK для Polaris SPORTSMAN 1000 TOURING TRACTOR (TURBO SILVER) [A18SYS95CU] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2207670 FUEL PUMP,SERVICE KIT,ATV TWIN [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]
    FUEL PUMP,SERVICE KIT,ATV TWIN [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]
  • 1
    2521706 ASM., FUEL TANK W/PUMP, 4 BAR [INCL. PUMP]
    ASM., FUEL TANK W/PUMP, 4 BAR [INCL. PUMP]
  • 2
    5439075 CAP, GAS TANK [INCL. GASKET]
    CAP, GAS TANK [INCL. GASKET]
  • 3
    8450040-600 FUEL LINE-1/4 ID (SVC),600 CM
    FUEL LINE-1/4 ID (SVC),600 CM
  • 4
    5436898 INLET, FUEL
    INLET, FUEL
  • 5
    7080413 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 6
    5413142 HOSE, FUEL FILL
    HOSE, FUEL FILL
  • 7
    7519202 SCREW, FLANGE
    SCREW, FLANGE
  • 8
    2521315 ASM., FUEL LINE
    ASM., FUEL LINE
  • 9
    8450040-600 FUEL LINE-1/4 ID (SVC),600 CM
    FUEL LINE-1/4 ID (SVC),600 CM
  • 10
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 11
    7081413 CLAMP, CONSTANT TENSION
    CLAMP, CONSTANT TENSION
  • 12
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 13
    7052390 VALVE, CHECK, VACUUM
    VALVE, CHECK, VACUUM
  • 14
    7052589 FITTING, Y
    FITTING, Y
  • 15
    7080761 STRAP-PANDUIT,14 IN
    STRAP-PANDUIT,14 IN
