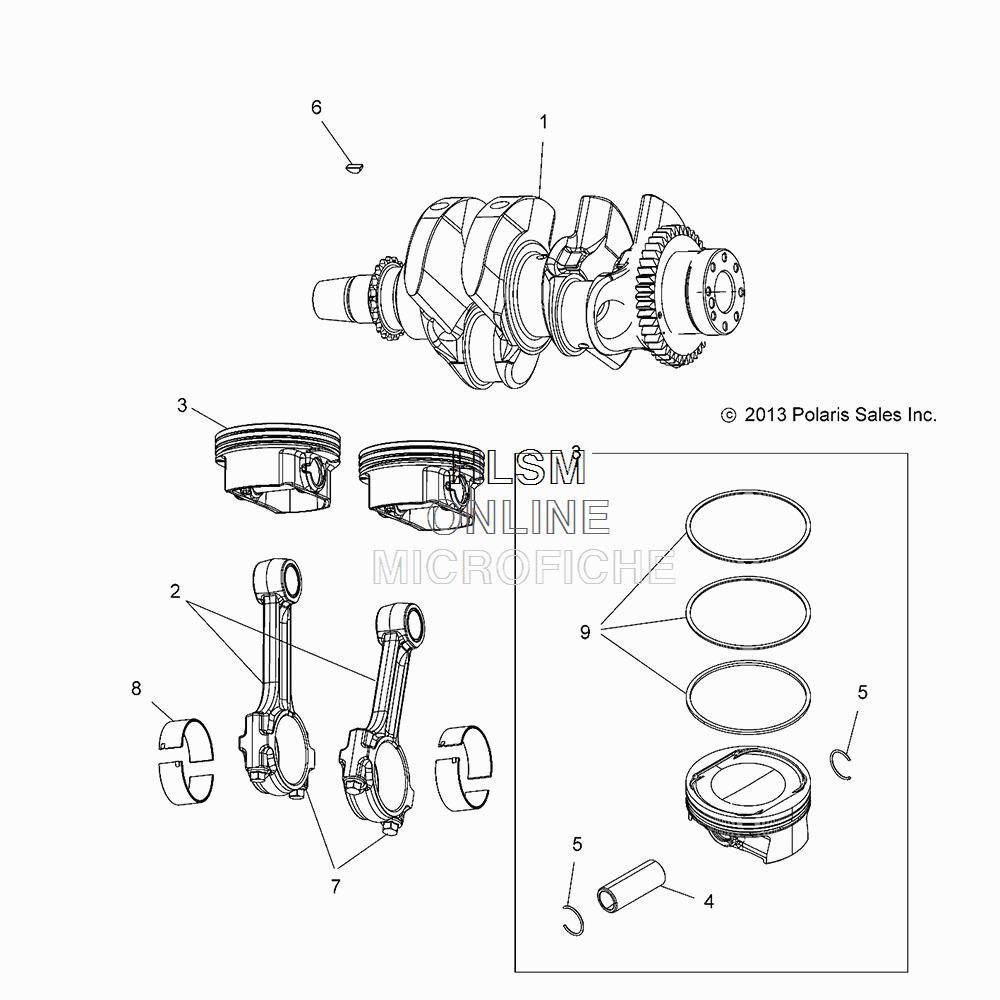

CRANKSHAFT W/ CYLINDER для Polaris SCRAMBLER 1000 XP ZUG (HAVASU RED PEARL) [A18SVS95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2205143 KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS)
    KIT, CRANKSHAFT (INCL. 4, CRANK, MAIN BEARINGS)
  • 2
    2204634 KIT, CONNECTING ROD (INCL. 7, 8, ROD, CAP, BUSHING)
    KIT, CONNECTING ROD (INCL. 7, 8, ROD, CAP, BUSHING)
  • 2
    7556569 BUSHING, PISTON PIN
    BUSHING, PISTON PIN
  • 3
    2205145 KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)
    KIT, PISTON (INCL. PISTON, PIN, CLIPS, ALL RINGS)
  • 6
    7721122 KEY, WOODRUFF
    KEY, WOODRUFF
  • 7
    7519263 BOLT
    BOLT
  • 8
    3514989 BEARING, CONNECTING ROD
    BEARING, CONNECTING ROD
  • 8
    3514989-015 BEARING, CONNECTING ROD, RED
    BEARING, CONNECTING ROD, RED
  • 8
    3514989-016 BEARING, CONNECTING ROD, WHITE
    BEARING, CONNECTING ROD, WHITE
  • 8
    3514989-027 BEARING, CONNECTING ROD, BLUE
    BEARING, CONNECTING ROD, BLUE
  • 8
    3514989-053 BEARING, CONNECTING ROD, YELLOW
    BEARING, CONNECTING ROD, YELLOW
  • 9
    2205146 KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)
    KIT, PISTON RINGS (CONTAINS UPPER, LOWER, OIL CONTROL RING)
