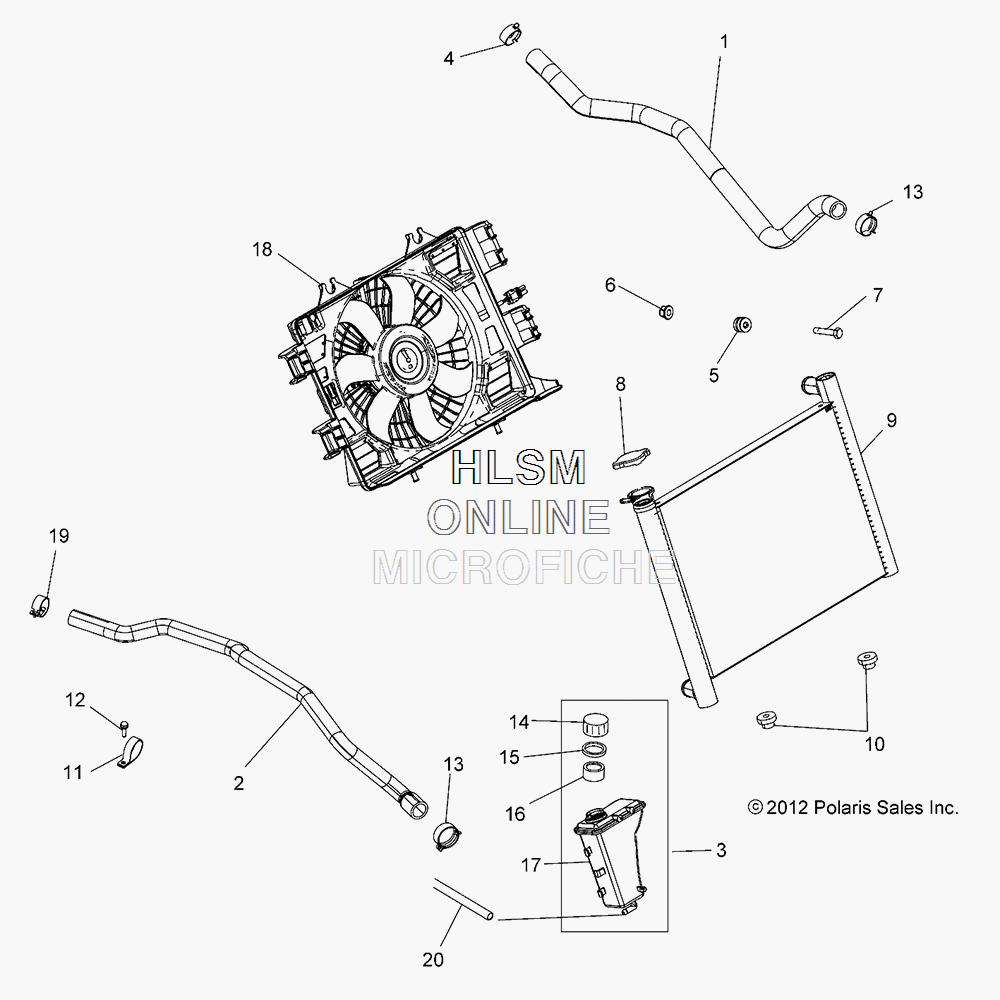

COOLING SYSTEM для Polaris SCRAMBLER 1000 XP ZUG (HAVASU RED PEARL) [A18SVS95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5414505 HOSE, RADIATOR, ENGINE OUT, 25MM
    HOSE, RADIATOR, ENGINE OUT, 25MM
  • 2
    5414391 HOSE, RADIATOR, ENGINE IN, 25MM
    HOSE, RADIATOR, ENGINE IN, 25MM
  • 3
    1240406 ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17, 20)
    ASM., BOTTLE, COOLANT RECOVERY (INCL. 14-17, 20)
  • 4
    7080844 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 5
    5413509 ASM., GROMMET AND INSERT
    ASM., GROMMET AND INSERT
  • 6
    7547274 NUT, NYLOK
    NUT, NYLOK
  • 7
    7519202 SCR-HXFL-M6X1.0X30, RIE, DGPNT
    SCR-HXFL-M6X1.0X30, RIE, DGPNT
  • 8
    1240466 CAP, PRESSURE, 13 PSI
    CAP, PRESSURE, 13 PSI
  • 9
    1240702 ASM., RADIATOR (INCL. 3, 5, 8-10, 18)
    ASM., RADIATOR (INCL. 3, 5, 8-10, 18)
  • 9
    1240706 RADIATOR-15 FPI, 25MM
    RADIATOR-15 FPI, 25MM
  • 10
    5413510 GROMMET, RADIATOR MOUNT, LOWER
    GROMMET, RADIATOR MOUNT, LOWER
  • 11
    7080851 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    7518513 SCREW
    SCREW
  • 13
    7080843 CLAMP, SPRINGBAND
    CLAMP, SPRINGBAND
  • 14
    5430743 CAP, OVERFLOW BOTTLE, DRILLED
    CAP, OVERFLOW BOTTLE, DRILLED
  • 15
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 16
    5433774 PLUG, CAP
    PLUG, CAP
  • 17
    5437257 BOTTLE, COOLANT RECOVERY
    BOTTLE, COOLANT RECOVERY
  • 18
    2412286 FAN-12 IN
    FAN-12 IN
  • 19
    7081192 CLAMP, HOSE, WORM DRIVE, 25-40MM
    CLAMP, HOSE, WORM DRIVE, 25-40MM
  • 20
    8450128-27 LINE, COOLANT, 27CM
    LINE, COOLANT, 27CM
