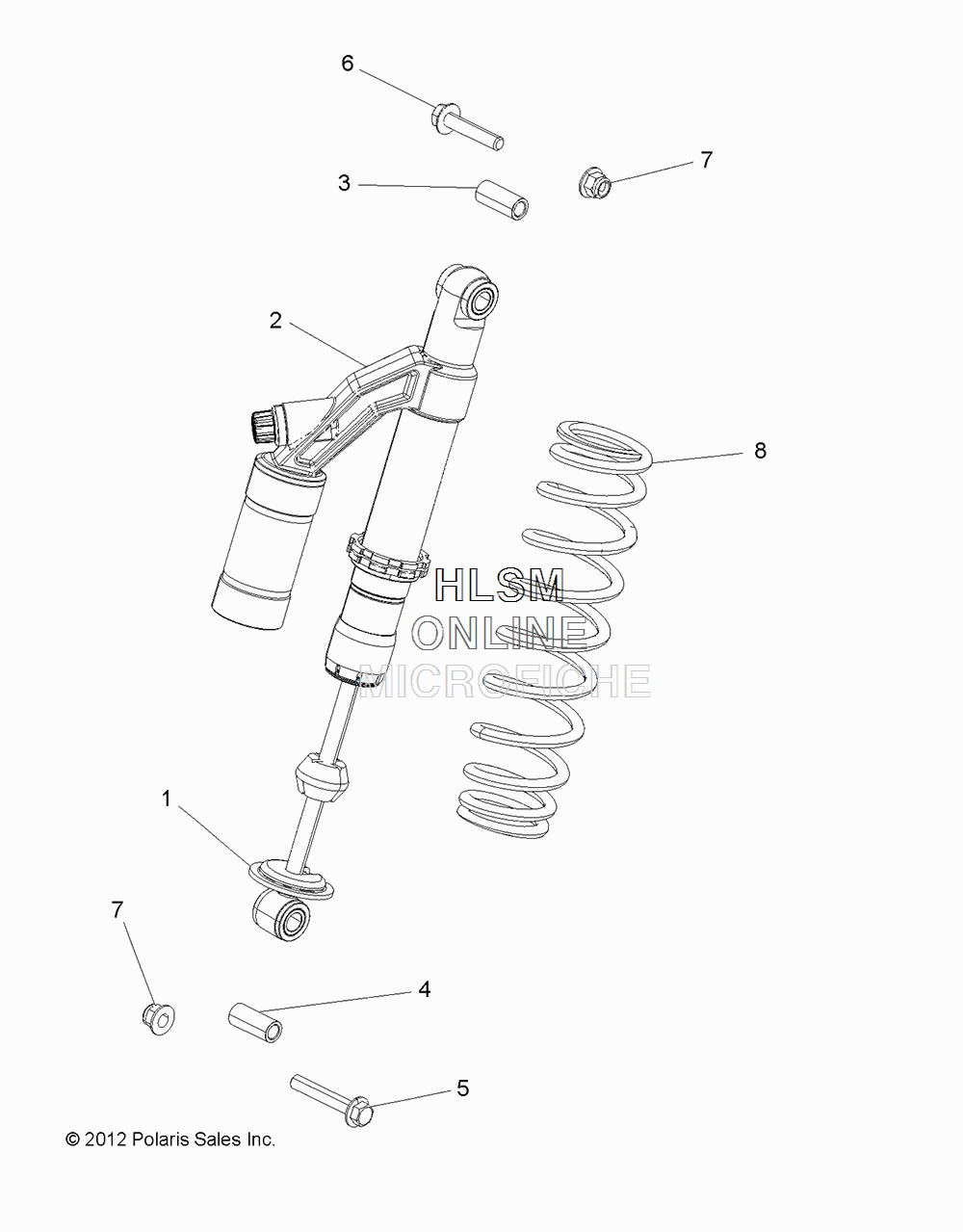

SHOCK ABSORBER - REAR MOUNTING для Polaris SCRAMBLER 1000 XP EU (HAVASU RED PEARL) [A18SVE95FR] - 2018 года выпуска
-
№АртикулНазвание
-
15251753 RETAINER, SPRINGRETAINER, SPRING
-
27044080 SHOCK, REAR, LEFT HANDSHOCK, REAR, LEFT HAND
-
27044081 SHOCK, REAR, RIGHT HANDSHOCK, REAR, RIGHT HAND
-
35334876 SLEEVE, SHOCKSLEEVE, SHOCK
-
45337092 SLEEVE, SHOCK, 1.40 INSLEEVE, SHOCK, 1.40 IN
-
57518826 BOLT, FLANGEBOLT, FLANGE
-
67518971 SCREWSCREW
-
77547313 NUT, FLANGENUT, FLANGE
-
87044719-630 SPRING, LIMESPRING, LIME
