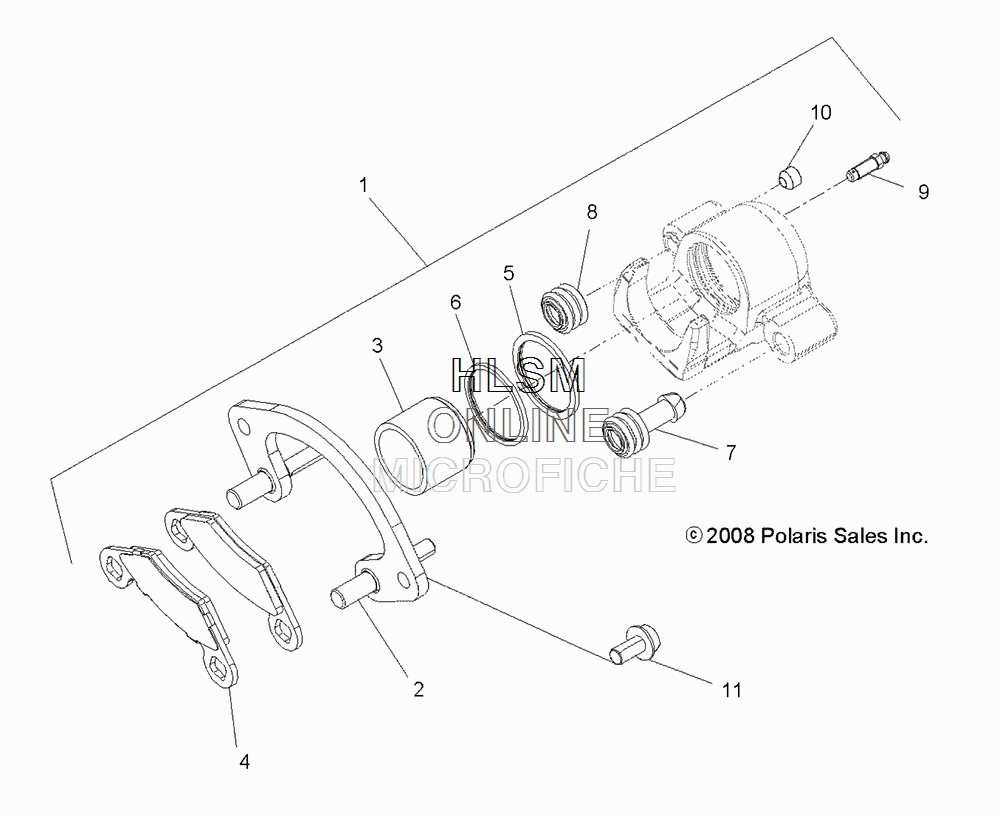

BRAKE - FRONT CALIPER для Polaris SCRAMBLER 1000 XP EU (HAVASU RED PEARL) [A18SVE95FR] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1911301 ASM., BRAKE CALIPER, LEFT HAND, 1.25 IN (INCL. 2-10)
    ASM., BRAKE CALIPER, LEFT HAND, 1.25 IN (INCL. 2-10)
  • 1
    1911302 ASM., BRAKE CALIPER, RIGHT HAND, 1.25 IN (INCL. 2-10)
    ASM., BRAKE CALIPER, RIGHT HAND, 1.25 IN (INCL. 2-10)
  • 2
    1911225 ASM., CALIPER MOUNT
    ASM., CALIPER MOUNT
  • 3
    5132405 PISTON, CALIPER, 1.25 IN
    PISTON, CALIPER, 1.25 IN
  • 4
    2203628 KIT, BRAKE PAD, 246MM (INCL. 2 PADS)
    KIT, BRAKE PAD, 246MM (INCL. 2 PADS)
  • 5
    5411596 SEAL, CALIPER, INNER, 1.25 IN
    SEAL, CALIPER, INNER, 1.25 IN
  • 6
    5411597 SEAL, CALIPER, OUTER, 1.25 IN
    SEAL, CALIPER, OUTER, 1.25 IN
  • 7
    5412505 BOOT, PIN BUSHING
    BOOT, PIN BUSHING
  • 8
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 9
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 10
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 11
    7518760 BOLT, FLANGE (CALIPER MOUNTING)
    BOLT, FLANGE (CALIPER MOUNTING)
