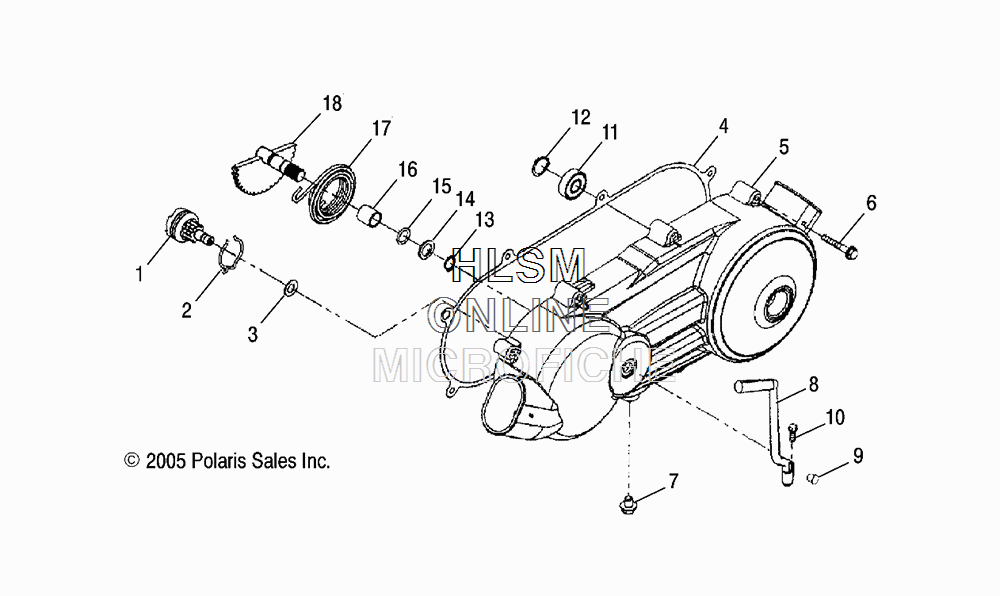

CRANKCASE COVER- LEFT HAND для Polaris PHOENIX 200 (AVALANCHE GREY) [A18YAP20N8] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0452365 GEAR, KICK START, DRIVEN
    GEAR, KICK START, DRIVEN
  • 2
    0452366 SPRING, KICK START GEAR
    SPRING, KICK START GEAR
  • 3
    0452367 WASHER, FLAT
    WASHER, FLAT
  • 4
    0455348 GASKET-CRANK CASE COVER
    GASKET-CRANK CASE COVER
  • 5
    0453450 COVER, CLUTCH, LEFT HAND
    COVER, CLUTCH, LEFT HAND
  • 6
    0452331 BOLT
    BOLT
  • 7
    0452126 BOLT
    BOLT
  • 8
    0452372 ASM., KICK START
    ASM., KICK START
  • 9
    0451746 CAP, SHAFT, KICK STARTER
    CAP, SHAFT, KICK STARTER
  • 10
    0451704 BOLT
    BOLT
  • 11
    0454248 BEARING, BALL,PHOENIX
    BEARING, BALL,PHOENIX
  • 12
    0452339 CLIP, RETAINER
    CLIP, RETAINER
  • 13
    0452364 CLIP, RETAINER
    CLIP, RETAINER
  • 14
    0452363 WASHER, FLAT
    WASHER, FLAT
  • 15
    0452394 O-RING
    O-RING
  • 16
    0452361 SPACER, KICK START
    SPACER, KICK START
  • 17
    0452360 SPRING, KICK START
    SPRING, KICK START
  • 18
    0453548 SPINDLE, KICK START
    SPINDLE, KICK START
