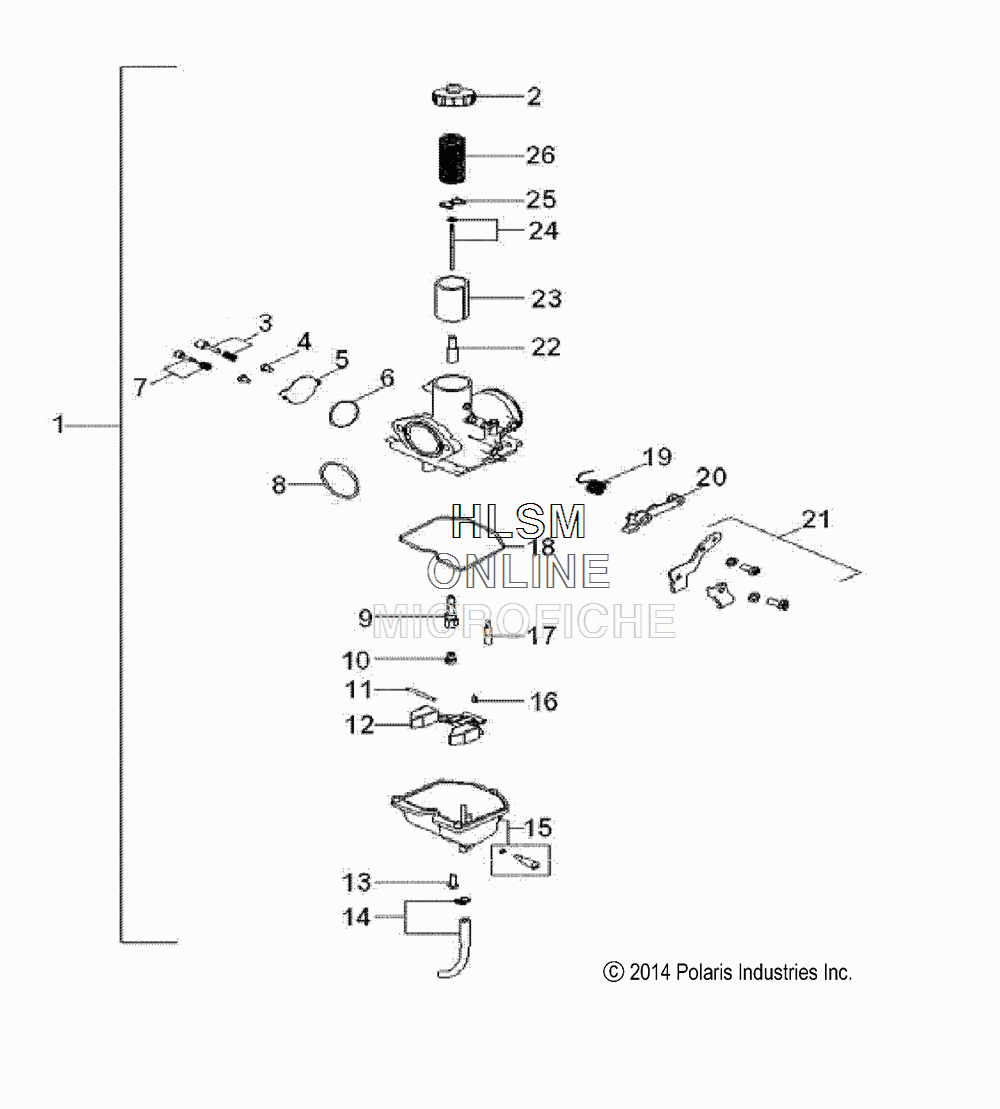

CARBURETOR для Polaris PHOENIX 200 (AVALANCHE GREY) [A18YAP20N8] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    0455075 ASM-CARB,15 PHOENIX 200 [INCL. ALL]
    ASM-CARB,15 PHOENIX 200 [INCL. ALL]
  • 2
    0452544 ASM., CAP
    ASM., CAP
  • 3
    0455076 ASM., SCREW, AIR,15 PHOENIX
    ASM., SCREW, AIR,15 PHOENIX
  • 4
    0452541 ASM., SCREW
    ASM., SCREW
  • 5
    0452547 COVER, DIAPHRAGM
    COVER, DIAPHRAGM
  • 6
    0452550 O-RING (O.D. 33.5MM)
    O-RING (O.D. 33.5MM)
  • 7
    0452549 ASM., SCREW, IDLE
    ASM., SCREW, IDLE
  • 8
    0452536 O-RING (O.D. 33.5MM)
    O-RING (O.D. 33.5MM)
  • 9
    0452545 VALVE, NEEDLE
    VALVE, NEEDLE
  • 10
    0452854 JET, MAIN
    JET, MAIN
  • 11
    0452534 PIN, FLOAT
    PIN, FLOAT
  • 12
    0452546 FLOAT
    FLOAT
  • 13
    0452540 ASM., SCREW
    ASM., SCREW
  • 14
    0452552 ASM., DRAIN TUBE
    ASM., DRAIN TUBE
  • 15
    0452535 FLOAT, BODY
    FLOAT, BODY
  • 16
    0452533 VALVE, FLOAT
    VALVE, FLOAT
  • 17
    0452553 JET, PILOT
    JET, PILOT
  • 18
    0455346 GASKET-CARB,FLOAT BOWL,PHOENIX
    GASKET-CARB,FLOAT BOWL,PHOENIX
  • 19
    0452543 SPRING
    SPRING
  • 20
    0452538 CHOKE, LEVER
    CHOKE, LEVER
  • 21
    0453080 SUPPORT, CABLE
    SUPPORT, CABLE
  • 22
    0452539 NEEDLE, JET
    NEEDLE, JET
  • 23
    0452554 THROTTLE, VALVE
    THROTTLE, VALVE
  • 24
    0452551 ASM., JET NEEDLE
    ASM., JET NEEDLE
  • 25
    0452542 CLIP, NEEDLE [USE POSITION #4]
    CLIP, NEEDLE [USE POSITION #4]
  • 26
    0453758 SPRING-CARB,PHOENIX
    SPRING-CARB,PHOENIX
