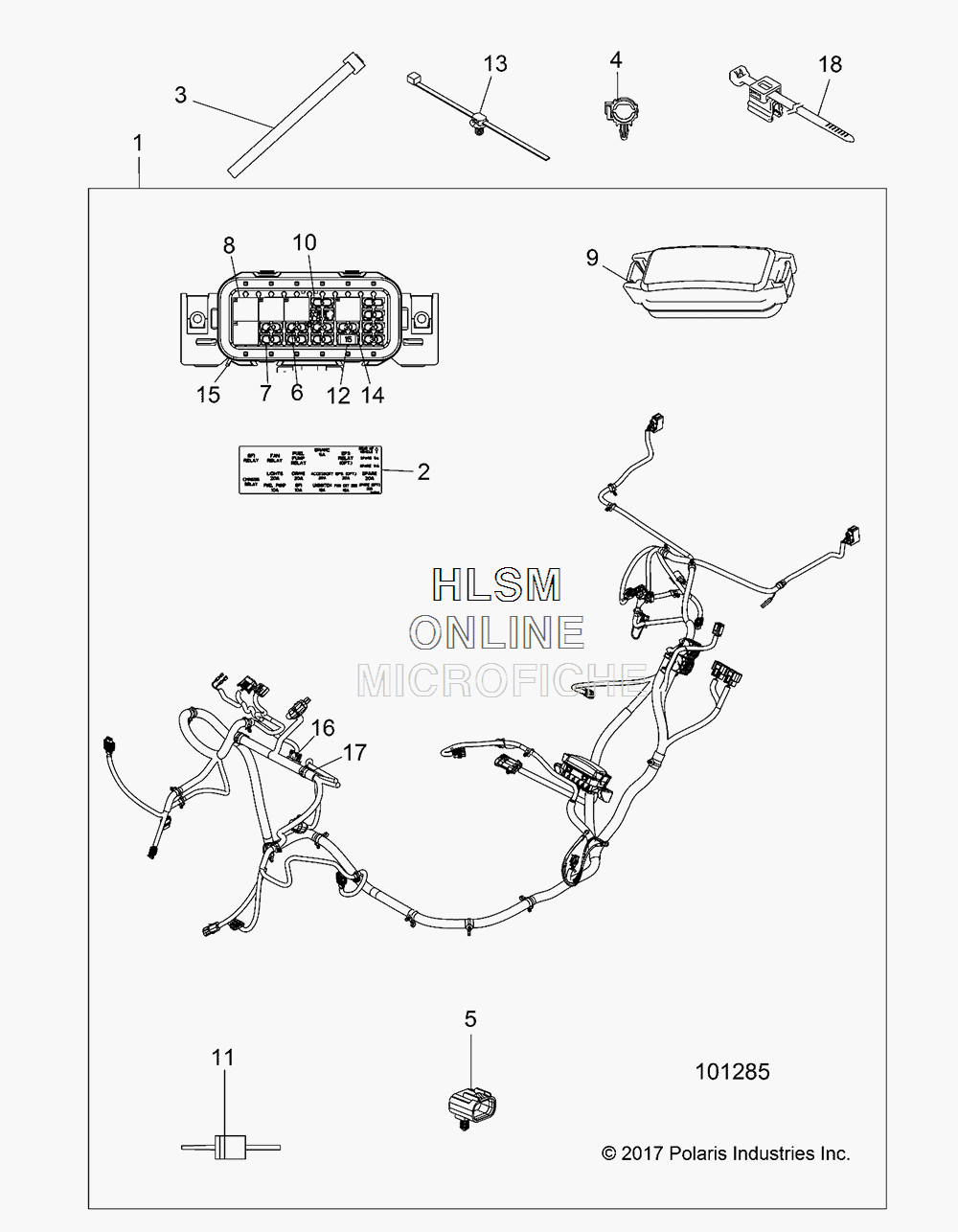

WIRE HARNESS для Polaris ACE 570 [A18DAE57B2] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2413939 HARNESS-CHASSIS, ACE 570 ETC PS
    HARNESS-CHASSIS, ACE 570 ETC PS
  • 2
    7182082 LABEL-FUSE BOX
    LABEL-FUSE BOX
  • 3
    7080138 CABLE TIE 7 IN
    CABLE TIE 7 IN
  • 3
    7080761 STRAP-PANDUIT, 14 IN
    STRAP-PANDUIT, 14 IN
  • 4
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 5
    4012170 COVER, DIAGNOSTIC W/CLIP
    COVER, DIAGNOSTIC W/CLIP
  • 6
    2434017 FUSE, PARK, 20 AMP
    FUSE, PARK, 20 AMP
  • 7
    2434016 FUSE, IGNITION, 10 AMP
    FUSE, IGNITION, 10 AMP
  • 8
    4011283 RELAY, SEALED
    RELAY, SEALED
  • 9
    4015011 COVER, FUSEBOX
    COVER, FUSEBOX
  • 10
    4011652 FUSE, 5A
    FUSE, 5A
  • 11
    2411035 DIODE, 6 AMP W/TERMINALS
    DIODE, 6 AMP W/TERMINALS
  • 12
    4011406 BREAKER, 15 AMP
    BREAKER, 15 AMP
  • 13
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 14
    2434015 FUSE, MAIN, 30 AMP
    FUSE, MAIN, 30 AMP
  • 15
    4015056 FUSEBOX
    FUSEBOX
  • 16
    4014236 CAP, EPS POWER
    CAP, EPS POWER
  • 17
    4014235 CAP, EPS SIGNAL
    CAP, EPS SIGNAL
  • 18
    7081808 STRAP-CABLE TIE W/EDGE CLIP
    STRAP-CABLE TIE W/EDGE CLIP
