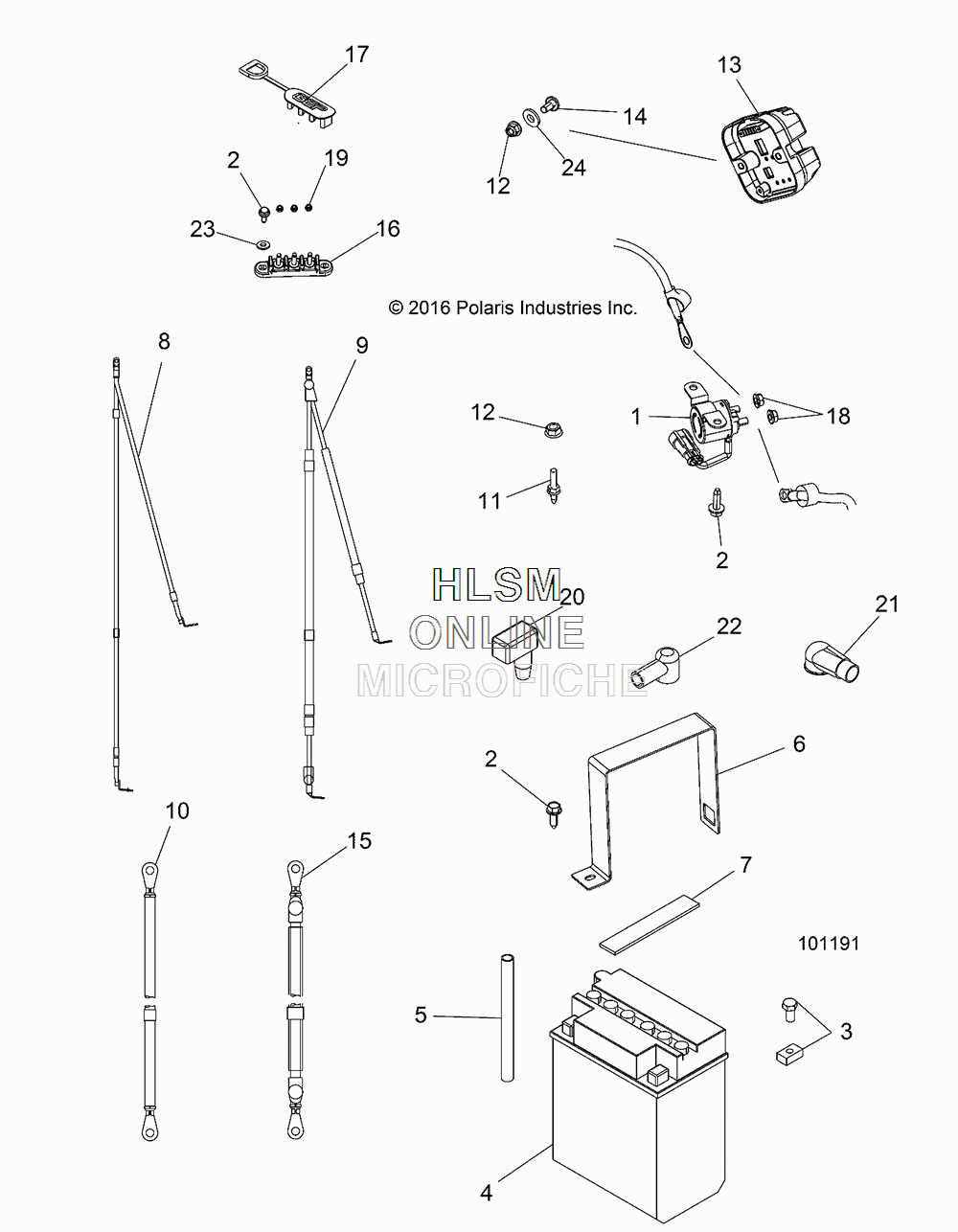

BATTERY для Polaris ACE 570 [A18DAE57B2] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    4012001 SOLENOID, STARTER
    SOLENOID, STARTER
  • 2
    7518529 SCREW
    SCREW
  • 3
    2202213 KIT, BATTERY BOLT
    KIT, BATTERY BOLT
  • 4
    4140006 BATTERY, 14 AH
    BATTERY, 14 AH
  • 4
    4015955 BATTERY-SEALED, 32 AH, 500 CCA (OPT)
    BATTERY-SEALED, 32 AH, 500 CCA (OPT)
  • 5
    5435030 TUBE, BATTERY VENT, 305MM
    TUBE, BATTERY VENT, 305MM
  • 6
    5264056 BRKT-BATTERY STRAP
    BRKT-BATTERY STRAP
  • 7
    5810455 PAD, RACK MOUNT
    PAD, RACK MOUNT
  • 8
    4015545 CABLE-BATT, 6GA, BK, BAT/CHASS/TB
    CABLE-BATT, 6GA, BK, BAT/CHASS/TB
  • 9
    4015546 CABLE-BATT, 6GA, RD, BATT/SOL/TB
    CABLE-BATT, 6GA, RD, BATT/SOL/TB
  • 9
    7080761 STRAP, PANDUIT, 14 IN
    STRAP, PANDUIT, 14 IN
  • 10
    4014423-725 CABLE, BATTERY, FLAT
    CABLE, BATTERY, FLAT
  • 11
    7519333 STUD
    STUD
  • 12
    7547274 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 13
    4016868 REGULATOR-3PH, 50A, SERIES, HISPD
    REGULATOR-3PH, 50A, SERIES, HISPD
  • 14
    7520559 M6X1.0X30 CARRIAGE CL8.8 ZC CL
    M6X1.0X30 CARRIAGE CL8.8 ZC CL
  • 15
    4014424-830 CABLE, BATTERY, FLAT (INCL. 22)
    CABLE, BATTERY, FLAT (INCL. 22)
  • 16
    4015778 BLOCK-TERMINAL, 3 POST, TALL
    BLOCK-TERMINAL, 3 POST, TALL
  • 17
    4014659 COVER, TERMINAL BLOCK, 3 POST
    COVER, TERMINAL BLOCK, 3 POST
  • 18
    7546703 NUT
    NUT
  • 19
    7547341 NUT
    NUT
  • 20
    4014836 BOOT, BATTERY, RED
    BOOT, BATTERY, RED
  • 21
    4014994 BOOT, BATTERY, RED
    BOOT, BATTERY, RED
  • 22
    5410346 INSULATOR, CABLE
    INSULATOR, CABLE
  • 23
    7555748 WASHER-.28X.62-.14(RBR-BK)-Z
    WASHER-.28X.62-.14(RBR-BK)-Z
  • 24
    7670154 RETAINER-BOLT, 1/4-20
    RETAINER-BOLT, 1/4-20
