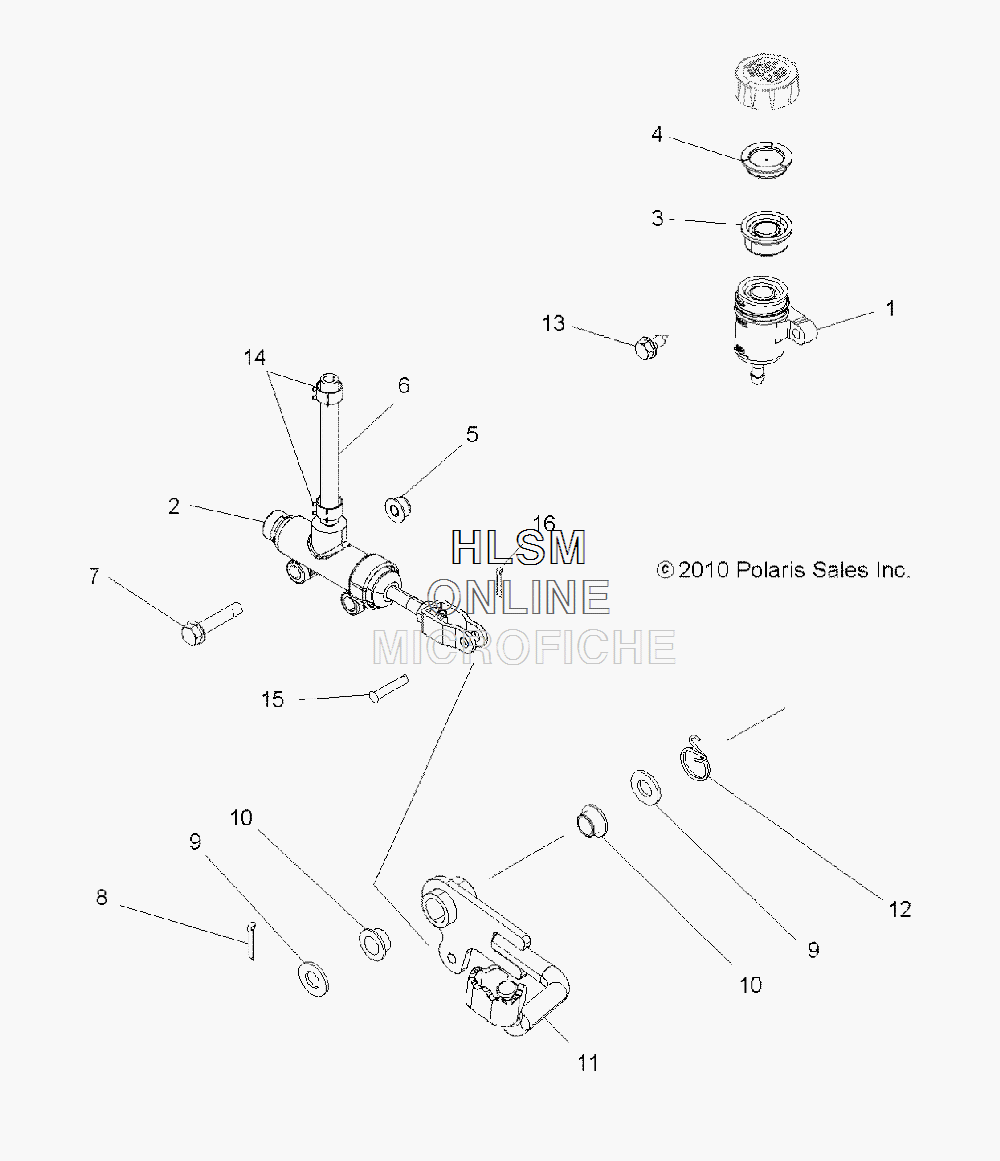

BRAKE - PEDAL W/ MASTER CYLINDER для Polaris SPORTSMAN TOURING 570 EFI EPS MD WHITE LIGHTING [A17SDE57N2] - 2017 года выпуска`
-
№АртикулНазвание
-
11911224 ASM., RESERVOIR, BRAKE, REAR [INCL. CAP, 3,4]ASM., RESERVOIR, BRAKE, REAR [INCL. CAP, 3,4]
-
21911688 ASM., MASTER CYLINDER, BRAKE, FOOT [INCL. HOSE, CLAMPS]ASM., MASTER CYLINDER, BRAKE, FOOT [INCL. HOSE, CLAMPS]
-
35413262 DIAPHRAGM, RESERVOIR, BRAKEDIAPHRAGM, RESERVOIR, BRAKE
-
45437041 RING, RESERVOIR, BRAKERING, RESERVOIR, BRAKE
-
57542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
61911267-660 HOSE, RESERVOIRHOSE, RESERVOIR
-
77512126 BOLTBOLT
-
87661401 PIN, COTTERPIN, COTTER
-
97555919 WASHERWASHER
-
105433189 BUSHING, PIVOT, PEDALBUSHING, PIVOT, PEDAL
-
111911657-458 WELD-BRAKE,PEDAL,M.BLKWELD-BRAKE,PEDAL,M.BLK
-
127041750 SPRING, TORSIONSPRING, TORSION
-
137517312 SCREWSCREW
-
147080003 CLAMP, HOSECLAMP, HOSE
-
157661830 PIN, CLEVISPIN, CLEVIS
-
167661900 PIN, COTTERPIN, COTTER
