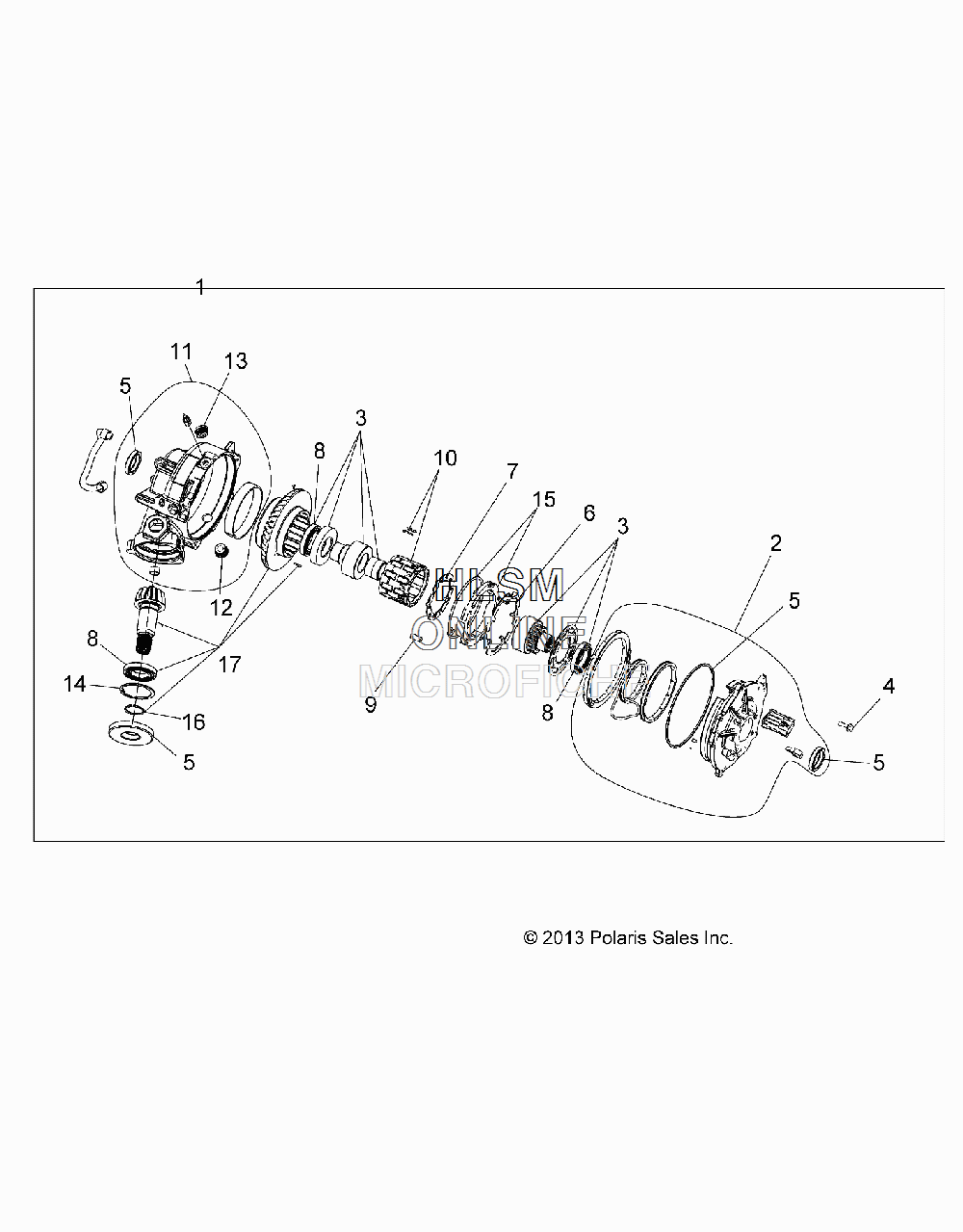

GEARCASE - FRONT для Polaris SPORTSMAN TOURING 570 EFI EPS MD WHITE LIGHTING [A17SDE57N2] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333371 ASM- GEARCASE FRONT, 12 POCKET [INCL. ALL]
    ASM- GEARCASE FRONT, 12 POCKET [INCL. ALL]
  • 2
    3235553 ASM- COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP,
    ASM- COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP,
  • 3
    3235554 ASM- OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
    ASM- OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]
  • 4
    3235469 COVER-FASTENERS [INCL. SCREWS]
    COVER-FASTENERS [INCL. SCREWS]
  • 5
    3235470 CONPLETE SEAL REPAIR [INCL. ALL SEALS]
    CONPLETE SEAL REPAIR [INCL. ALL SEALS]
  • 6
    3235485 4WD ARMATURE PLATE
    4WD ARMATURE PLATE
  • 7
    3235626 BD ARMATUREPLATE
    BD ARMATUREPLATE
  • 8
    3234390 BEARING
    BEARING
  • 9
    3235624 CAGE ROLLERS
    CAGE ROLLERS
  • 10
    3235625 ASM- ROLL CAGE
    ASM- ROLL CAGE
  • 11
    3235555 ASM- GEARCASE [INCL. COMPLETE SET OF ROLLERS]
    ASM- GEARCASE [INCL. COMPLETE SET OF ROLLERS]
  • 12
    3234412 PLUG DRAIN [INCL. CAGE AND COMPLETE SET OF CLIPS]
    PLUG DRAIN [INCL. CAGE AND COMPLETE SET OF CLIPS]
  • 13
    3234414 FILL PLUG [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]
    FILL PLUG [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]
  • 15
    3235712 TORSION SPRING & RETAINER [INCL. SPRING RETAINER, TORSION SPRING]
    TORSION SPRING & RETAINER [INCL. SPRING RETAINER, TORSION SPRING]
  • 17
    3235627 ASM-GEAR HOUSING, PINION GEAR & SNAP RINGS
    ASM-GEAR HOUSING, PINION GEAR & SNAP RINGS
