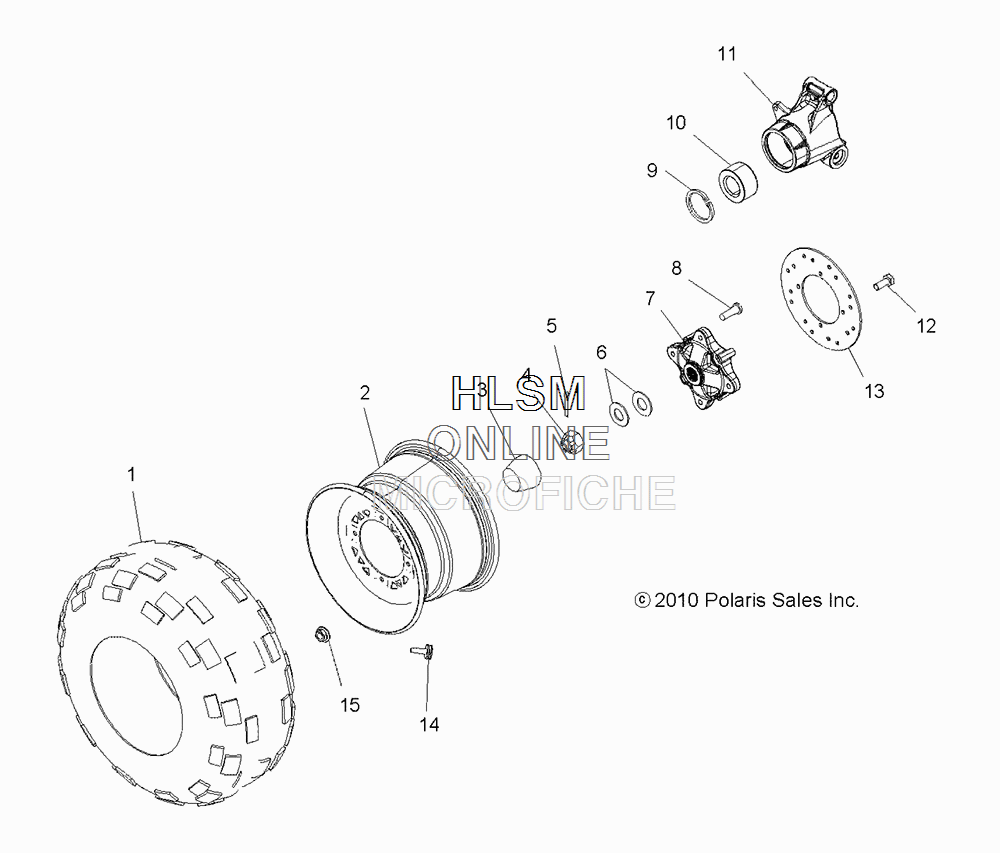

WHEEL - REAR W/ BRAKE DISK для Polaris SPORTSMAN 570 EPS ZUG SAGE BRUSH GREEN METALLIC [A17SES57F1] - 2017 года выпуска`
-
№АртикулНазвание
-
15415730 TIRE-25X11-12,489,E-MARKTIRE-25X11-12,489,E-MARK
-
21520457-067 RIM, REAR, BLACKRIM, REAR, BLACK
-
35413427 COVER, DUST, HUBCOVER, DUST, HUB
-
47547337 NUT, CASTLENUT, CASTLE
-
57661404 PIN, COTTERPIN, COTTER
-
67555796 WASHER, CONEWASHER, CONE
-
75135113 HUB, REAR WHEELHUB, REAR WHEEL
-
87518378 STUDSTUD
-
97710440 RING, RETAININGRING, RETAINING
-
103514635 BEARING, WHEELBEARING, WHEEL
-
115135563 CARRIER, BEARING, WHEELCARRIER, BEARING, WHEEL
-
127518903 SCR-HH-3/8-16X0.75 GR5 ZY3SCR-HH-3/8-16X0.75 GR5 ZY3
-
135248250 DISC-BRAKE,REAR,8.625X.188DISC-BRAKE,REAR,8.625X.188
-
141525017 VALVE, RIMVALVE, RIM
-
157547237 NUT, FLANGENUT, FLANGE
