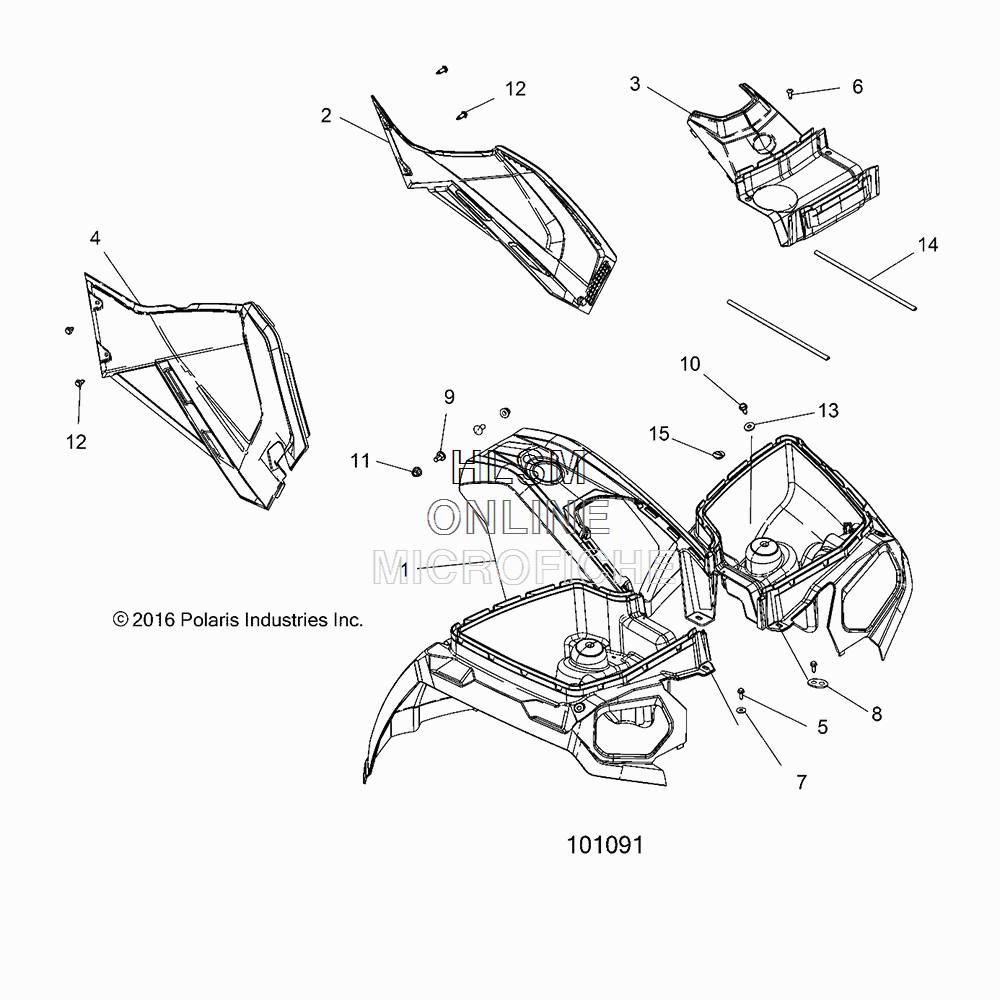

CAB - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 570 EPS ZUG SAGE BRUSH GREEN METALLIC [A17SES57F1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2636211-498 ASM-CAB,FR,SVC,TRG,EU,S.GRN [INCL. WARNING DECALS]
    ASM-CAB,FR,SVC,TRG,EU,S.GRN [INCL. WARNING DECALS]
  • 2
    5450521-498 PANEL, SIDE, LH, SAGE BRUSH GREEN METALLIC
    PANEL, SIDE, LH, SAGE BRUSH GREEN METALLIC
  • 3
    5439069-498 COVER, FRONT, SAGE BRUSH GREEN METALLIC
    COVER, FRONT, SAGE BRUSH GREEN METALLIC
  • 4
    2636441-498 ASM., PANEL/SHIELD, RH, SAGE BRUSH GREEN METALLIC
    ASM., PANEL/SHIELD, RH, SAGE BRUSH GREEN METALLIC
  • 5
    7512232 SCREW
    SCREW
  • 6
    7519045 SCREW
    SCREW
  • 7
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 8
    5258497 BRACKET, PLUG MOUNT
    BRACKET, PLUG MOUNT
  • 9
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 10
    7515399 SCREW
    SCREW
  • 11
    7542153 NUT, FLANGED, NYLOK
    NUT, FLANGED, NYLOK
  • 12
    7661855 RIVET
    RIVET
  • 13
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 14
    5521697-350 SEAL, BULB
    SEAL, BULB
  • 15
    5412981 PLUG, COMPARTMENT
    PLUG, COMPARTMENT
