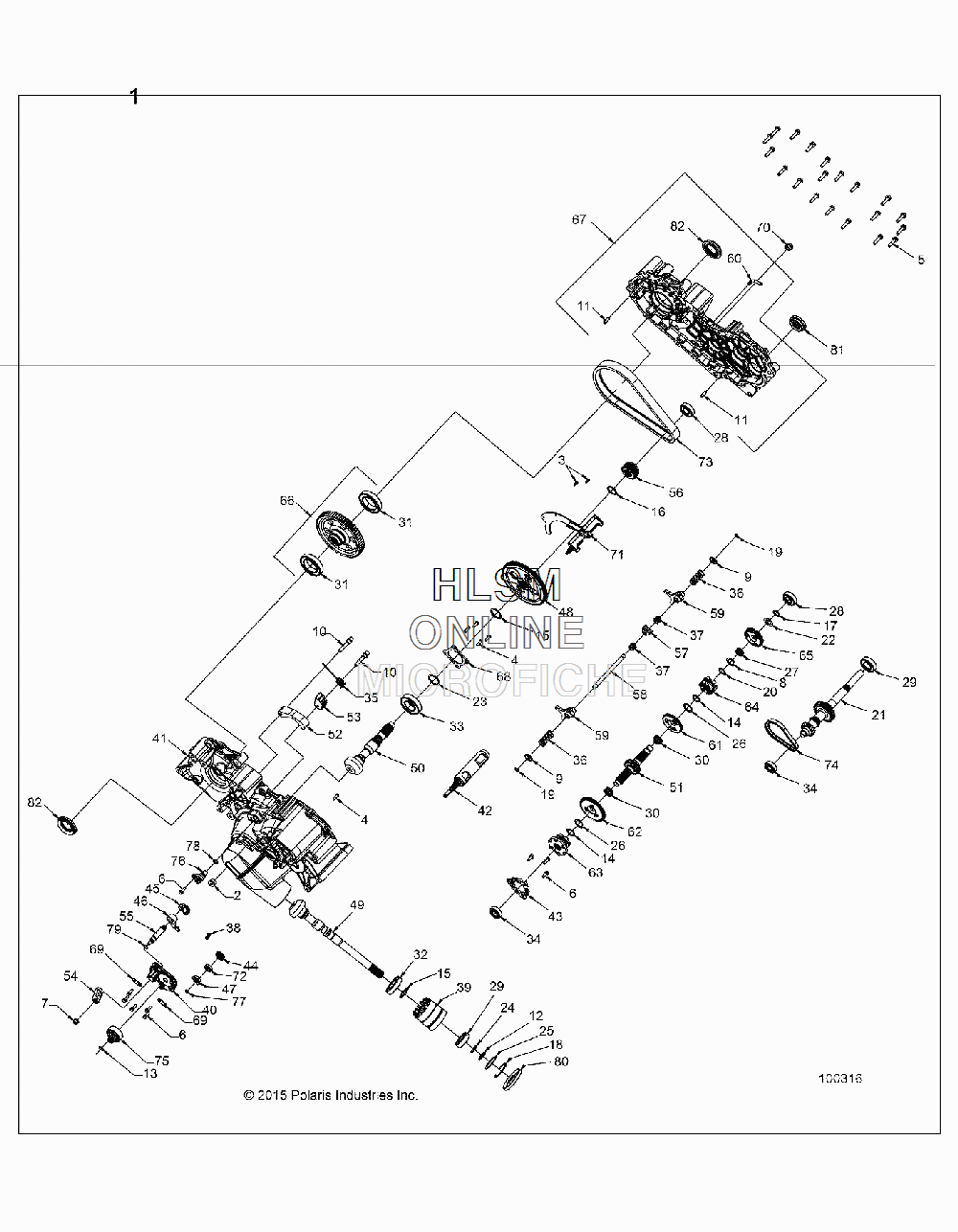

GEARCASE для Polaris SPORTSMAN 570 EFI UTE VELOCITY BLUE [A17SUH57N5] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333572 ASM-TRANS,PDS,NO DIFF,BOSS, SL [INCL. ALL]
    ASM-TRANS,PDS,NO DIFF,BOSS, SL [INCL. ALL]
  • 2
    3234529 PLUG, 3/4-16 HOLLOW HEX
    PLUG, 3/4-16 HOLLOW HEX
  • 3
    3233749 SCREW, TAPPING TORX PH 8-32 X.50
    SCREW, TAPPING TORX PH 8-32 X.50
  • 4
    3234086 SCREW, TORX PAN HD 1/4-20 X 0.75
    SCREW, TORX PAN HD 1/4-20 X 0.75
  • 5
    3234114 SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25
    SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25
  • 6
    3234247 SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75
    SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75
  • 7
    3233961 NUT, LOCK HEX FLANGE NYLON 5/16-24
    NUT, LOCK HEX FLANGE NYLON 5/16-24
  • 8
    3233855 WASHER 1.250 X .876 X .05
    WASHER 1.250 X .876 X .05
  • 9
    3234091 WASHER CUP
    WASHER CUP
  • 10
    3233432 PIN
    PIN
  • 11
    3234244 PIN 5/16 X 1.00
    PIN 5/16 X 1.00
  • 12
    3233106 RING, RETAINING BASIC EXTERNAL .984
    RING, RETAINING BASIC EXTERNAL .984
  • 13
    3233834 RING SNAP
    RING SNAP
  • 14
    3233306 RING, RETAINING
    RING, RETAINING
  • 15
    3233364 RING, RETAINING SHAFT, DIA. 1.375
    RING, RETAINING SHAFT, DIA. 1.375
  • 16
    3233699 RING RTNG, IRR 7200-118
    RING RTNG, IRR 7200-118
  • 17
    3234067 RING, RETAINING BASIC EXTERNAL .787 SHAFT
    RING, RETAINING BASIC EXTERNAL .787 SHAFT
  • 18
    3234269 RING, RETAINING BASIC INTERNAL 2.047
    RING, RETAINING BASIC INTERNAL 2.047
  • 19
    3234090 RING, RETAINING BASIC EXTERNAL .428
    RING, RETAINING BASIC EXTERNAL .428
  • 20
    3234336 RING, RETAINING BASIC EXTERNAL DIA .84
    RING, RETAINING BASIC EXTERNAL DIA .84
  • 21
    3235782 SHAFT, INPUT 39T BOSS
    SHAFT, INPUT 39T BOSS
  • 22
    3233176 WASHER THRUST, 1.270 X .793 X 0.065
    WASHER THRUST, 1.270 X .793 X 0.065
  • 23
    3234271 SHIM 1.700 X 1.385
    SHIM 1.700 X 1.385
  • 24
    3234272 SHIM 1.180 OD X .995 ID
    SHIM 1.180 OD X .995 ID
  • 25
    3234273 SHIM 2.040 OD X 1.63 ID
    SHIM 2.040 OD X 1.63 ID
  • 26
    3234248 WASHER, THRUST 1.300 X .995 X 0.065
    WASHER, THRUST 1.300 X .995 X 0.065
  • 27
    3233009 BEARING, NEEDLE CAGE ASSY
    BEARING, NEEDLE CAGE ASSY
  • 28
    3233018 BEARING, BALL 6204 C3 20X47X14
    BEARING, BALL 6204 C3 20X47X14
  • 29
    3233019 BEARING, BALL 6205 C3 25X52X15
    BEARING, BALL 6205 C3 25X52X15
  • 30
    3233103 BEARING, NEEDLE 25 X 29 X 10
    BEARING, NEEDLE 25 X 29 X 10
  • 31
    3233268 BEARING, BALL 6010 C3 50X80X16
    BEARING, BALL 6010 C3 50X80X16
  • 32
    3233265 BEARING, BALL 6007 C3 35X62X14
    BEARING, BALL 6007 C3 35X62X14
  • 33
    3234065 BEARING, BALL 6207 C3 35X72X17
    BEARING, BALL 6207 C3 35X72X17
  • 34
    3234274 BEARING, BALL 6203 C3 17X40X12
    BEARING, BALL 6203 C3 17X40X12
  • 35
    3233431 TORSION SPRING
    TORSION SPRING
  • 36
    3234078 SPRING, COMPRESSION .92 O.D. X 2.000
    SPRING, COMPRESSION .92 O.D. X 2.000
  • 37
    3234089 SPRING, COMPRESSION .46 I.D. X .73
    SPRING, COMPRESSION .46 I.D. X .73
  • 38
    3234578 SPRING, COMPRESSION DETENT
    SPRING, COMPRESSION DETENT
  • 39
    3234278 TUBE, SNORKEL MACH
    TUBE, SNORKEL MACH
  • 40
    3234188 COVER, SECTOR GEARS MACH
    COVER, SECTOR GEARS MACH
  • 41
    3235606 CASE, RH MACH
    CASE, RH MACH
  • 42
    3234360 DRUM, SHIFT MACH
    DRUM, SHIFT MACH
  • 43
    3233915 PLATE, PARK 12-FACE
    PLATE, PARK 12-FACE
  • 44
    3233839 GEAR, SECTOR 16T
    GEAR, SECTOR 16T
  • 45
    3233832 GEAR, SECTOR 31T
    GEAR, SECTOR 31T
  • 46
    3233829 PAWL, DETENT
    PAWL, DETENT
  • 47
    3233909 STAR, DETENT
    STAR, DETENT
  • 48
    3234062 GEAR OUTPUT 91T, HCR
    GEAR OUTPUT 91T, HCR
  • 49
    3234262 GEAR, 13T SNORKEL
    GEAR, 13T SNORKEL
  • 50
    3234263 PINION, 13T CENTER DRIVE
    PINION, 13T CENTER DRIVE
  • 51
    3234280 SHAFT, REVERSE 26T
    SHAFT, REVERSE 26T
  • 52
    3233433 SHOE, CHAIN TENSIONER
    SHOE, CHAIN TENSIONER
  • 53
    3233434 CAM, CHAIN TENSIONER
    CAM, CHAIN TENSIONER
  • 54
    3234584 BELLCRANK .510 HOLE, 92
    BELLCRANK .510 HOLE, 92
  • 55
    3233831 SHAFT, SHIFT
    SHAFT, SHIFT
  • 56
    3234060 SPROCKET, 19T
    SPROCKET, 19T
  • 57
    3234073 COLLAR, SHIFT
    COLLAR, SHIFT
  • 58
    3234079 RAIL, SHIFT SHAFT
    RAIL, SHIFT SHAFT
  • 59
    3234077 FORK, SHIFT
    FORK, SHIFT
  • 60
    3234230 TUBE, VENT 90 -1/4" HOSE
    TUBE, VENT 90 -1/4" HOSE
  • 61
    3234290 SPROCKET, 38T 6-FACE
    SPROCKET, 38T 6-FACE
  • 62
    3234291 GEAR, 33T 6-FACE
    GEAR, 33T 6-FACE
  • 63
    3234257 DOG, L/P
    DOG, L/P
  • 64
    3234258 ENGAGEMENT DOG, 6-FACE
    ENGAGEMENT DOG, 6-FACE
  • 65
    3235783 GEAR, 35T HELICAL
    GEAR, 35T HELICAL
  • 66
    3235604 SUB-ASSY SHAFT, 59T FINAL OUTPUT WITH BEARING
    SUB-ASSY SHAFT, 59T FINAL OUTPUT WITH BEARING
  • 67
    3235907 SUBASSEMBLY, LH COVER, PDS EAGLE
    SUBASSEMBLY, LH COVER, PDS EAGLE
  • 68
    3234063 COVER, BEARING, CENTER DRIVE
    COVER, BEARING, CENTER DRIVE
  • 69
    3235350 BRACKET WIRE HARNESS
    BRACKET WIRE HARNESS
  • 70
    3233794 PLUG, 3/4-16 HOLLOW HEX
    PLUG, 3/4-16 HOLLOW HEX
  • 71
    3234061 DEFLECTOR, OIL
    DEFLECTOR, OIL
  • 72
    3235243 SPACER
    SPACER
  • 73
    3234057 CHAIN, SILENT 17 WIDE X 1.0 X 86P
    CHAIN, SILENT 17 WIDE X 1.0 X 86P
  • 74
    3234264 CHAIN .25P X .40W X 50L
    CHAIN .25P X .40W X 50L
  • 75
    7661999 SWITCH, ROTARY 2 PIN RESISTIVE
    SWITCH, ROTARY 2 PIN RESISTIVE
  • 76
    4013908 SENSOR SPEED
    SENSOR SPEED
  • 77
    3233076 O-RING, 2-012
    O-RING, 2-012
  • 78
    3234302 O-RING
    O-RING
  • 79
    3233869 O-RING, -014
    O-RING, -014
  • 80
    3234113 SEAL, TRIPLE LIP 25 X 80 X 10
    SEAL, TRIPLE LIP 25 X 80 X 10
  • 81
    3234851 SEAL, TRIPLE LIP 25 X 47 VITON
    SEAL, TRIPLE LIP 25 X 47 VITON
  • 82
    3235830 SEAL, DUAL LIP VITON 40X70X7
    SEAL, DUAL LIP VITON 40X70X7
