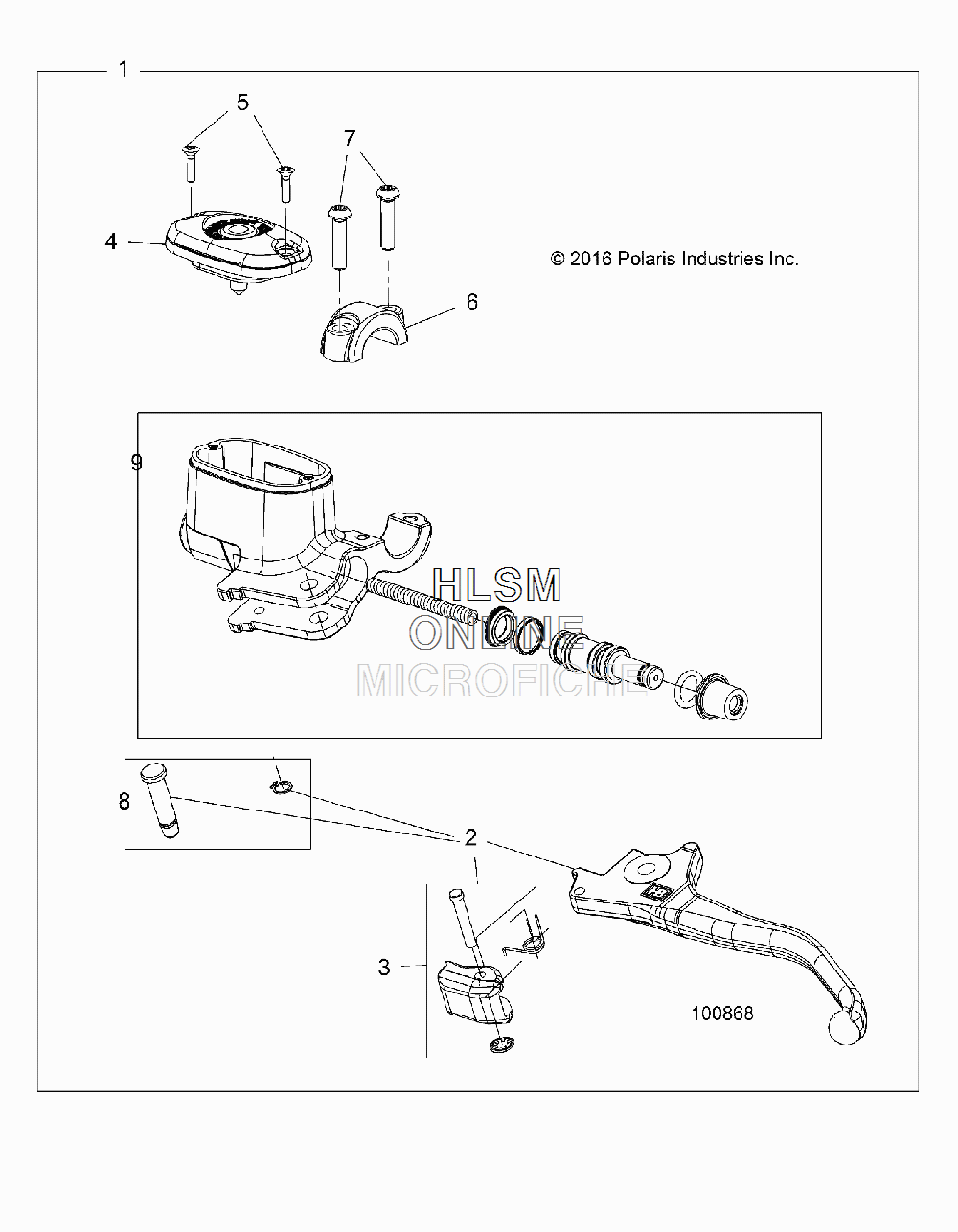

BRAKE - FRONT BRAKE MASTER CYLINDER W/ LEVER (FROM 1/24/2017) для Polaris SPORTSMAN 570 EFI UTE VELOCITY BLUE [A17SUH57N5] - 2017 года выпуска`
-
№АртикулНазвание
-
12010440 ASM., MASTER CYLINDER [INCL. ALL]ASM., MASTER CYLINDER [INCL. ALL]
-
22203053 KIT, LEVER, PARK BRAKE LEVER [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]KIT, LEVER, PARK BRAKE LEVER [INCL. BRAKE LEVER, PARK LEVER, PINS, SPRING, SNAP RINGS]
-
32203054 KIT, SUB ASM., PARK LEVER [INCL. PIN, LEVER, SPRING, RING]KIT, SUB ASM., PARK LEVER [INCL. PIN, LEVER, SPRING, RING]
-
42203055 KIT, MASTER CYLINDER COVER [INCL., COVER W/SEAL]KIT, MASTER CYLINDER COVER [INCL., COVER W/SEAL]
-
52203056 KIT, SCREW, COVER [INCL. 2 SCREWS]KIT, SCREW, COVER [INCL. 2 SCREWS]
-
62203093 KIT, CLAMP [INCL. CLAMP ONLY]KIT, CLAMP [INCL. CLAMP ONLY]
-
72203058 KIT, SCREW, CLAMP [INCL. 2 SCREWS]KIT, SCREW, CLAMP [INCL. 2 SCREWS]
-
82203059 KIT, PIN PIVOT, AND RING, SNAP [INCL. BRAKE LEVER, PIN, SNAP RING]KIT, PIN PIVOT, AND RING, SNAP [INCL. BRAKE LEVER, PIN, SNAP RING]
-
92206551 KIT, PISTON [INCL. PISTON, SEALS, SPRING, BODY]KIT, PISTON [INCL. PISTON, SEALS, SPRING, BODY]
