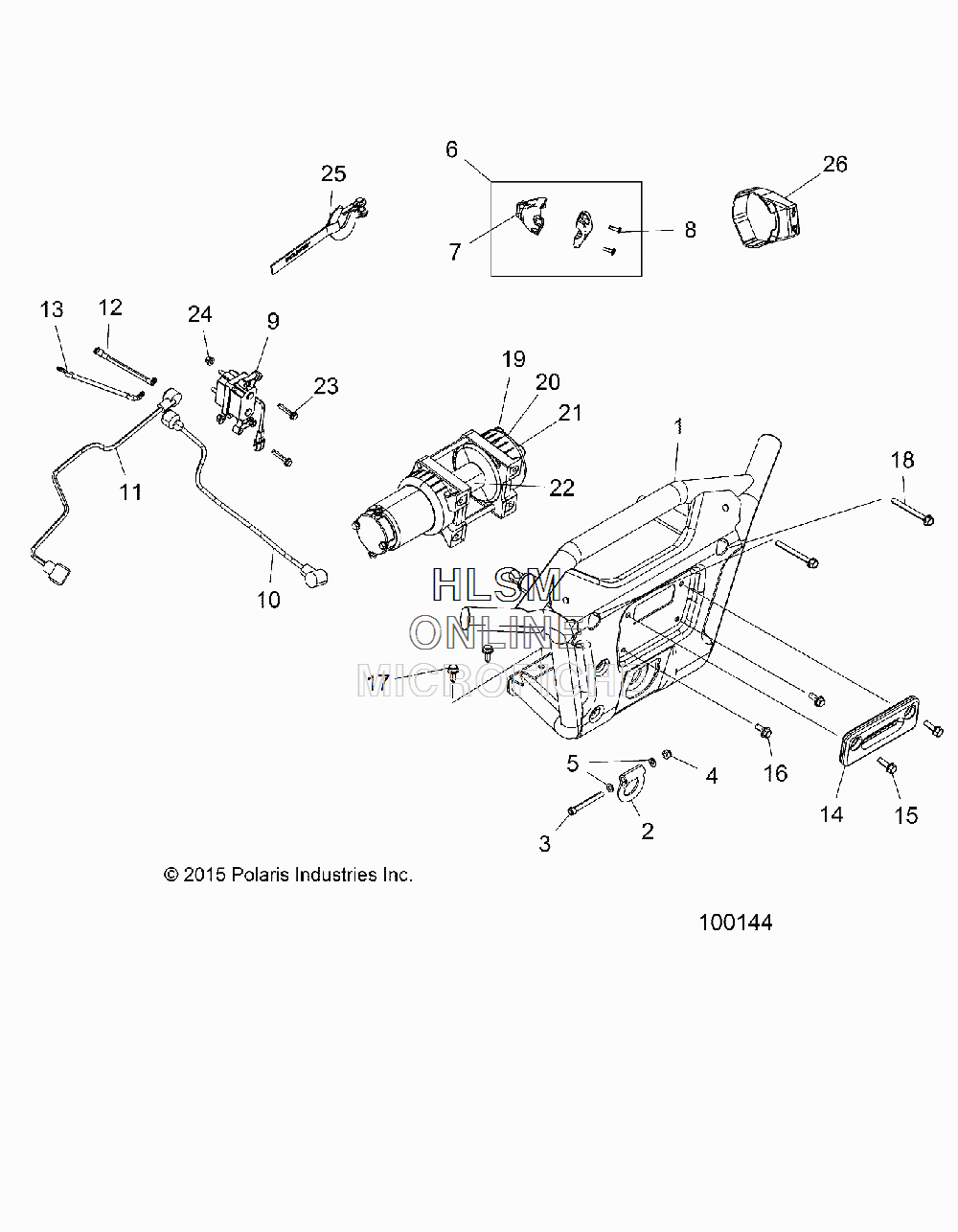

WINCH для Polaris SPORTSMAN 1000 HIGH LIFTER VELOCITY BLUE [A17SXM95AM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021183-689 WELD-BUMPER,FRT,VELOCITY BLUE
    WELD-BUMPER,FRT,VELOCITY BLUE
  • 2
    5632152-689 FORGING-D-RING,VELOCITY BLUE
    FORGING-D-RING,VELOCITY BLUE
  • 3
    7518911 SCR-5/16-18X2 5/8 HXSOC HDCAP
    SCR-5/16-18X2 5/8 HXSOC HDCAP
  • 4
    7542324 NUT-5/16-18 NYLOK-Y
    NUT-5/16-18 NYLOK-Y
  • 5
    7552901 WASHER-5/16-SPRING LK-MED-Y
    WASHER-5/16-SPRING LK-MED-Y
  • 6
    2205636 K-WINCH SWITCH
    K-WINCH SWITCH
  • 7
    2412948 SWITCH-WINCH,ATV
    SWITCH-WINCH,ATV
  • 8
    7518238 SCR-10X5/8-HI/LO,PN-T25,TRX-M
    SCR-10X5/8-HI/LO,PN-T25,TRX-M
  • 9
    4013465 CONTACTOR-WINCH
    CONTACTOR-WINCH
  • 10
    4013468-280 CABLE-WINCH,YELLOW 6 GA,280MM
    CABLE-WINCH,YELLOW 6 GA,280MM
  • 11
    4013469-280 CABLE-WINCH,BLUE 6 GA,280MM
    CABLE-WINCH,BLUE 6 GA,280MM
  • 12
    4014511-470 CABLE-BATT,6GA,BK,FLAT,85,M6
    CABLE-BATT,6GA,BK,FLAT,85,M6
  • 13
    4015517-510 CABLE-BAT,6GA,RD,FLT,85,1C,510
    CABLE-BAT,6GA,RD,FLT,85,1C,510
  • 14
    5633396 FAIRLEAD-CAST
    FAIRLEAD-CAST
  • 15
    7516734 SCR-M8X1.25X25-HX/FL-Y/D
    SCR-M8X1.25X25-HX/FL-Y/D
  • 16
    7518450 BOLT-M8X1.25X20,HXHDFLG,W/PTCH
    BOLT-M8X1.25X20,HXHDFLG,W/PTCH
  • 17
    7518555 BOLT-M8X1.25X20,HXFLG
    BOLT-M8X1.25X20,HXFLG
  • 18
    7519217 SCR-HXFL M8X1.25X80 8.8 ZOD
    SCR-HXFL M8X1.25X80 8.8 ZOD
  • 19
    2205933 WINCH-POLARIS,3.5,HL
    WINCH-POLARIS,3.5,HL
  • 20
    2205265 K-SVC,HANDLE,HD WINCH
    K-SVC,HANDLE,HD WINCH
  • 21
    2205497 K-SVC,HANDLE,WINCH,INT CAM
    K-SVC,HANDLE,WINCH,INT CAM
  • 22
    2878888 ROPE-WINCH,SYNTHETIC,50'
    ROPE-WINCH,SYNTHETIC,50'
  • 23
    7519202 SCREW
    SCREW
  • 24
    7547274 NUT
    NUT
  • 25
    2411836 HOOK-LATCH,WINCH
    HOOK-LATCH,WINCH
  • 26
    5415687 COVER-MOLD,SWITCH,WINCH
    COVER-MOLD,SWITCH,WINCH
