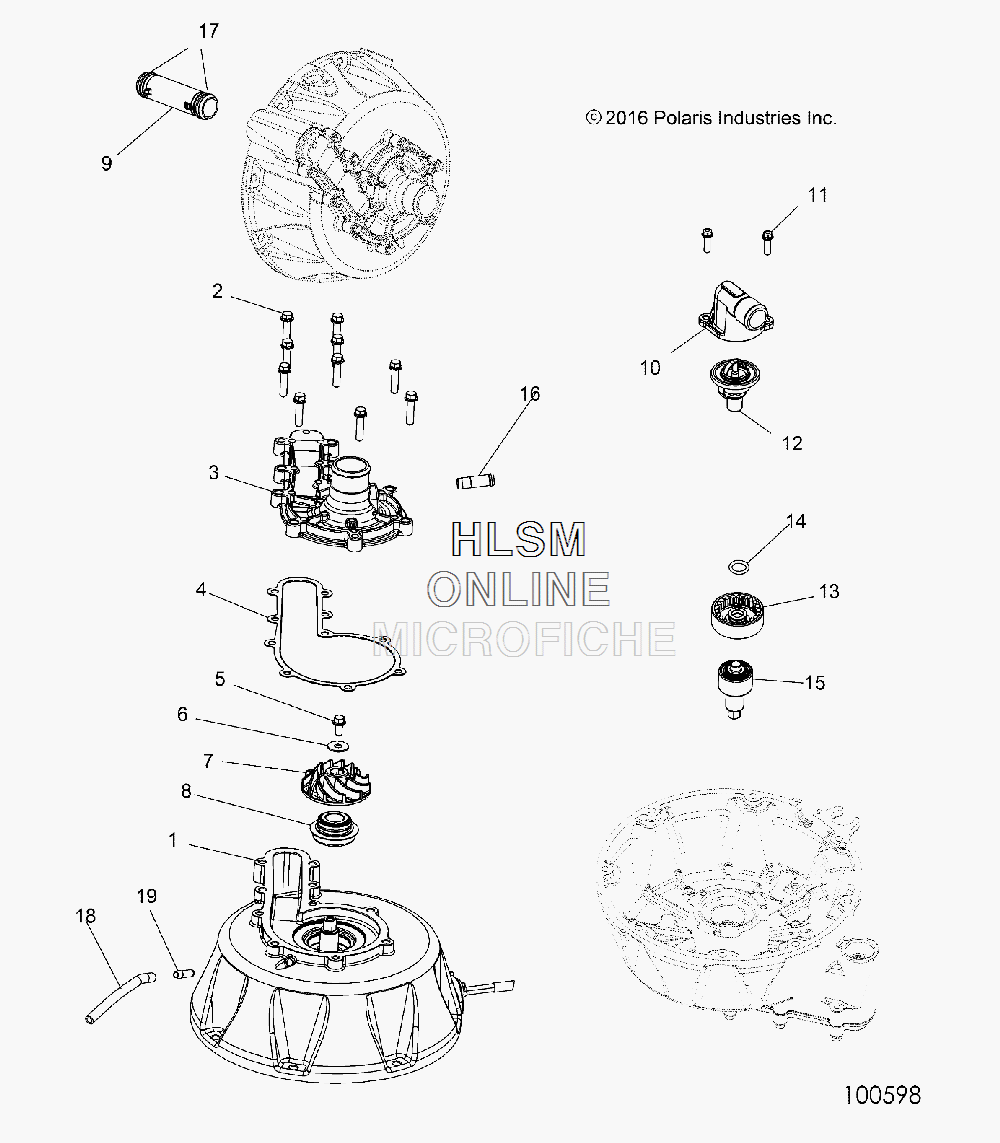

COOLING SYSTEM - WATER PUMP для Polaris SPORTSMAN 1000 HIGH LIFTER VELOCITY BLUE [A17SXM95AM] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5140038 COVER-STATOR W/ WATERPUMP
    COVER-STATOR W/ WATERPUMP
  • 2
    7518855 SCREW
    SCREW
  • 3
    2204955 COVER, WATER PUMP [INCL. COVER, FITTING, GASKET]
    COVER, WATER PUMP [INCL. COVER, FITTING, GASKET]
  • 4
    5412954 GASKET, COVER
    GASKET, COVER
  • 5
    7518854 BOLT
    BOLT
  • 6
    7556451 WASHER, FLAT
    WASHER, FLAT
  • 7
    5632427 IMPELLER, WATER PUMP, CAST
    IMPELLER, WATER PUMP, CAST
  • 8
    3610136 SEAL
    SEAL
  • 9
    5334925 TUBE, WATER TRANSFER [INCL. O-RINGS]
    TUBE, WATER TRANSFER [INCL. O-RINGS]
  • 10
    5632606 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 11
    7518576 SCREW
    SCREW
  • 12
    7052561 THERMOSTAT
    THERMOSTAT
  • 12
    5413948 SEAL, THERMOSTAT
    SEAL, THERMOSTAT
  • 13
    5140079 COUPLER-SPLINE INT WP BEARING
    COUPLER-SPLINE INT WP BEARING
  • 14
    5414286 O-RING
    O-RING
  • 15
    3514921 BEARING-W/SHAFT,WATERPUMP OPC
    BEARING-W/SHAFT,WATERPUMP OPC
  • 17
    5412955 O-RING
    O-RING
  • 18
    8360077 TUBING, NYLON
    TUBING, NYLON
  • 19
    7052463 FITTING
    FITTING
