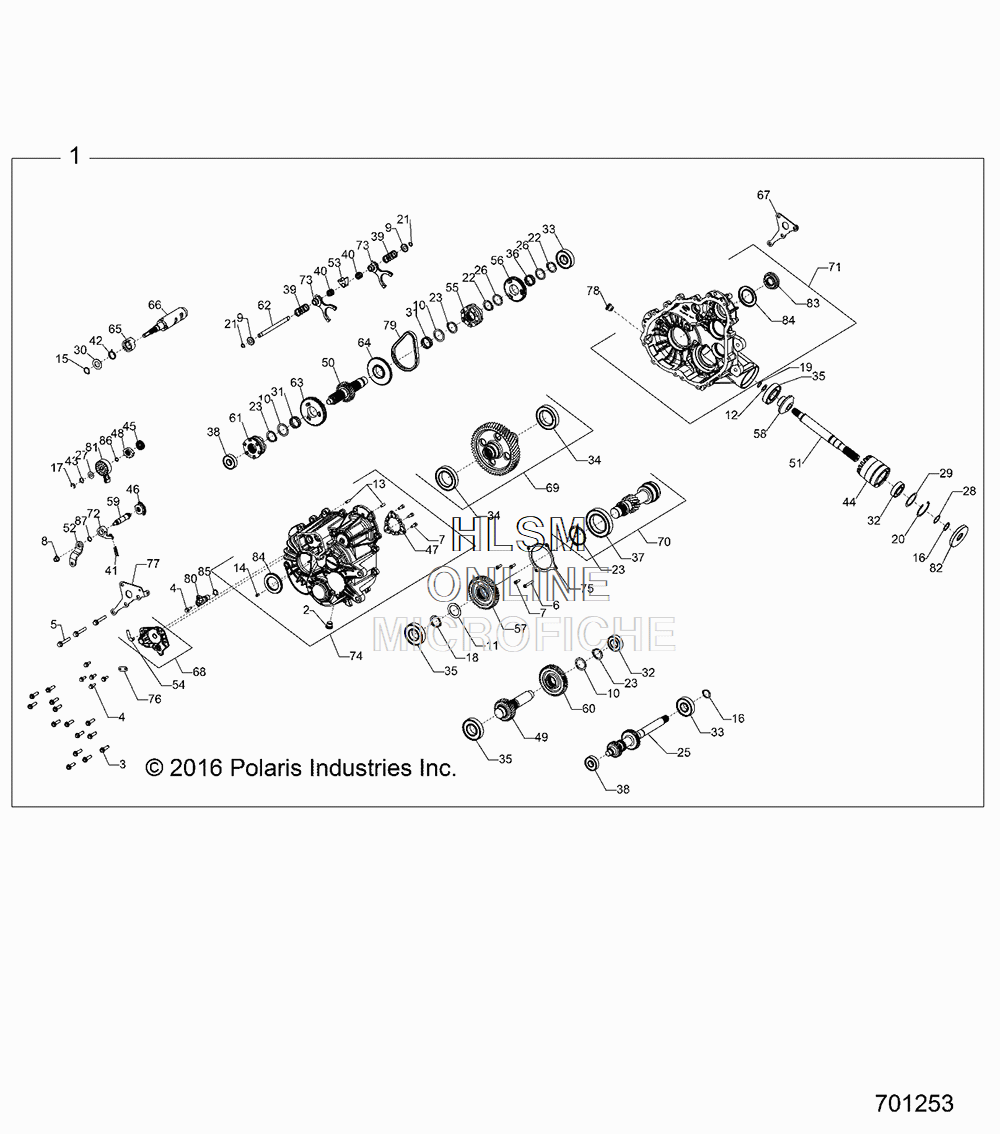

MAIN GEARCASE для Polaris RZR S 570 EPS (INDY RED) [Z17VJE57AR] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1333664 ASM-GEARCASE [INCL. ALL]
    ASM-GEARCASE [INCL. ALL]
  • 2
    3234756 PLUG M18 X 1.5, MAGNETIC
    PLUG M18 X 1.5, MAGNETIC
  • 3
    3234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
    SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
  • 4
    3235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20
    SCREW, HEX FLANGE HEAD M6 X 1 X 20
  • 5
    3235207 SCREW HEX FLANGE M8 X 50
    SCREW HEX FLANGE M8 X 50
  • 6
    3235208 SCREW, SOCKET HEAD CAP, M6 X 1 X 40
    SCREW, SOCKET HEAD CAP, M6 X 1 X 40
  • 7
    3235332 SCREW, SOCKET HEAD CAP, M6 X 1 X 18
    SCREW, SOCKET HEAD CAP, M6 X 1 X 18
  • 8
    3235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25
    NUT, LOCK HEX FLANGE NYLON M8 X 1.25
  • 9
    3234091 WASHER CUP
    WASHER CUP
  • 10
    3235211 WASHER 32.3 X 42 X 1.5
    WASHER 32.3 X 42 X 1.5
  • 11
    3235212 WASHER 35.6 X 50 X 1.5
    WASHER 35.6 X 50 X 1.5
  • 12
    3235213 WASHER 17.3 X 25 X 1.5
    WASHER 17.3 X 25 X 1.5
  • 13
    3234330 PIN, DOWEL 6 X 20
    PIN, DOWEL 6 X 20
  • 14
    7043746 PIN, SPRING SLOTTED 6 X 12
    PIN, SPRING SLOTTED 6 X 12
  • 15
    3233045 RING, RETAINING BASIC EXTERNAL 0.75
    RING, RETAINING BASIC EXTERNAL 0.75
  • 16
    3233106 RING, RETAINING BASIC EXTERNAL 0.984
    RING, RETAINING BASIC EXTERNAL 0.984
  • 17
    3233834 RING SNAP
    RING SNAP
  • 18
    3233364 RING, RETAINING SHAFT, DIA. 1.375
    RING, RETAINING SHAFT, DIA. 1.375
  • 19
    3234318 RING, RETAINING EXTERNAL SHR-66
    RING, RETAINING EXTERNAL SHR-66
  • 20
    3234269 RING, RETAINING BASIC INTERNAL 2.047
    RING, RETAINING BASIC INTERNAL 2.047
  • 21
    3234090 RING, RETAINING BASIC EXTERNAL 0.428
    RING, RETAINING BASIC EXTERNAL 0.428
  • 22
    3234205 RING, RETAINING
    RING, RETAINING
  • 23
    3235214 RING, EXTERNAL SNAP 32 X 2.4
    RING, EXTERNAL SNAP 32 X 2.4
  • 25
    3235710 INPUT, SHAFT BOSS L/W UTILITY
    INPUT, SHAFT BOSS L/W UTILITY
  • 26
    3233378 WASHER, THRUST 1.187 X 1.5 X 0.06
    WASHER, THRUST 1.187 X 1.5 X 0.06
  • 27
    3234642 WASHER, THRUST 0.446 X 0.88 X 0.025
    WASHER, THRUST 0.446 X 0.88 X 0.025
  • 28
    3234272 SHIM 1.18 OD X 0.995 ID
    SHIM 1.18 OD X 0.995 ID
  • 29
    3234273 SHIM 2.04 OD X 1.63 ID
    SHIM 2.04 OD X 1.63 ID
