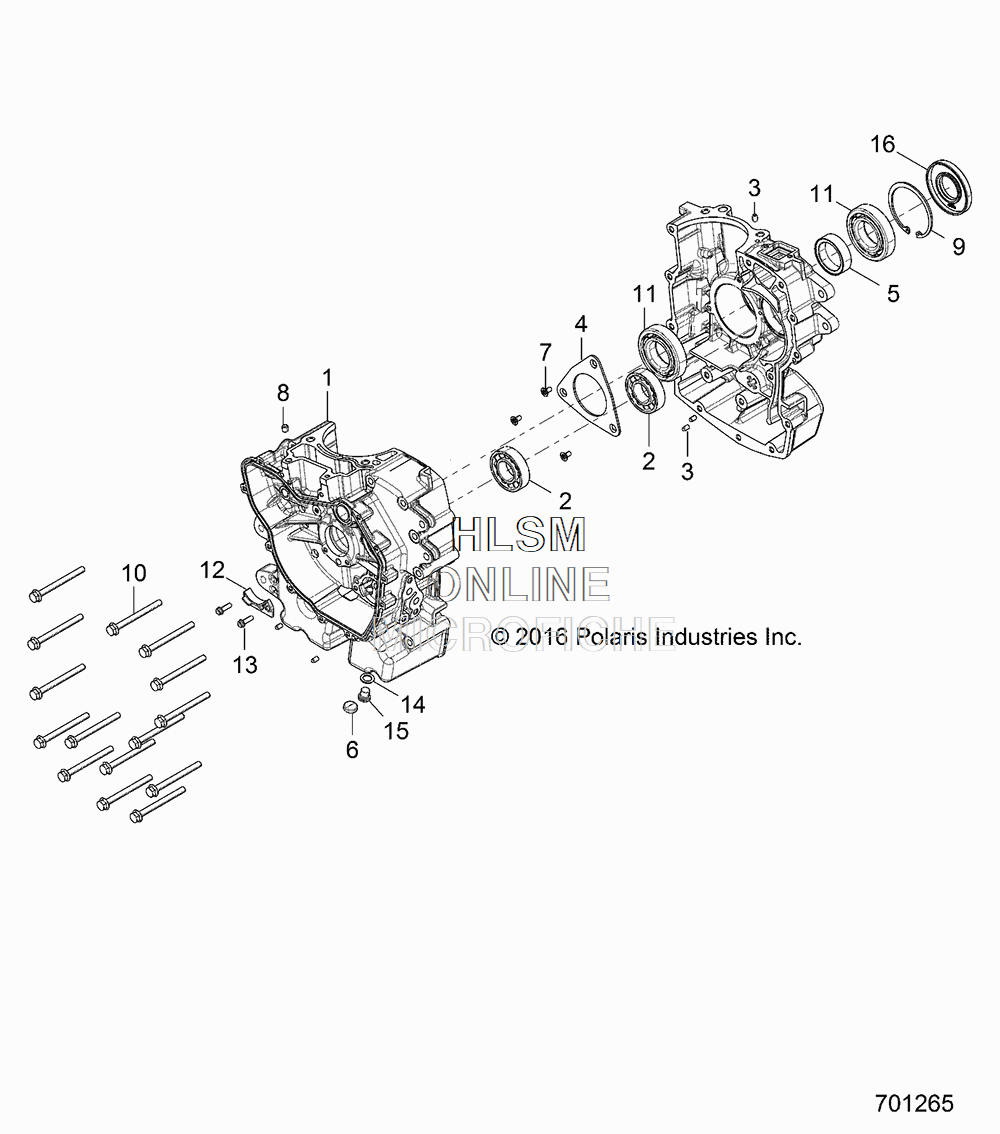

CRANKCASE для Polaris RZR S 570 EPS (INDY RED) [Z17VJE57AR] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2206362 KIT, CRANKCASE [INCL. 1-13]
    KIT, CRANKCASE [INCL. 1-13]
  • 2
    3514426 BEARING, BALL
    BEARING, BALL
  • 3
    5136879 PIN, DOWEL
    PIN, DOWEL
  • 4
    5256915 PLATE-BEARING RETAINER
    PLATE-BEARING RETAINER
  • 5
    5137838 SPACER, BEARING
    SPACER, BEARING
  • 6
    7051530 PLUG, EXPANSION
    PLUG, EXPANSION
  • 7
    7517598 SCREW
    SCREW
  • 8
    7661977 DOWEL
    DOWEL
  • 9
    7710660 RING, SNAP
    RING, SNAP
  • 10
    7520104 SCREW
    SCREW
  • 11
    3514389 BEARING, BALL
    BEARING, BALL
  • 12
    3022711 GUIDE-CAM DRIVE, LOWER
    GUIDE-CAM DRIVE, LOWER
  • 13
    7518576 SCR-HXFL-M6X1.0X20 8.8 ZY3
    SCR-HXFL-M6X1.0X20 8.8 ZY3
  • 14
    5812232 WASHER, COPPER
    WASHER, COPPER
  • 15
    7052306 PLUG, SOCKET
    PLUG, SOCKET
  • 16
    3610171 SEAL, CRANKSHAFT
    SEAL, CRANKSHAFT
