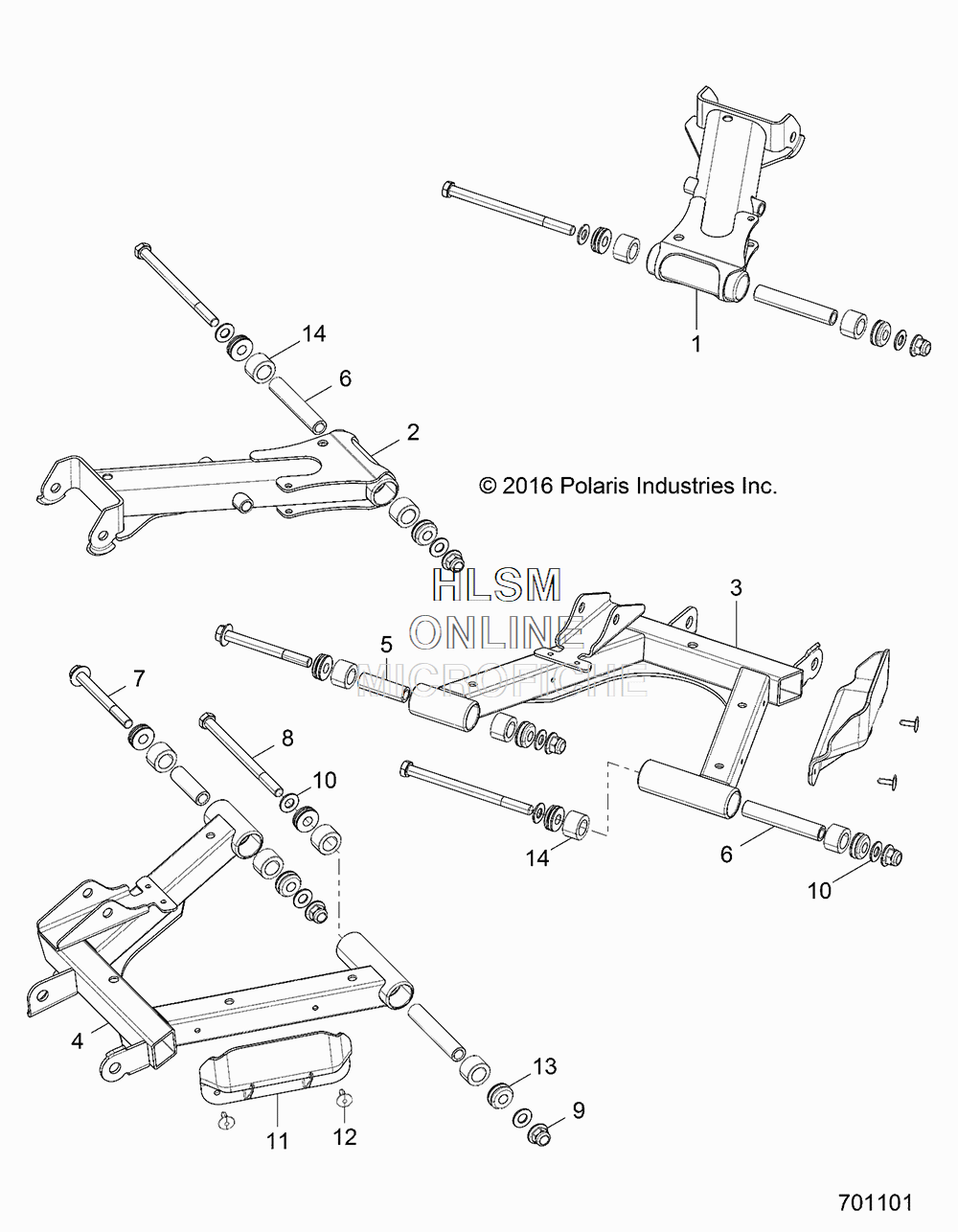

REAR CONTROL ARMS для Polaris RZR 4 900 EPS (VELOCITY BLUE) [Z17VCE87AB] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1021412-458 WELD-A-ARM,REAR,UPR,LEFT HAND,60,BLK
    WELD-A-ARM,REAR,UPR,LEFT HAND,60,BLK
  • 2
    1021413-458 WELD-A-ARM,REAR,UPR,RIGHT HAND,60,BLK
    WELD-A-ARM,REAR,UPR,RIGHT HAND,60,BLK
  • 3
    1021414-458 WELD-A-ARM,REAR,LWR,LEFT HAND,60,BLK
    WELD-A-ARM,REAR,LWR,LEFT HAND,60,BLK
  • 4
    1021415-458 WELD-A-ARM,REAR,LWR,RIGHT HAND,60,BLK
    WELD-A-ARM,REAR,LWR,RIGHT HAND,60,BLK
  • 5
    5139966 SHAFT-PIVOT,SHORT,M10
    SHAFT-PIVOT,SHORT,M10
  • 6
    5139967 SHAFT-PIVOT,LONG,M10
    SHAFT-PIVOT,LONG,M10
  • 7
    7519043 SCREW, HEX FLANGE
    SCREW, HEX FLANGE
  • 8
    7519897 SCREW
    SCREW
  • 9
    7547333 NUT
    NUT
  • 10
    7556153 WASHER
    WASHER
  • 11
    5451336-070 SHIELD-CV,REAR,BLK
    SHIELD-CV,REAR,BLK
  • 12
    7621467 RIVET
    RIVET
  • 13
    1543611 ASM-PIVOT CAP,SEALED,M10
    ASM-PIVOT CAP,SEALED,M10
  • 14
    5452233 BUSHING-STANDARD,SUSP,M10
    BUSHING-STANDARD,SUSP,M10
